Disassembly and Assembly

DISASSEMBLY / ASSEMBLY

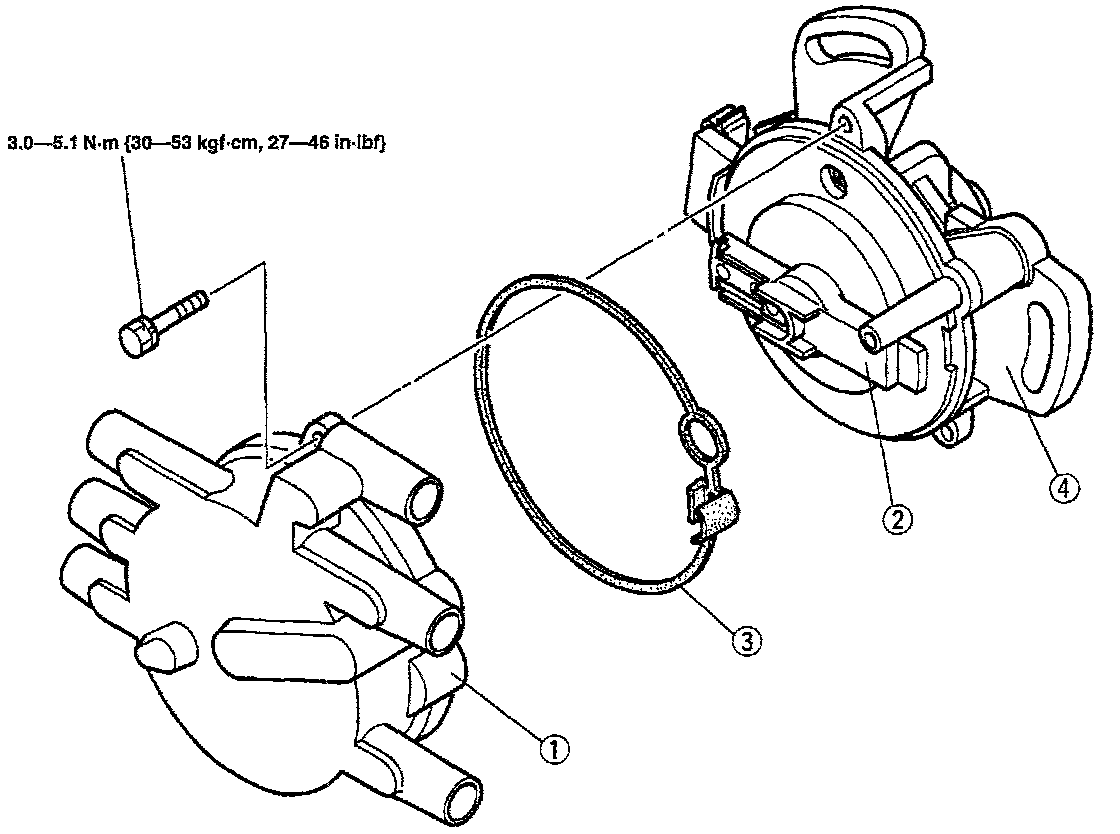

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.

Distributor KL:

1. Cap
2. Rotor
3. Packing
4. Distributor

NOTE: (Incorporates camshaft position sensor, ignition control module, and ignition coil).
