Scan Tool Testing and Procedures

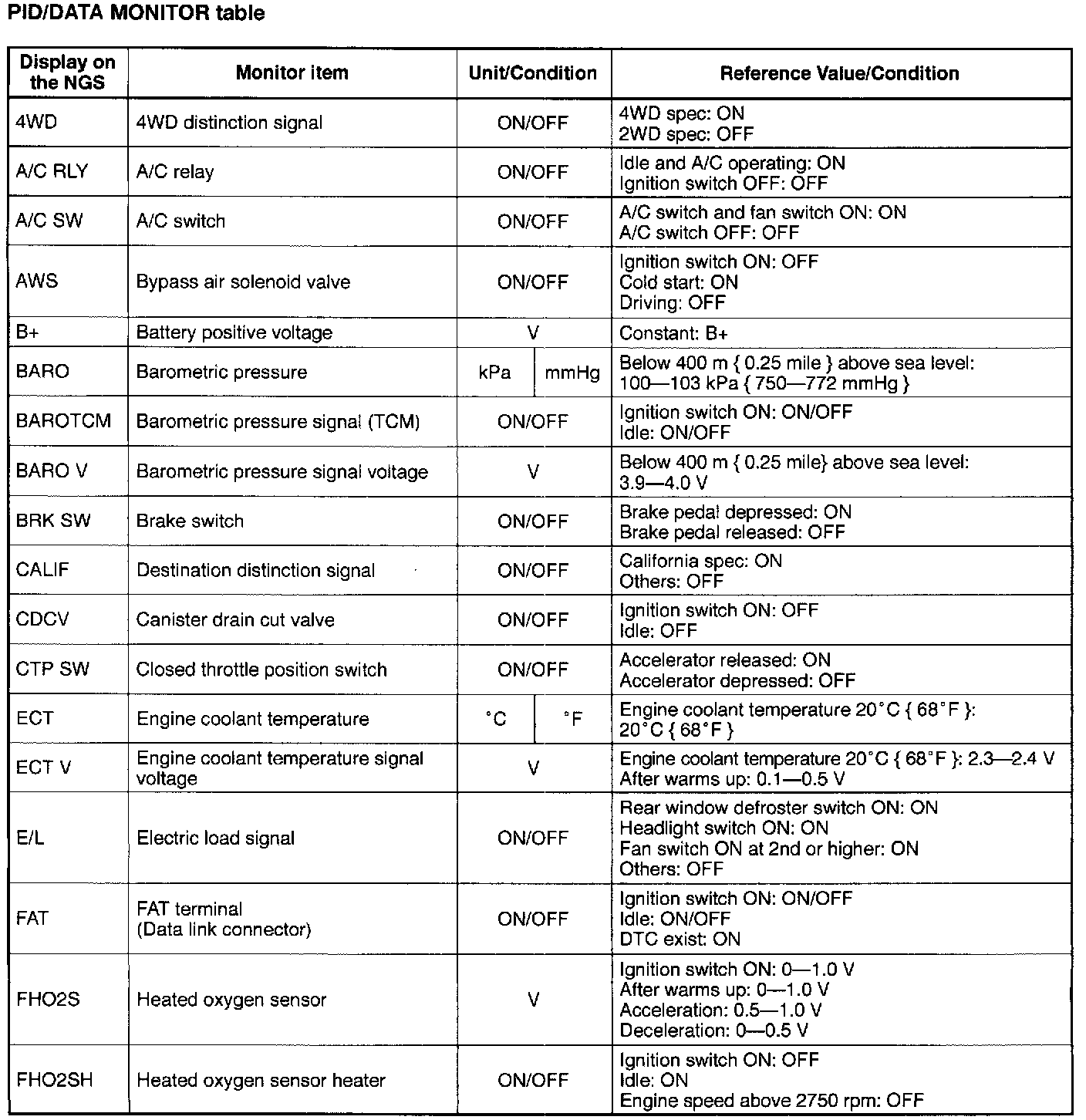

PID/Data Monitor Table Part 1 Of 3:

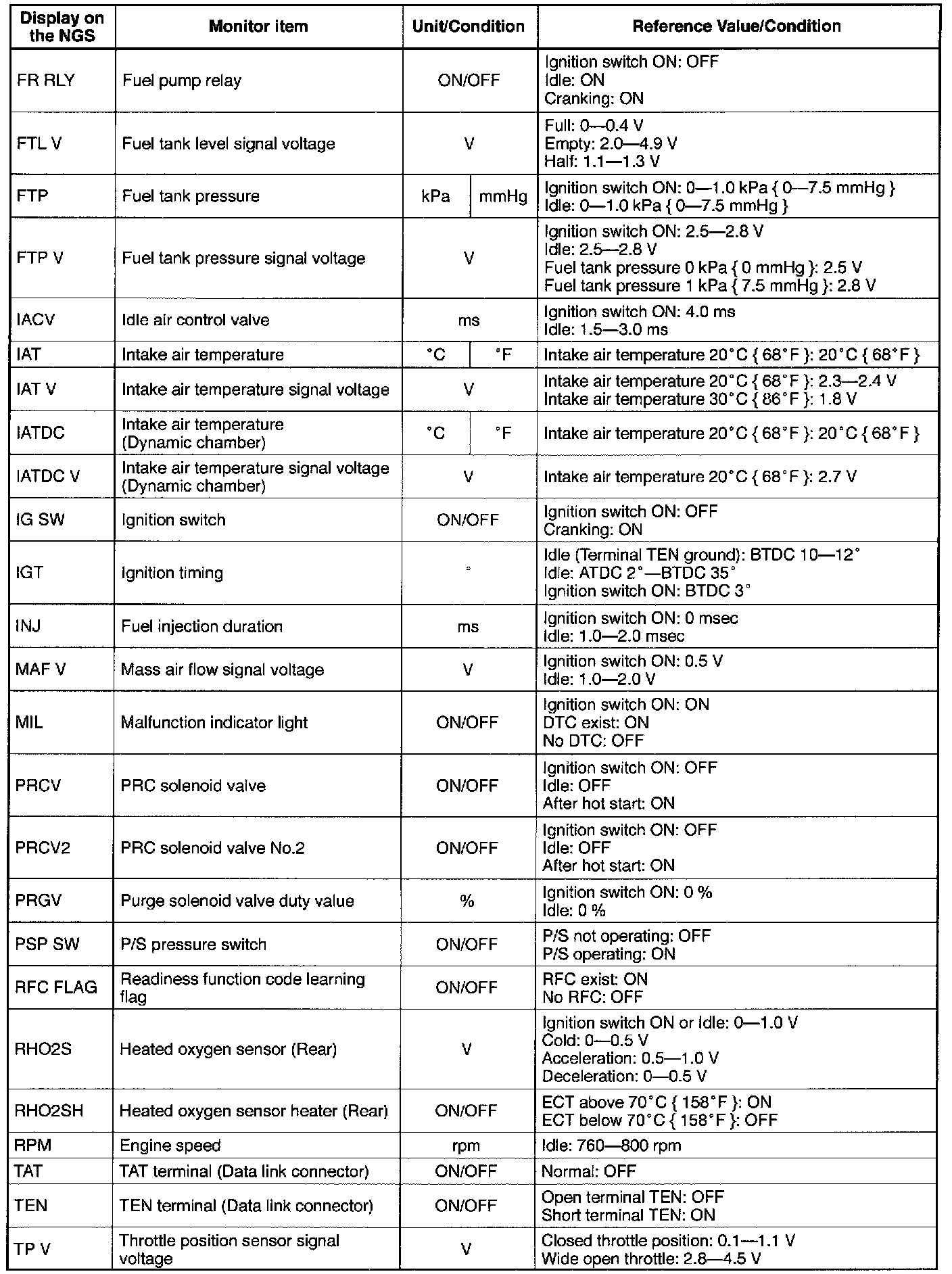

PID/Data Monitor Table Part 2 Of 3:




PID/Data Monitor Table Part 3 Of 3:




PID/Data Monitor Table
