Distributor: Service and Repair

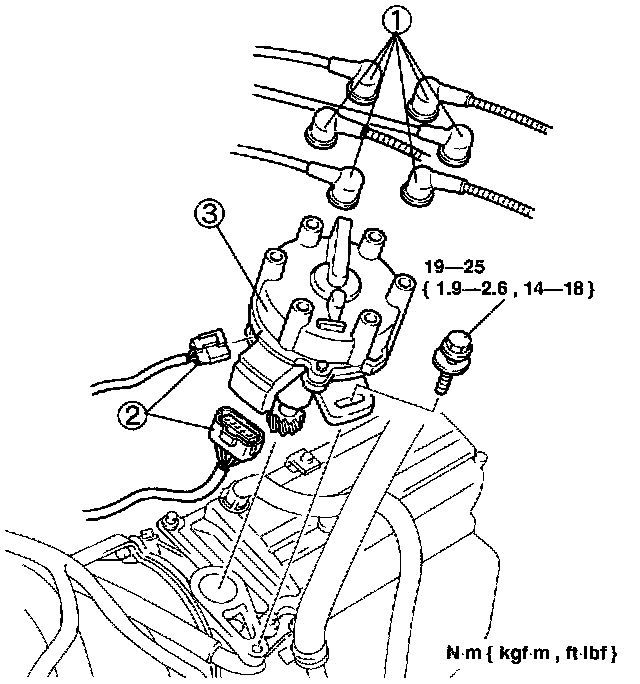

Distributor Removal / Installation
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal indicated in the table.
(1) High-tension lead
(2) Connector
(3) Distributor





Verify that the No.1 cylinder is at top dead center and align the distributor matching marks. After installing the distributor, adjust the ignition timing.




Distributor Disassembly / Assembly
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly indicated in the table.
(1) Cap
(2) Rotor
(3) Distributor set
