Abs Control Module

ABS control module is located behind left side of dash. Unless indicated otherwise, test with ignition on and ABS control module connector connected. Measure voltage between ground and applicable terminal of ABS control module connector. If voltage is not as specified, check appropriate component listed under INSPECTION POINT. See Fig 1 -8. If components are okay, replace ABS control module.

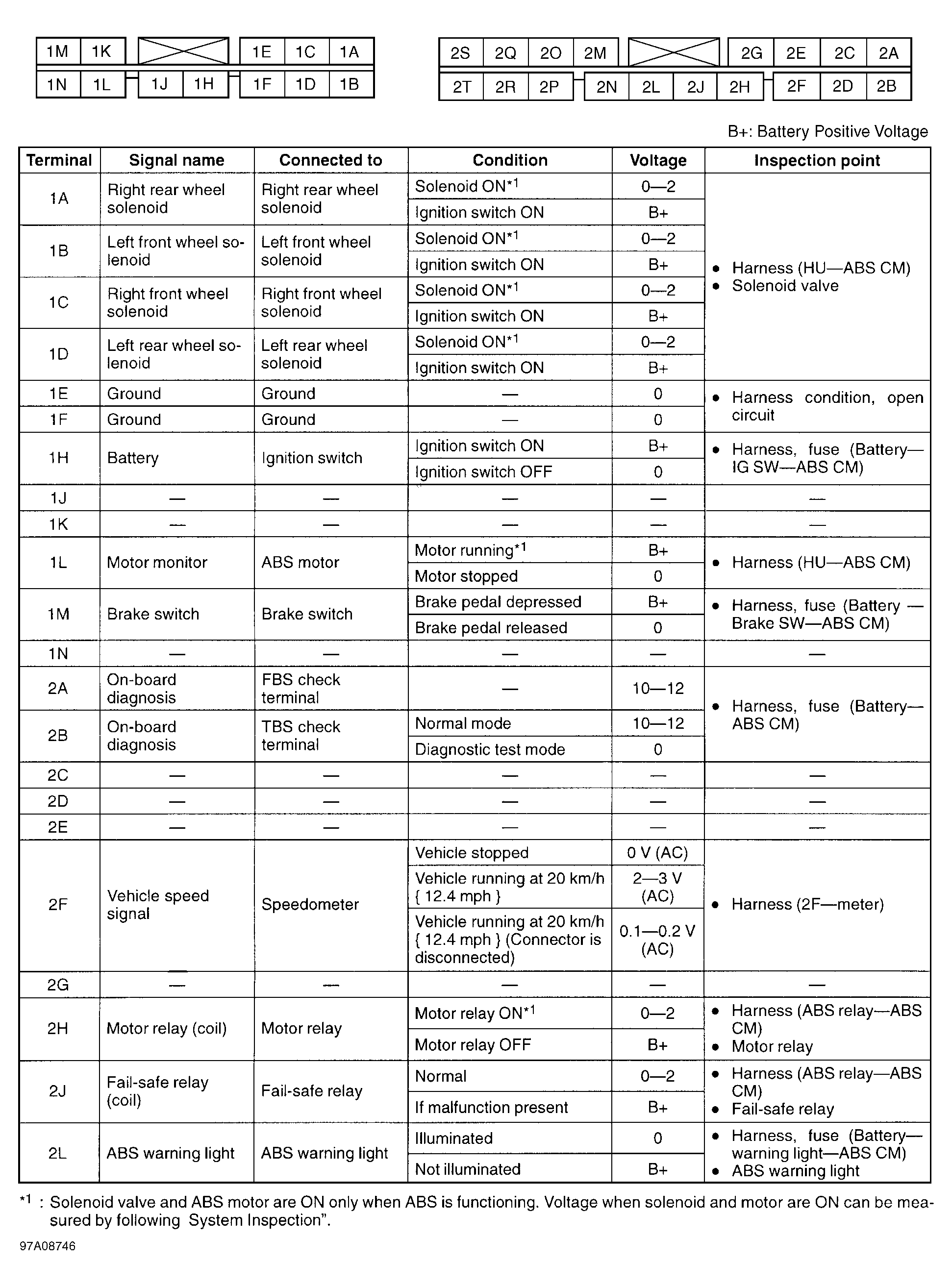

Fig 1: Testing ABS Control Module (MX-6 & 626 - 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

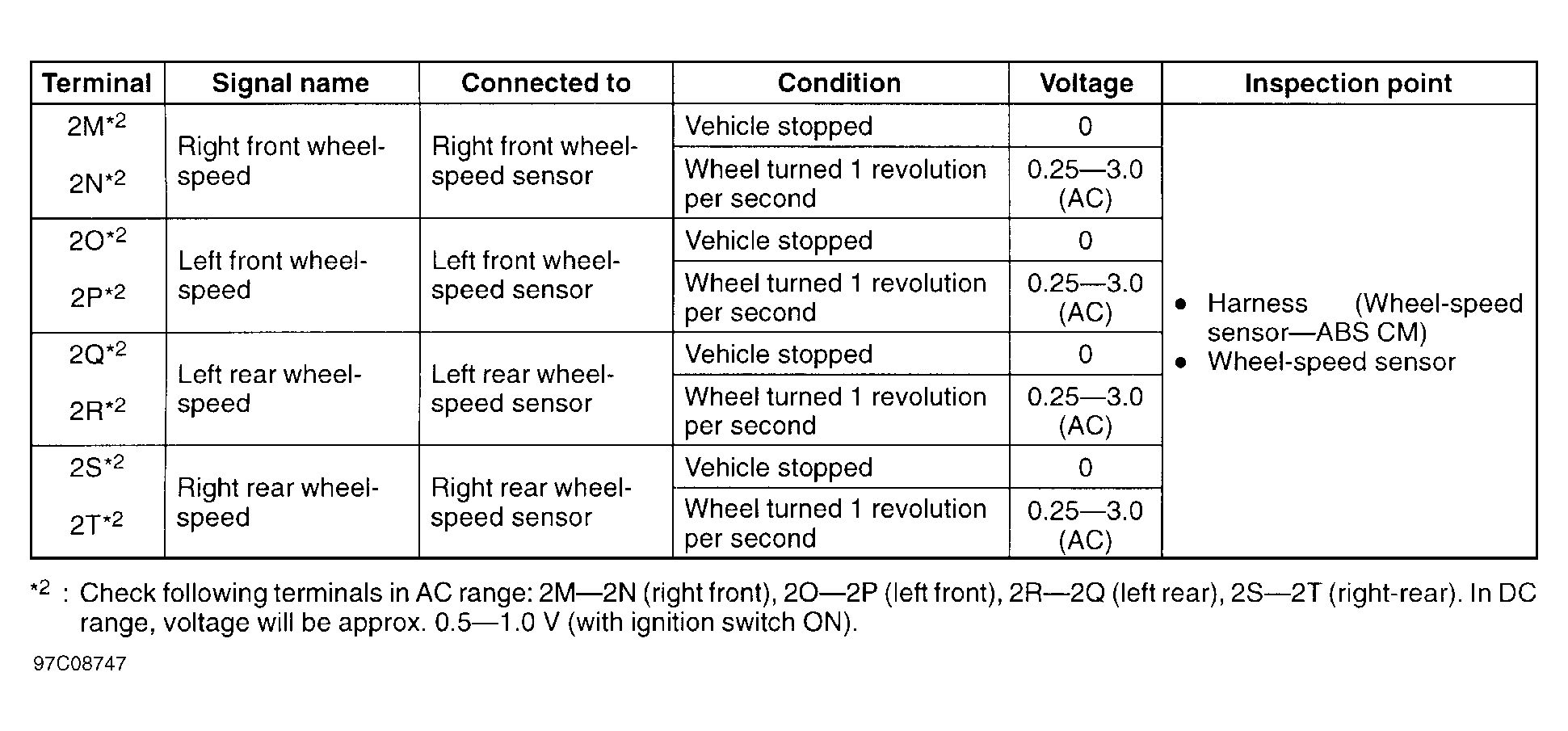

Fig 2: Testing ABS Control Module (MX-6 & 626 - 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

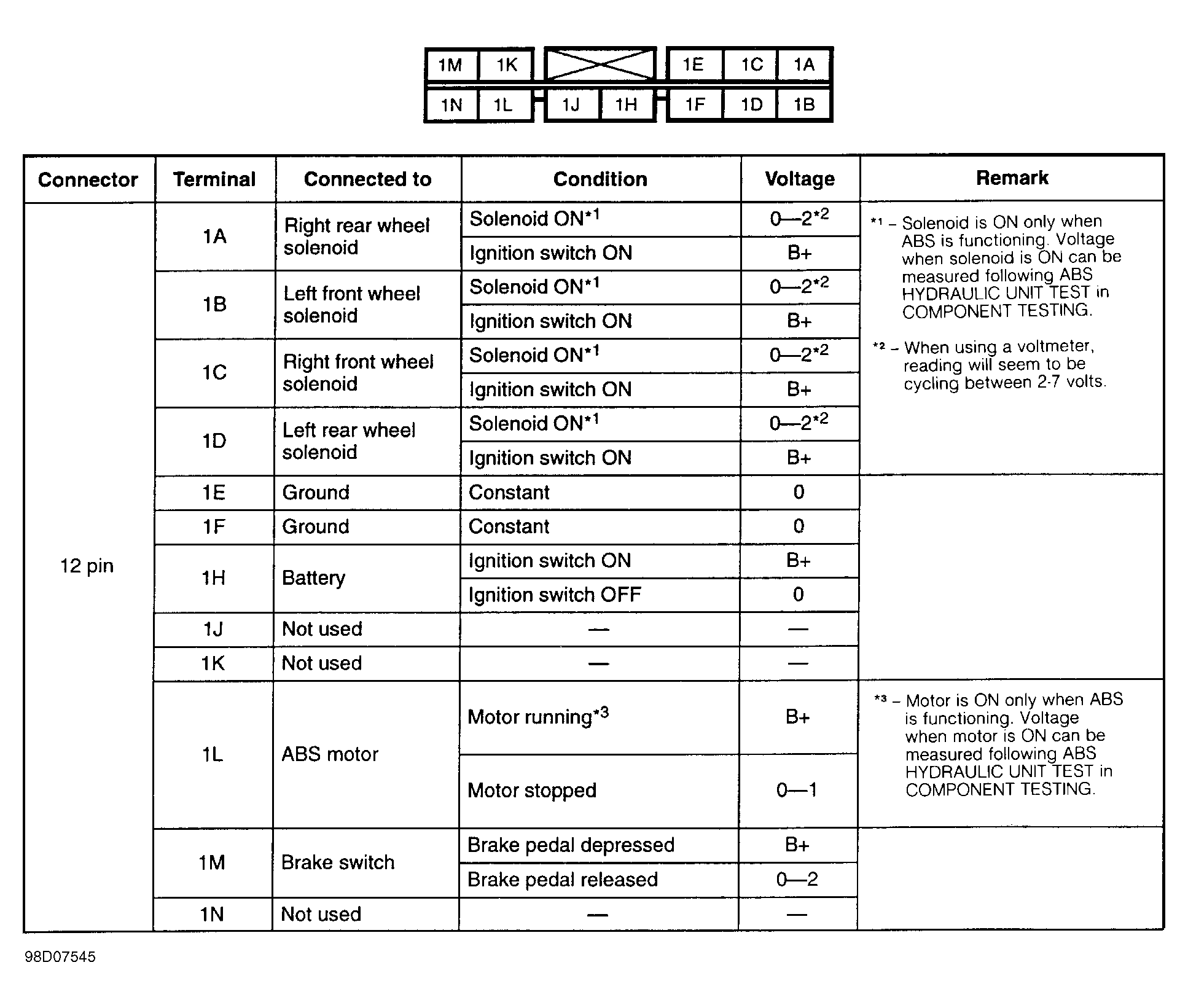

Fig 3: Testing ABS Control Module (Protege - 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

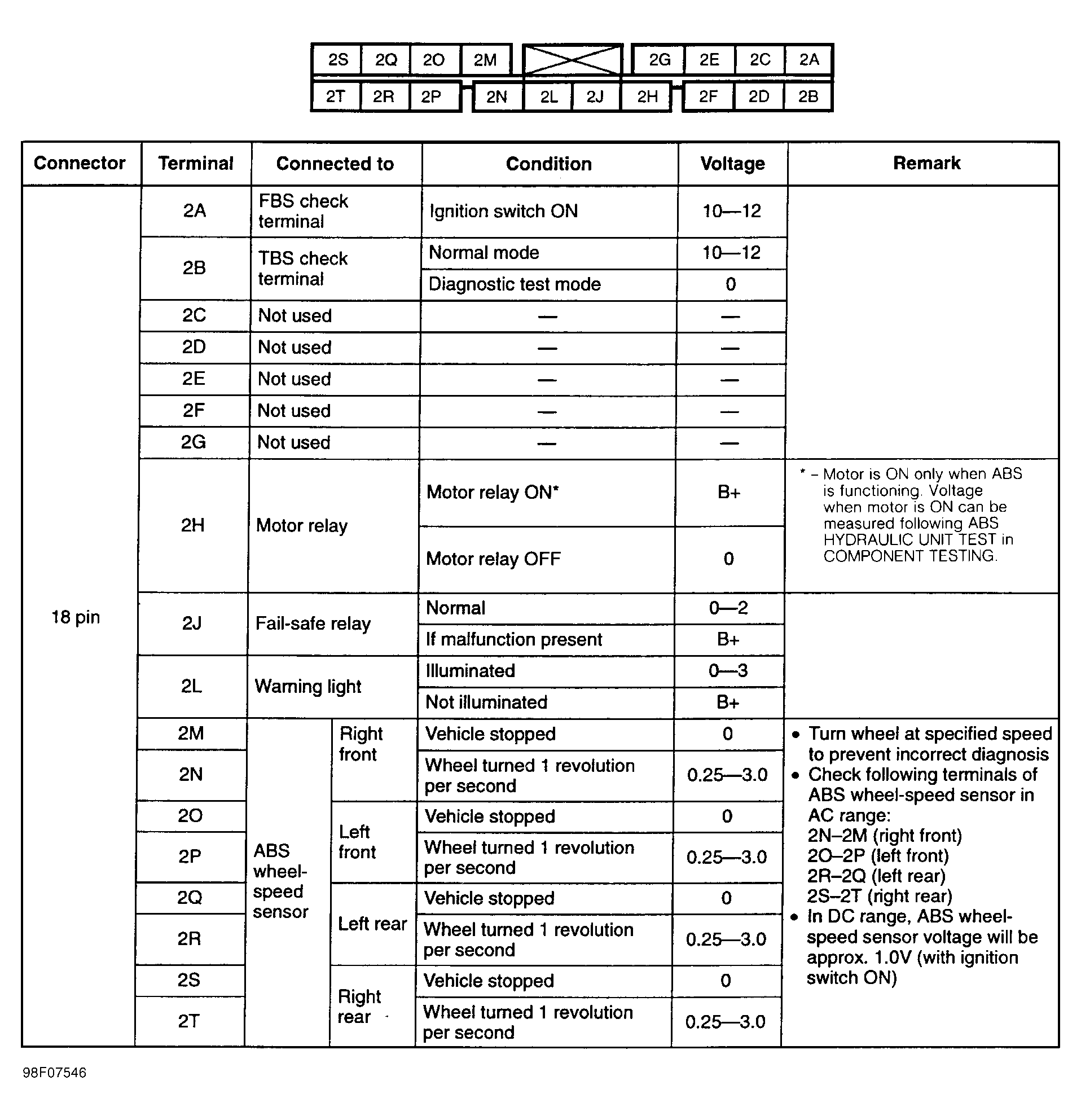

Fig 4: Testing ABS Control Module (Protege - 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
