Cruise Control Module: Testing and Inspection

Inspection
1. Pull out the cruise control module with the cruise control module connector connected.
2. Measure the voltage at the cruise control module terminals as indicated.
3. If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
4. If the parts and wiring harnesses are OK but the system still does not work properly, replace the cruise control module.

Part 1 Of 2:

Part 2 Of 2:

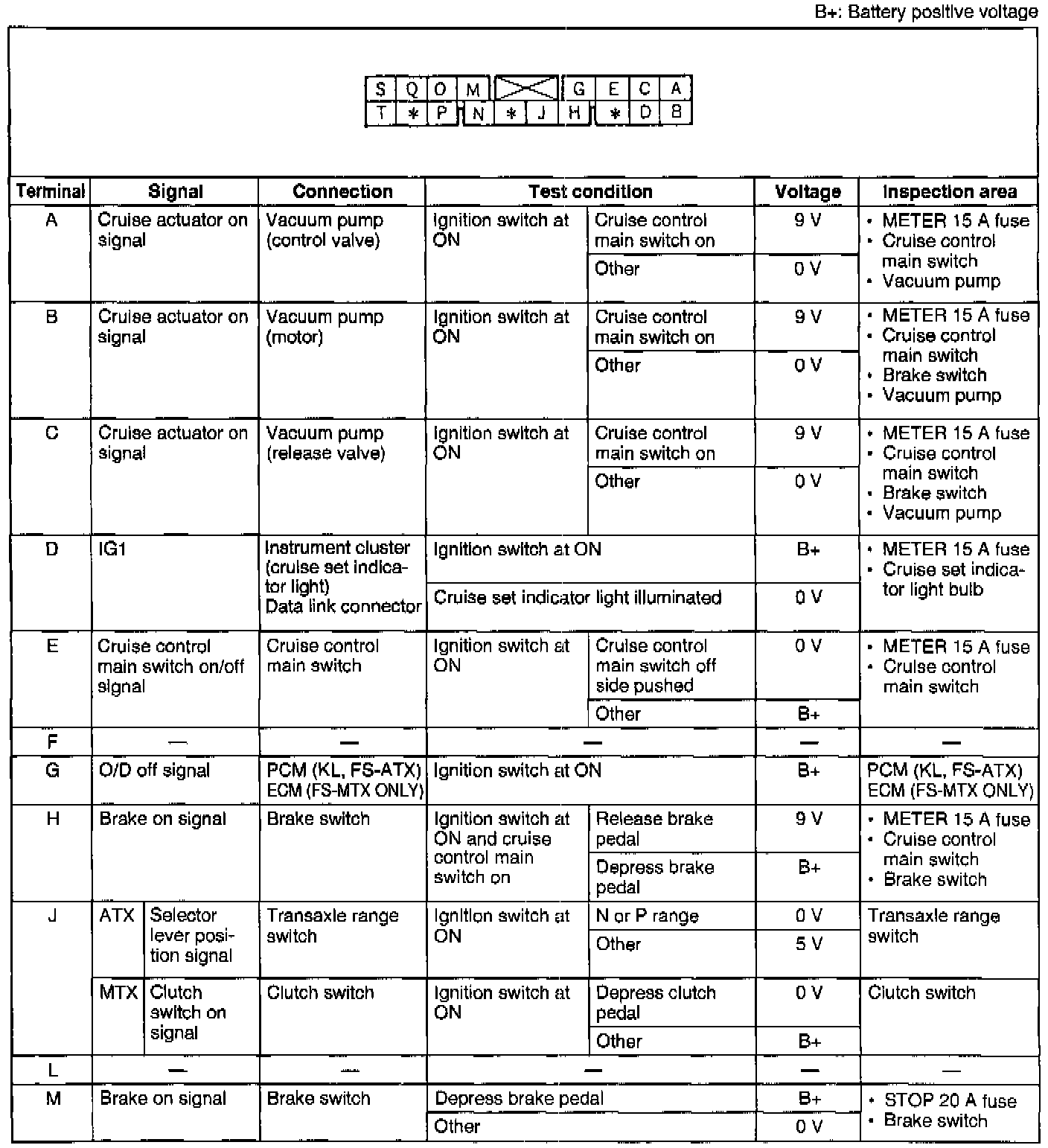

Terminal voltage list
