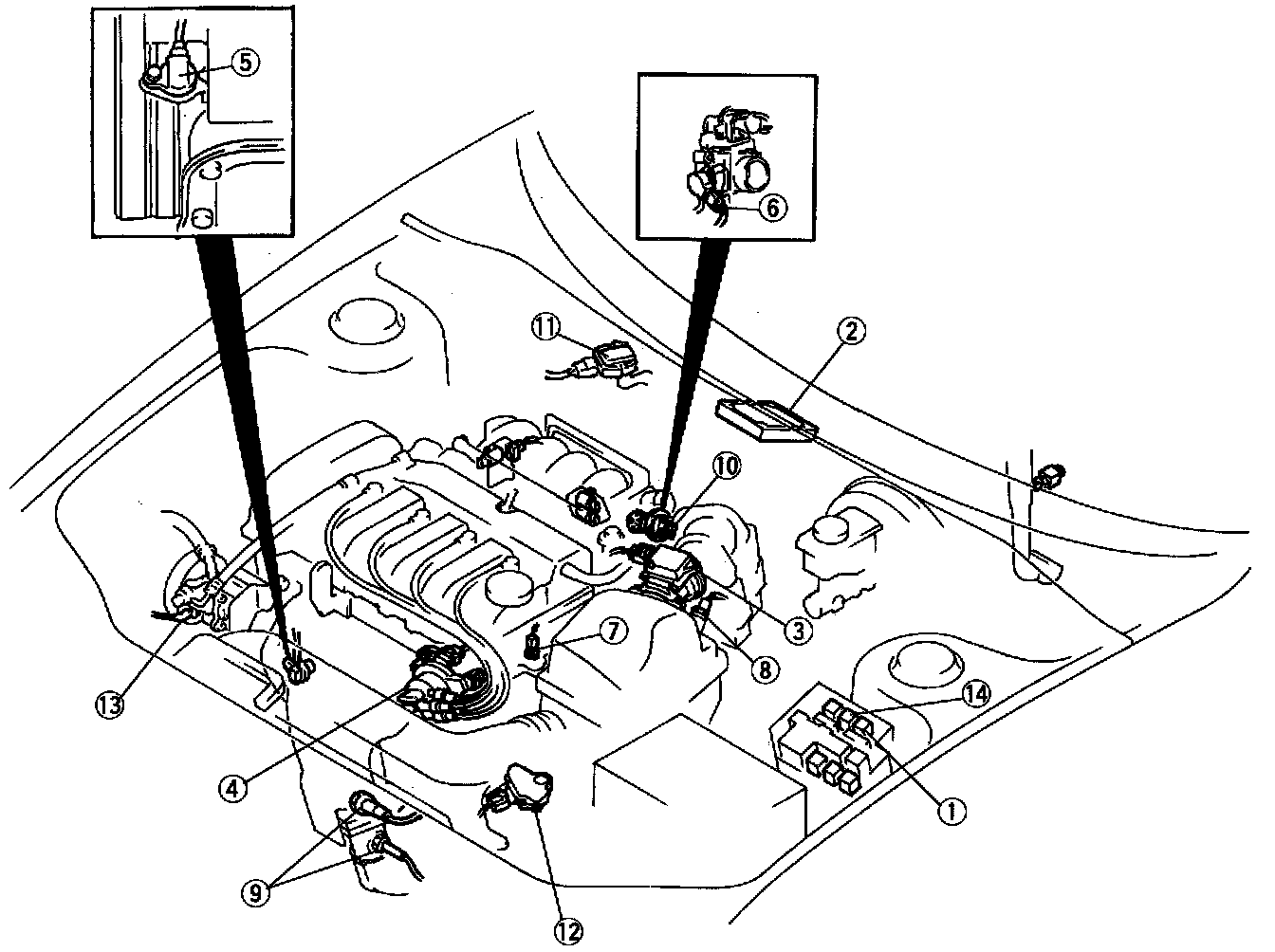

Air Flow Meter/Sensor: Locations

1. Fuel pump relay
2. Powertrain control module
3. Mass air flow sensor
4. Camshaft position sensor
5. Crankshaft position sensor
6. Throttle position sensor
7. Engine coolant temperature sensor
8. Intake air temperature sensor
9. Heated oxygen sensor
10. EGR valve position sensor
11. EGR boost sensor
12. Transaxle range switch
13. P/S pressure switch
14. Main relay
