With M/T

PCM Terminal Voltage (Reference)

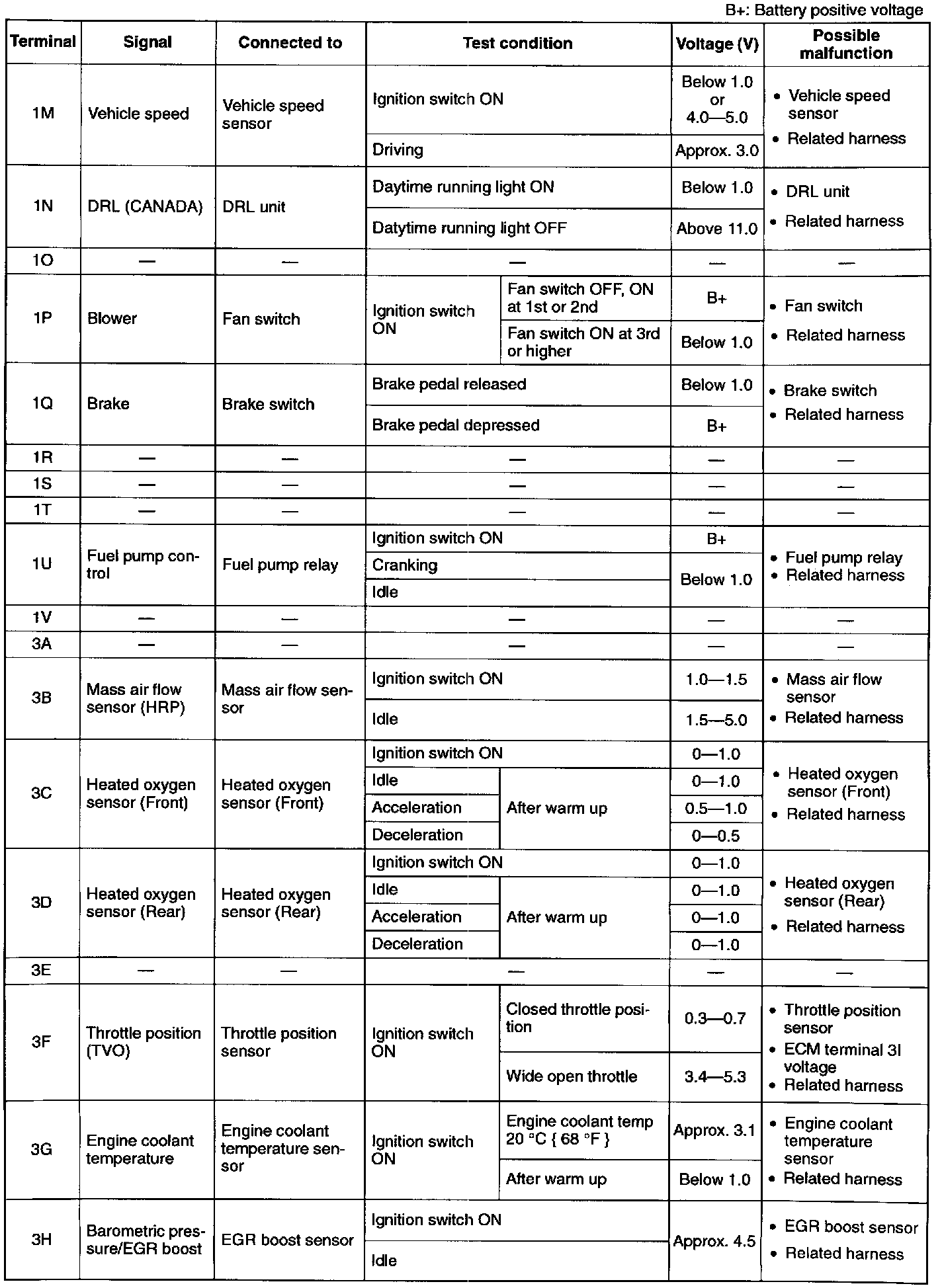

PCM Pin-Out Explanation (1 Of 4):

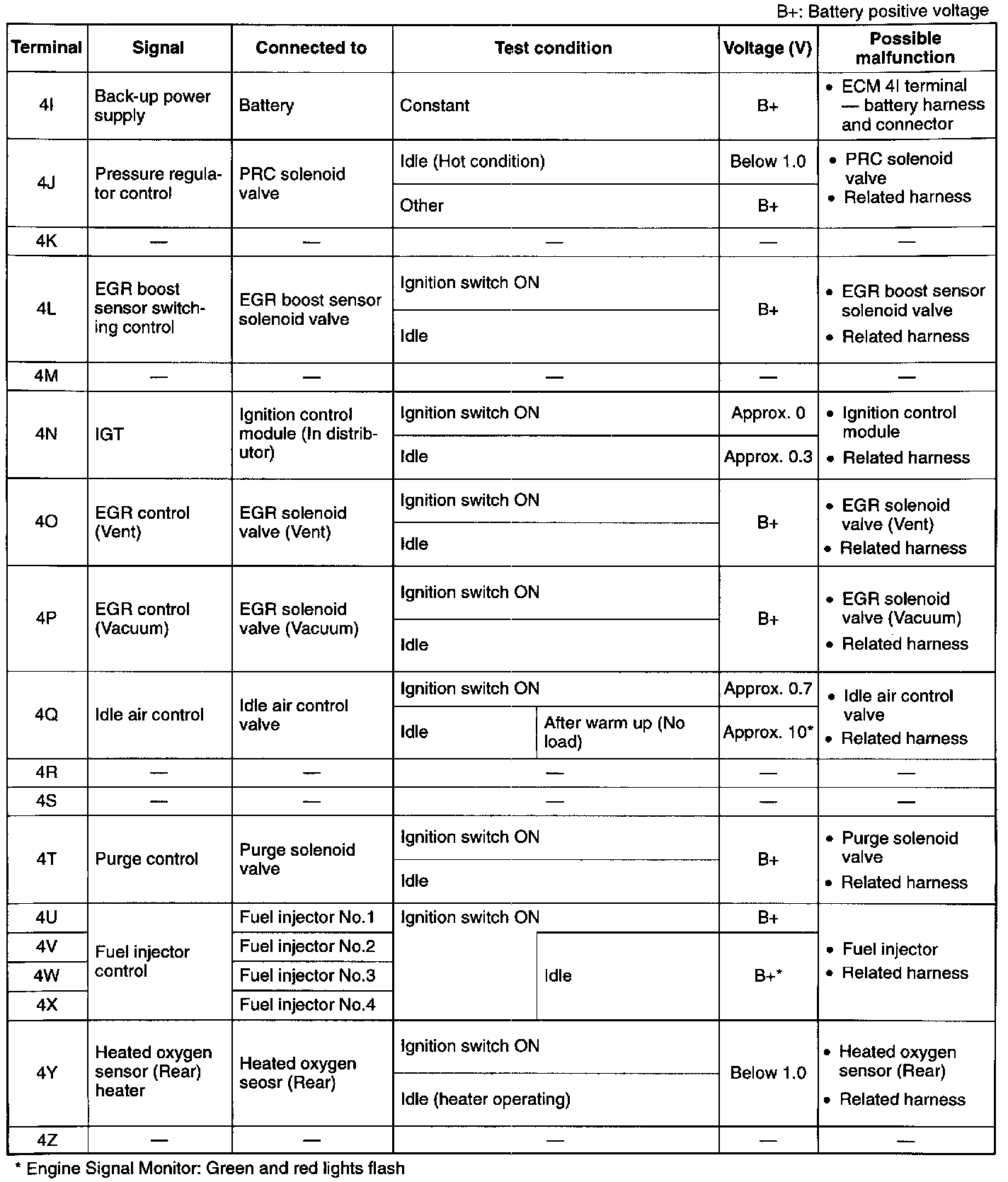

PCM Pin-Out Explanation (2 Of 4):

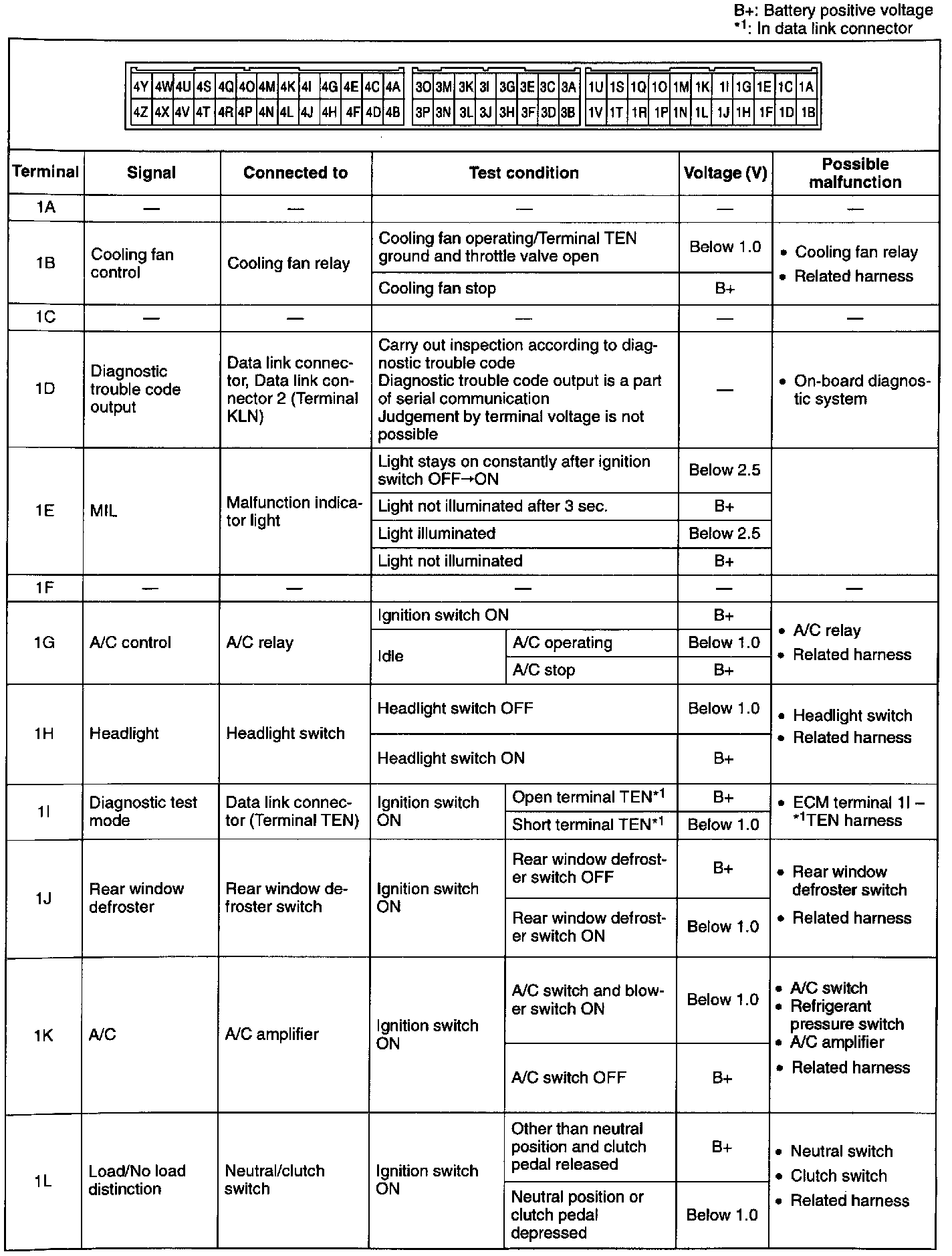

PCM Pin-Out Explanation (3 Of 4):

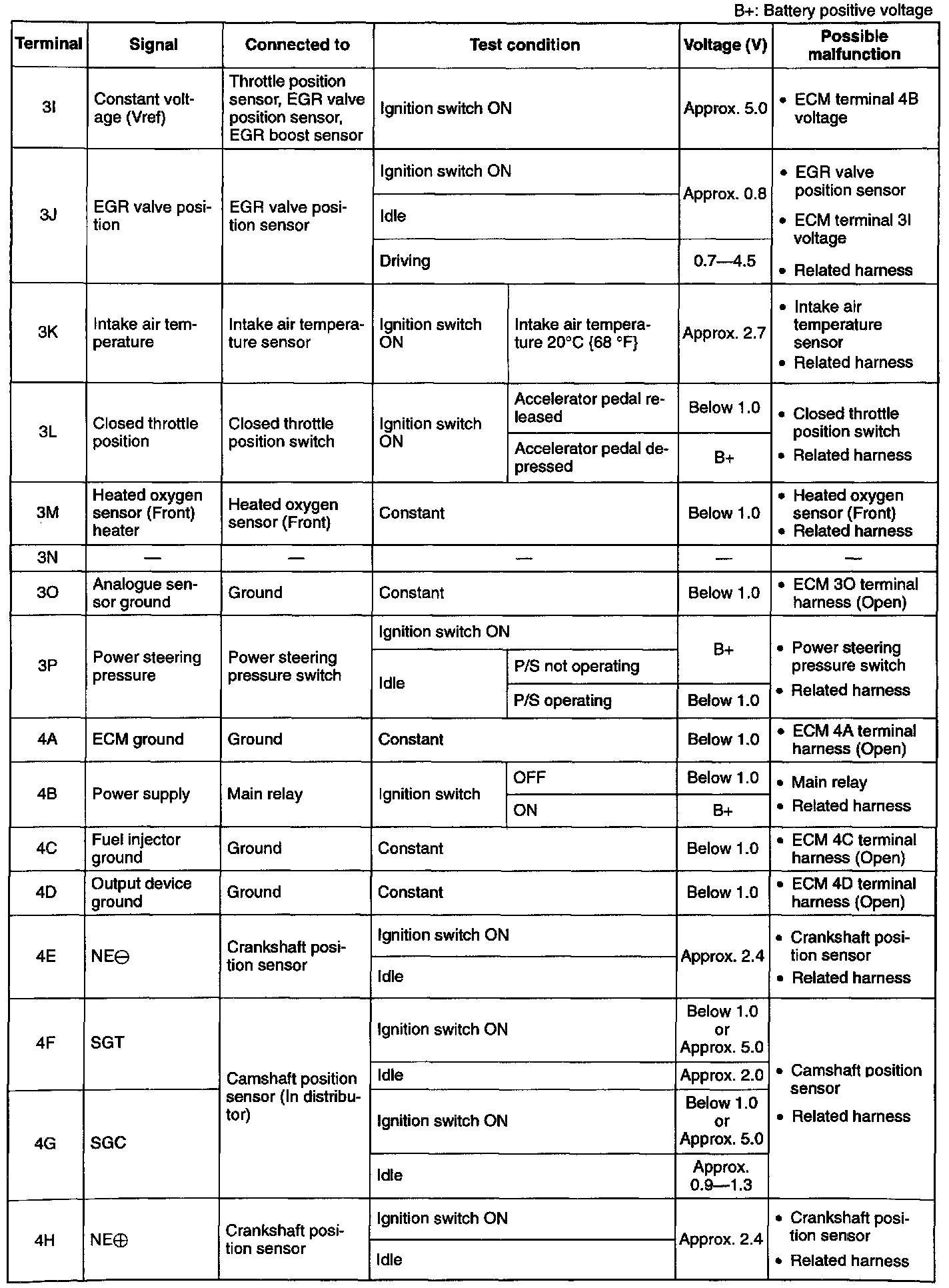

PCM Pin-Out Explanation (4 Of 4):
