Control System Components

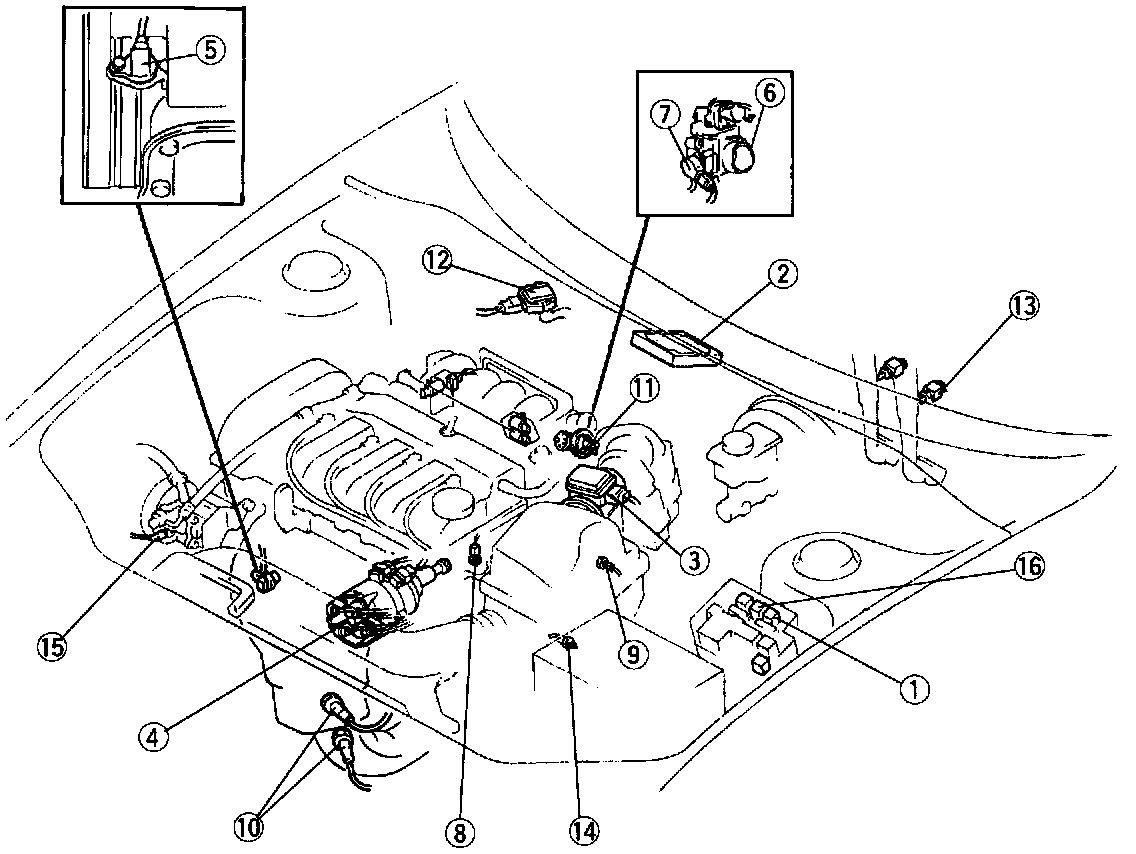

Control System Component Locations:

1. Fuel pump relay
2. Engine control module
3. Mass air flow sensor
4. Camshaft position sensor
5. Crankshaft position sensor
6. Closed throttle position switch
7. Throttle position sensor
8. Engine coolant temperature sensor
9. Intake air temperature sensor
10. Heated oxygen sensor
11. EGR valve position sensor
12. EGR boost sensor
13. Clutch switch
14. Neutral switch
15. P/S pressure switch
16. Main relay
