Control Switch

Disconnect power seat control switch connector and recliner motor connector. Using ohmmeter, check continuity between specified terminals of power seat control switch with control switch in specified position. SeeFig 1 and Fig 2 . If continuity is not as specified, replace power seat control switch.

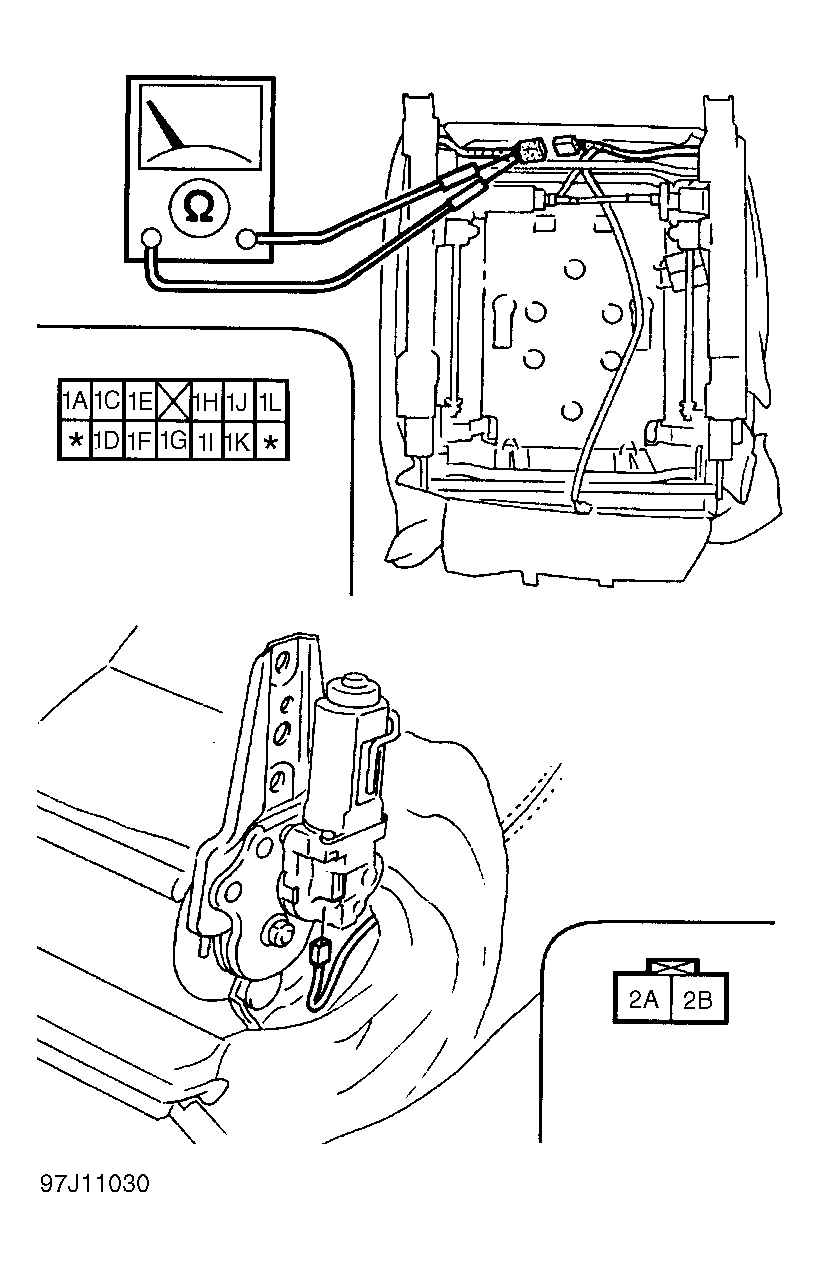

Fig 1: Control Switch Connector & Motor Connector Terminals Id

Courtesy of MAZDA MOTORS CORP.

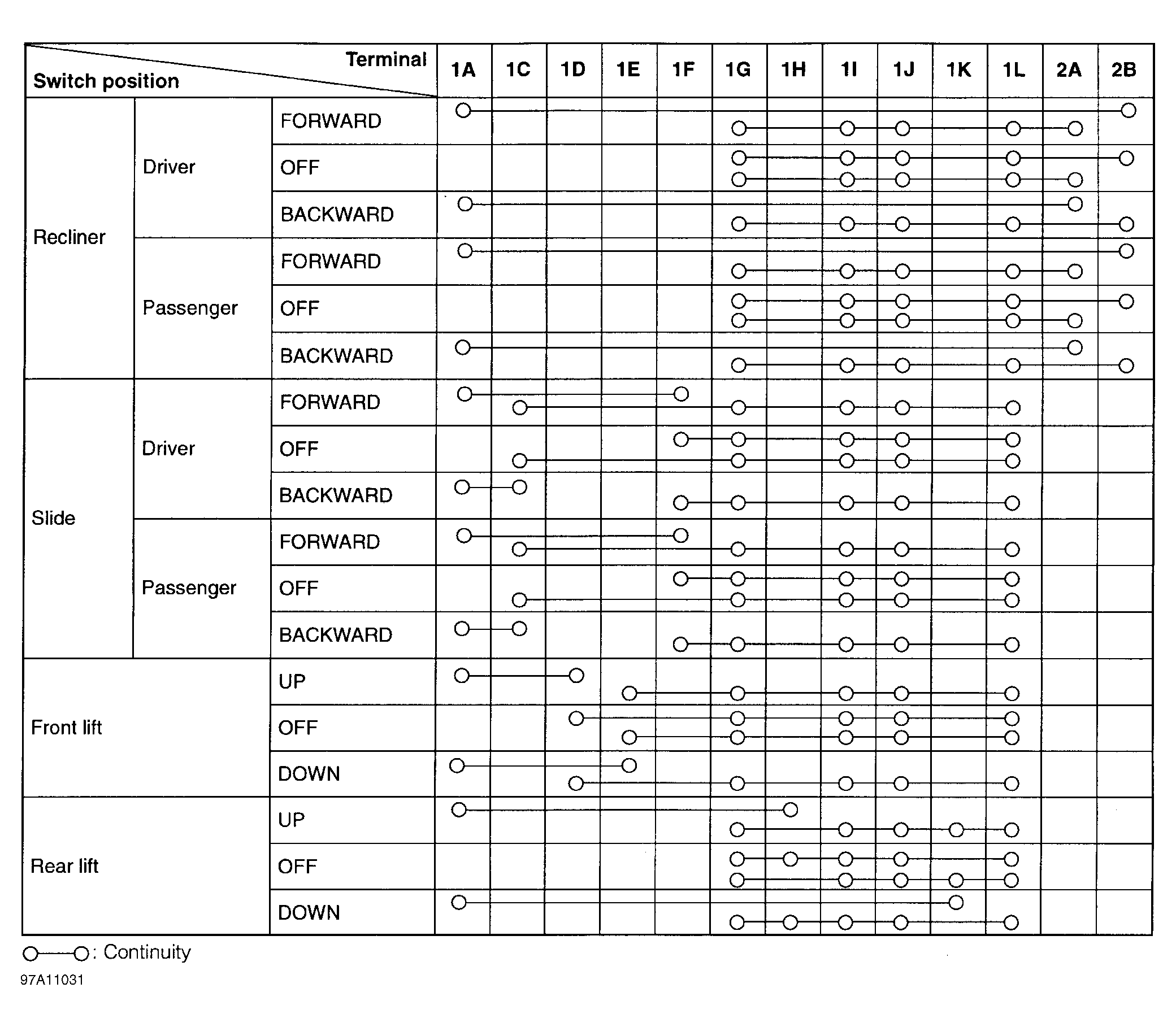

Fig 2: Control Switch Continuity Test Table

Courtesy of MAZDA MOTORS CORP.
