Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

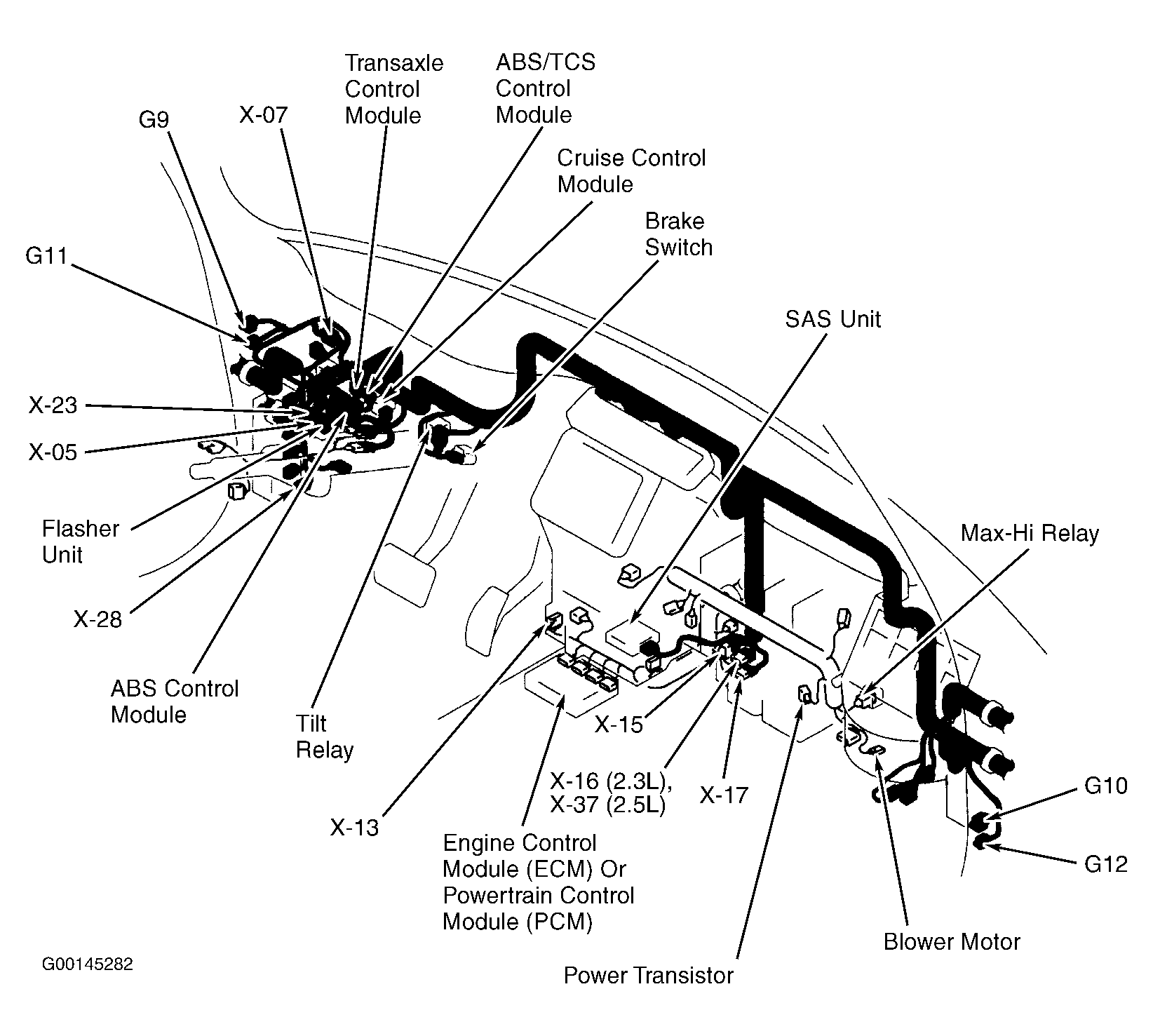

| ABS Control Module | Behind left side of dash. See Figure . |
| ABS Hydraulic Unit | On left rear of engine compartment. |
| ABS/TCS Control Module | Behind left side of dash. See Figure . |
| Central Processing Unit (CPU) | On joint box. |
| Cruise Control Module | Behind left side of dash. See Figure . |
| Engine Control Module (ECM) | Under center of dash. See Figure . |

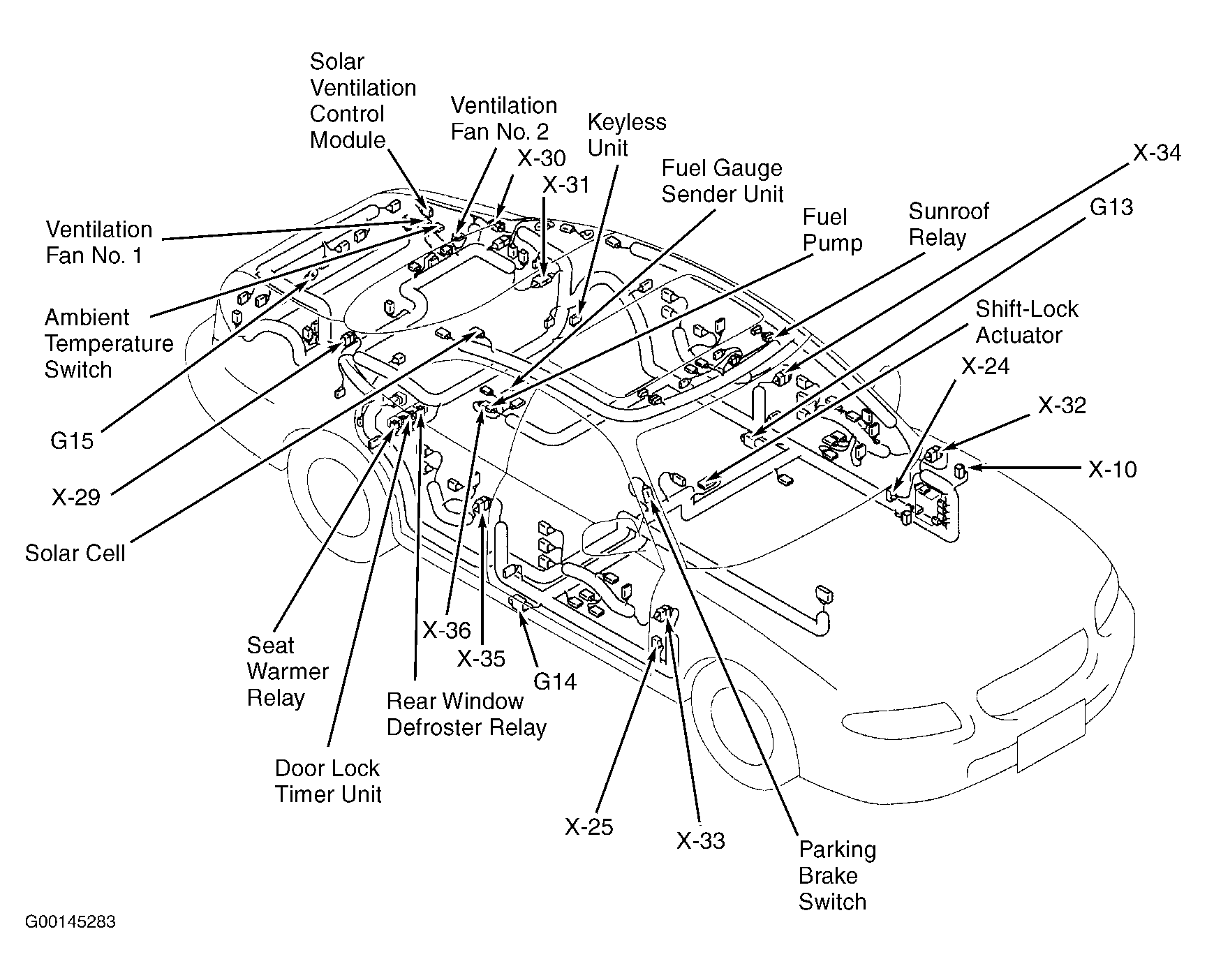

| Keyless Unit | Behind rear seat, on left side. See Figure . |
| Panel Lamp Control Box | Behind left side of dash, in back of instrument cluster. |
| Powertrain Control Module (PCM) | Under center of dash. See Figure . |
| SAS Unit | Under center of dash. See Figure . |
| Solar Ventilation Control Module | On left rear of luggage compartment. See Figure . |
| Transaxle Control Module | Behind left side of dash. See Figure . |
