Exhaust System Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When the engine and exhaust system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the exhaust system.

Remove in the order indicated in the figure.

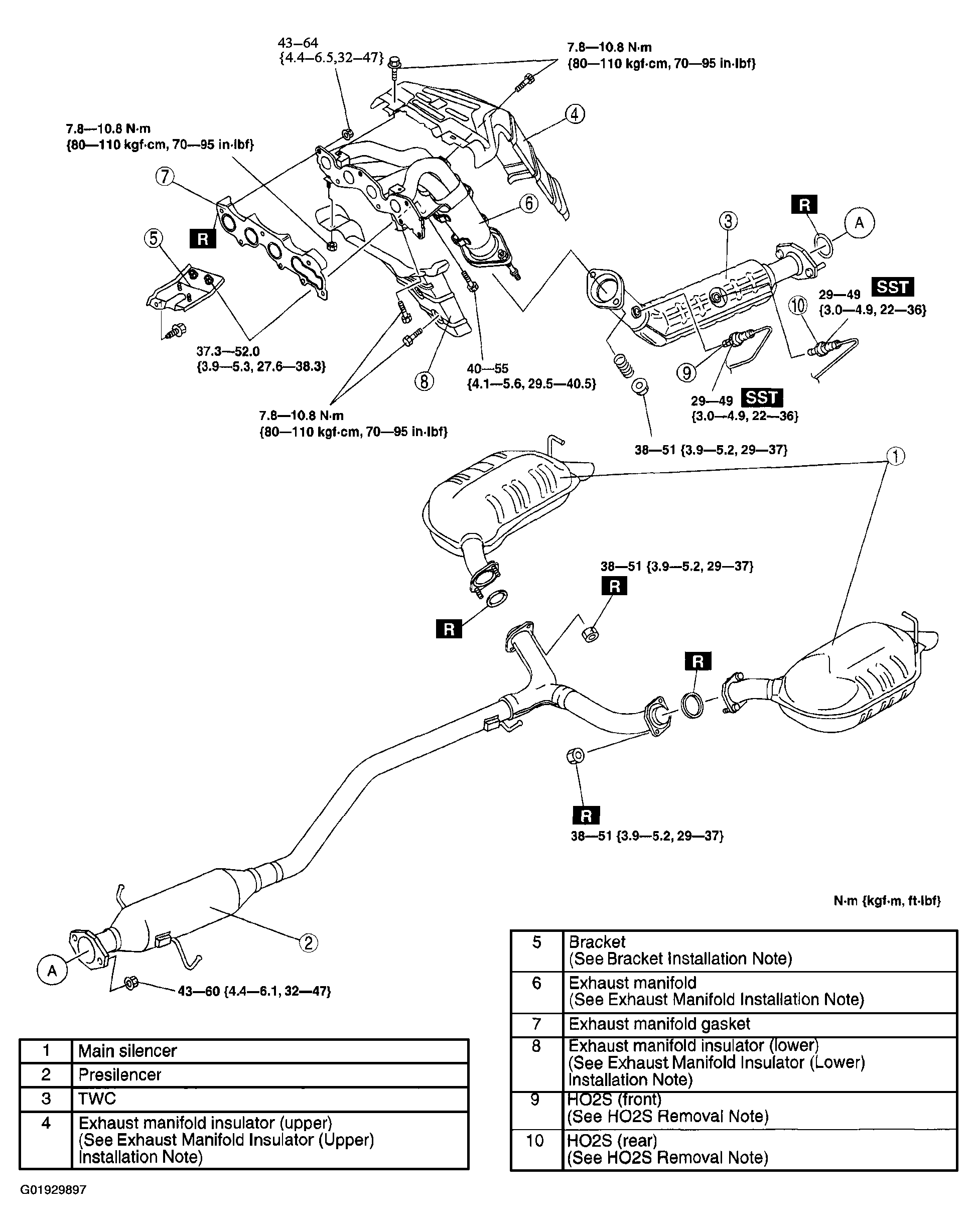

Fig 1: Removing Exhaust System
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
