Engine Control System, EC-at Control System

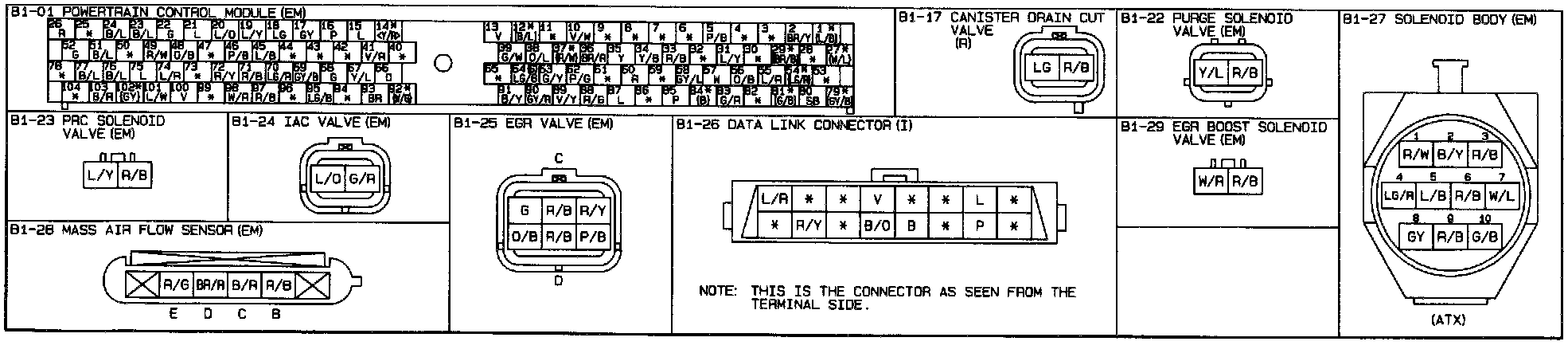

Engine Control System (FS), EC-AT Control System (FS)- Connectors:
