Abs Control Module

Turn ignition off. Test ABS control module using DVOM and Adapter Harness (49-L066-001) connected to ABS control module connector. Check voltage between applicable terminal and terminal "A" (ground) of ABS control module connector. See Fig 1 or Fig 2 . If voltage, continuity or resistance is not as specified, replace ABS control module. See Fig 3 -8.

Fig 1: Identifying ABS Control Module Connector Terminals (1997)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying ABS Control Module Connector Terminals (1998)

Courtesy of MAZDA MOTORS CORP.

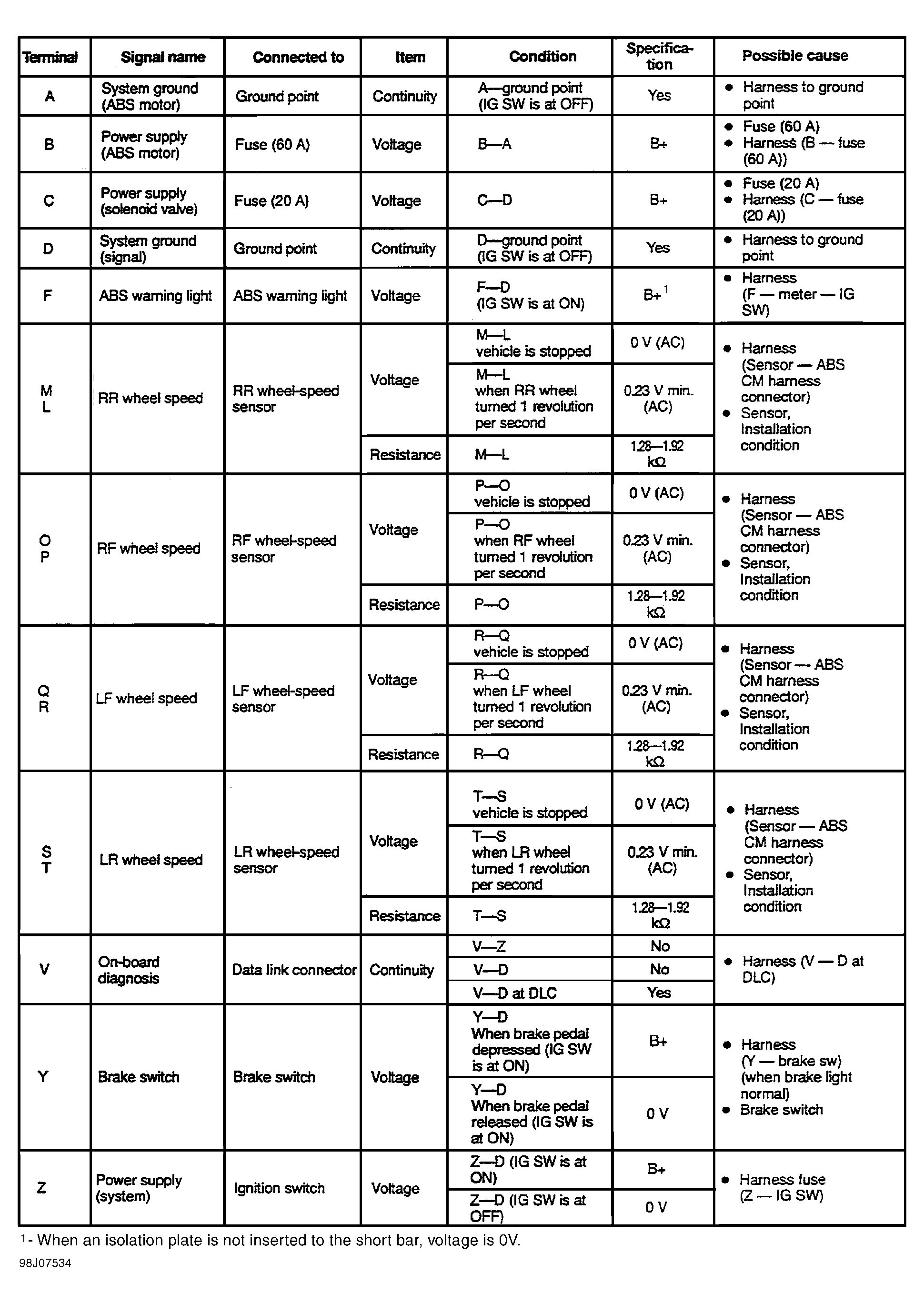

Fig 3: Testing ABS Control Module (1997 - 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Testing ABS Control Module (1997 - 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Testing ABS Control Module (1998)

Courtesy of MAZDA MOTORS CORP.
