Keyless Entry System Preliminary Inspection
KEYLESS ENTRY SYSTEM PRELIMINARY CHECKStep 1:

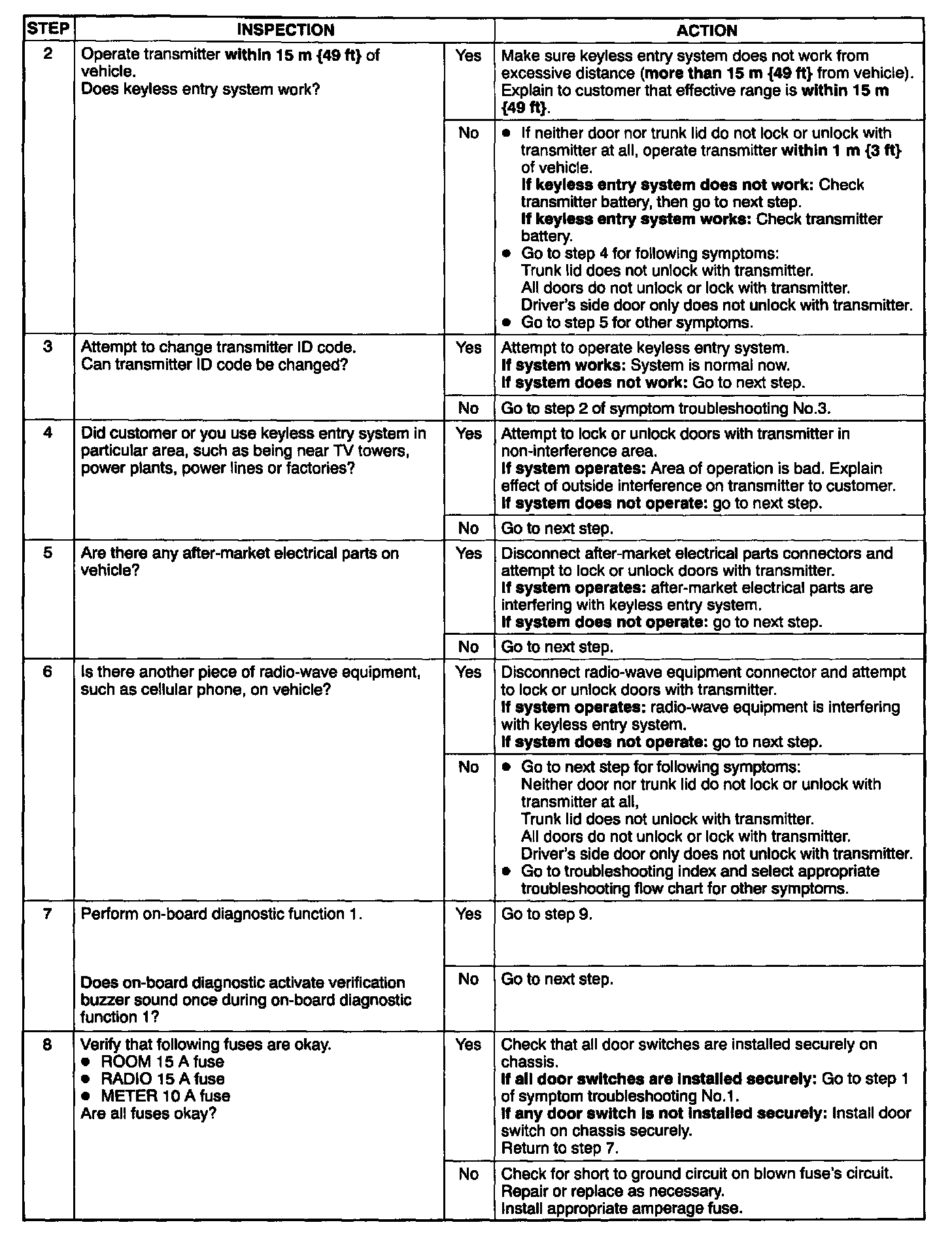

Steps 2 Through 8:

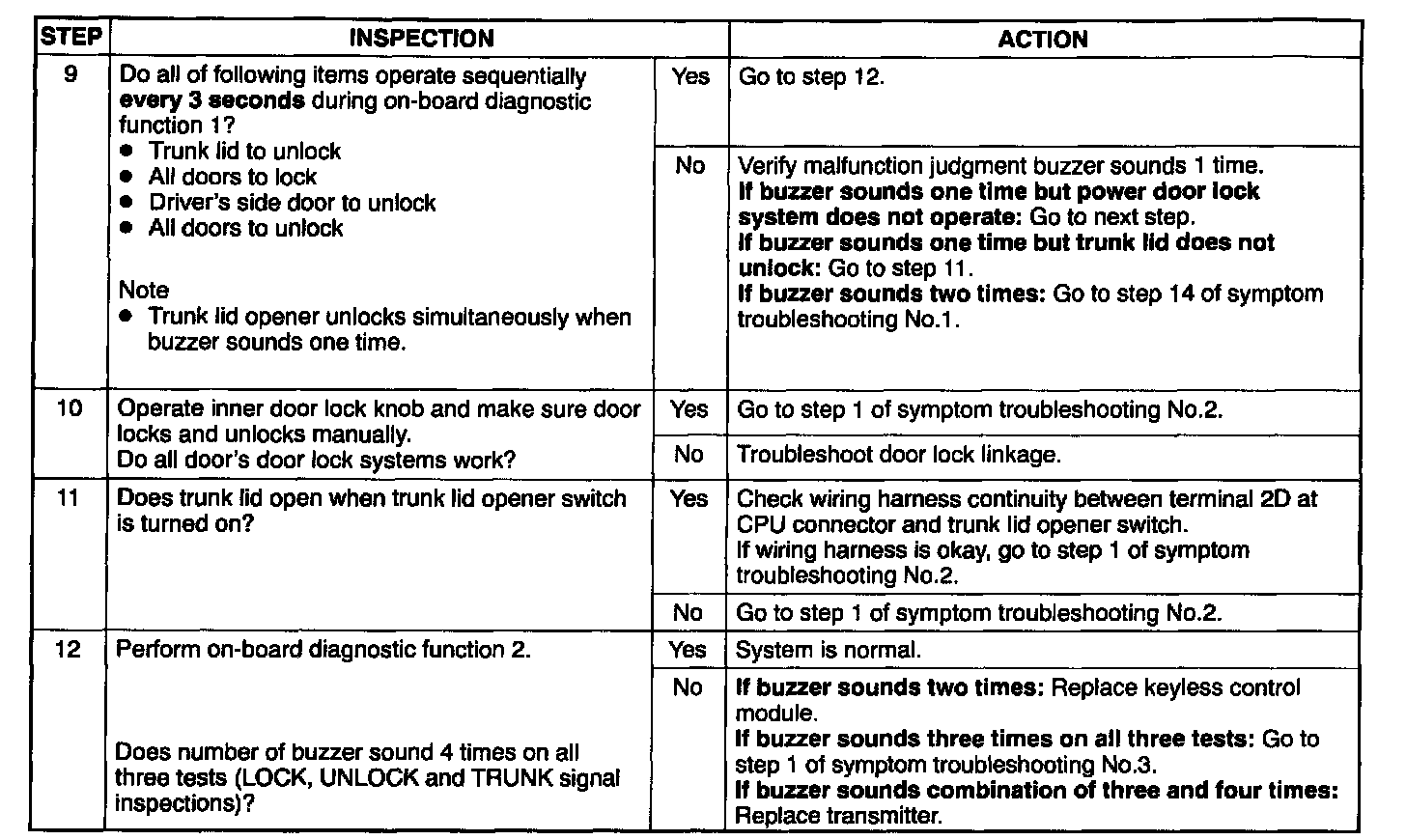

Steps 9 Through 12:
Perform the preliminary inspection before performing the symptom troubleshooting.
Note: When Performing an asterisks (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
