Cruise Control Module: Testing and Inspection

CRUISE CONTROL MODULE INSPECTION

1. Remove the passenger-side front side trim.
2. Remove the cruise control module with the connector connected.
3. Measure the voltage at the cruise control module terminals as indicated.
4. Disconnect the cruise control module connector before inspecting for continuity at terminal P.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise control module.

Connector View:

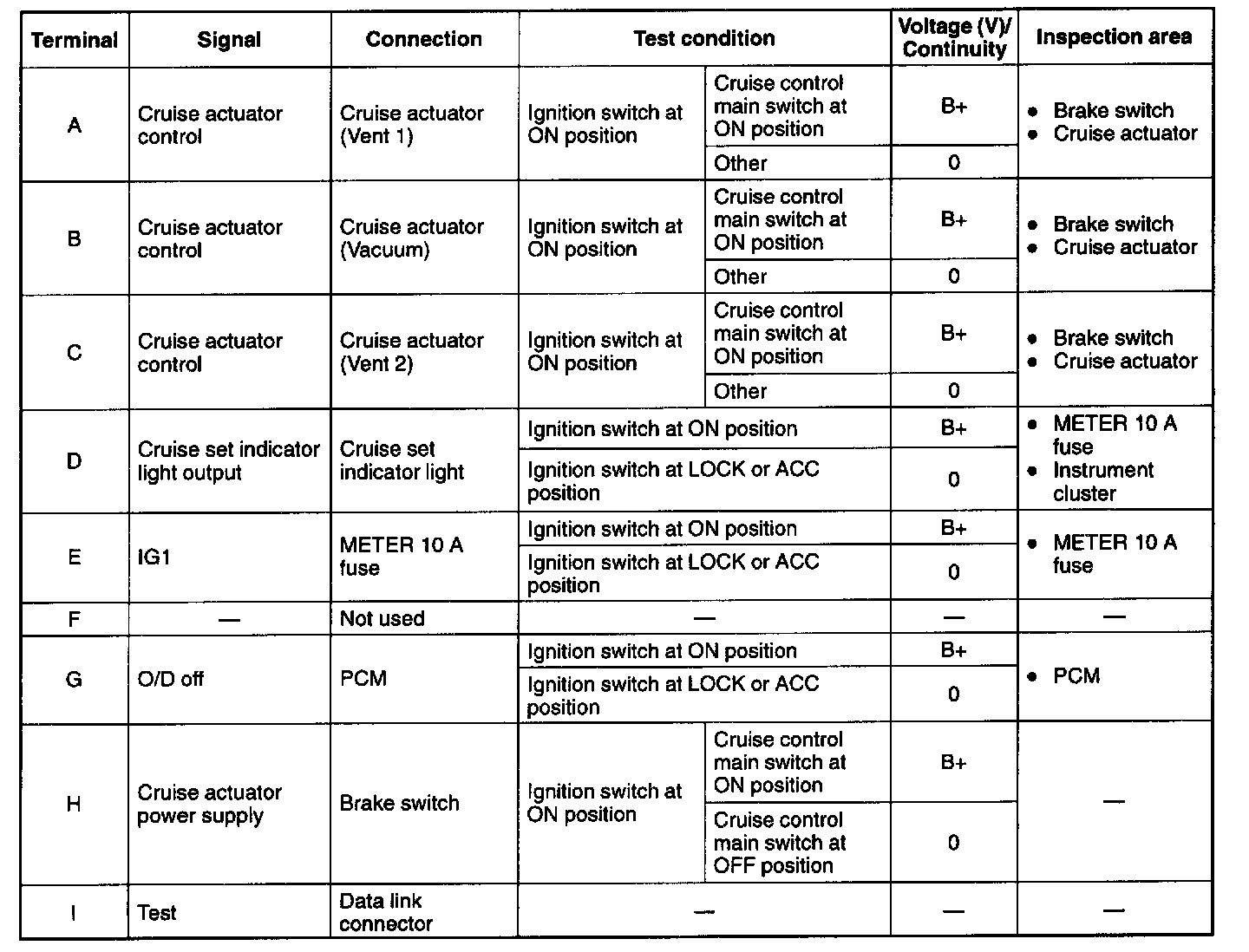

Terminal Values - (A-I):

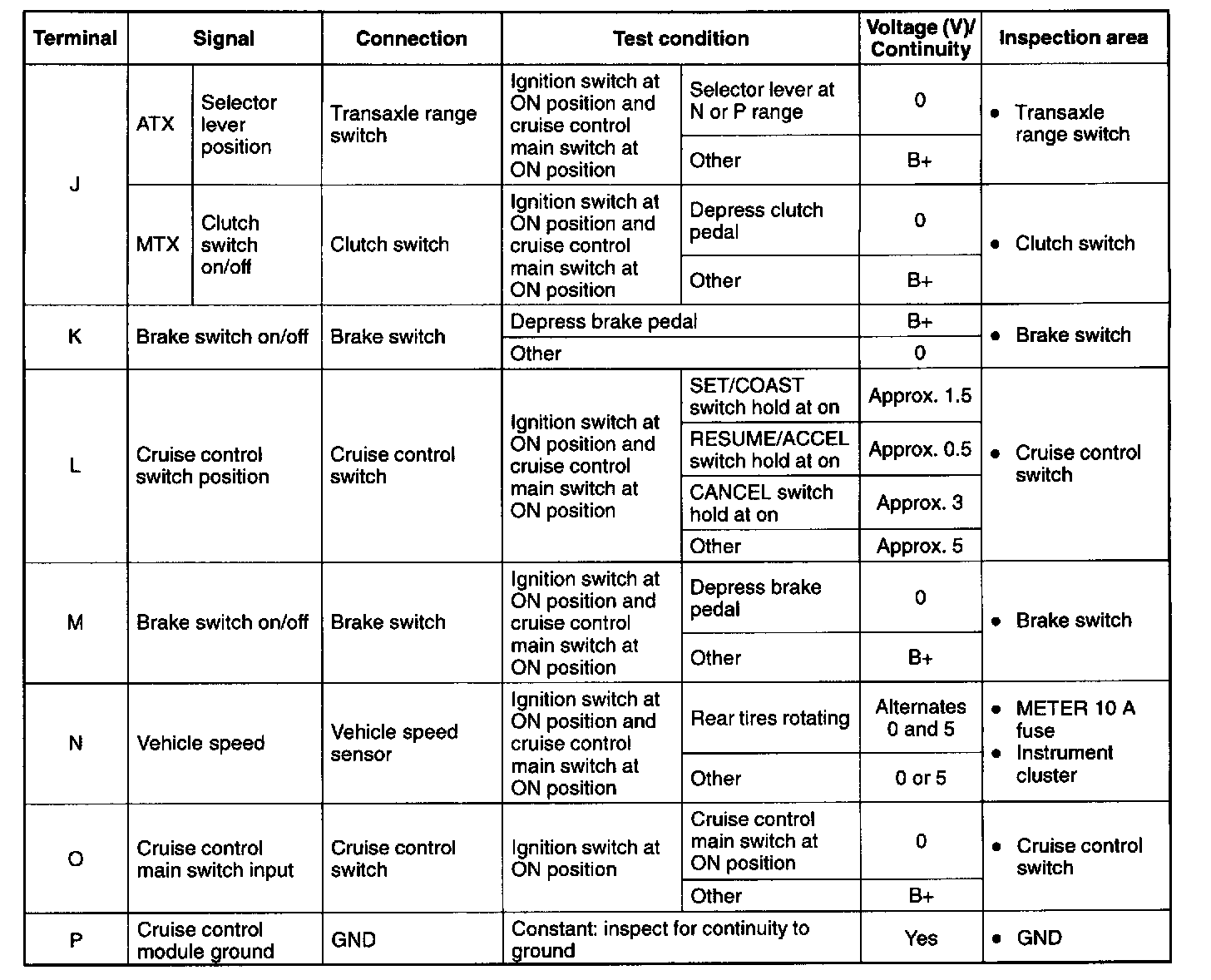

Terminal Values - (J-P):

Terminal Voltage List (Reference)
