Removal & Installation

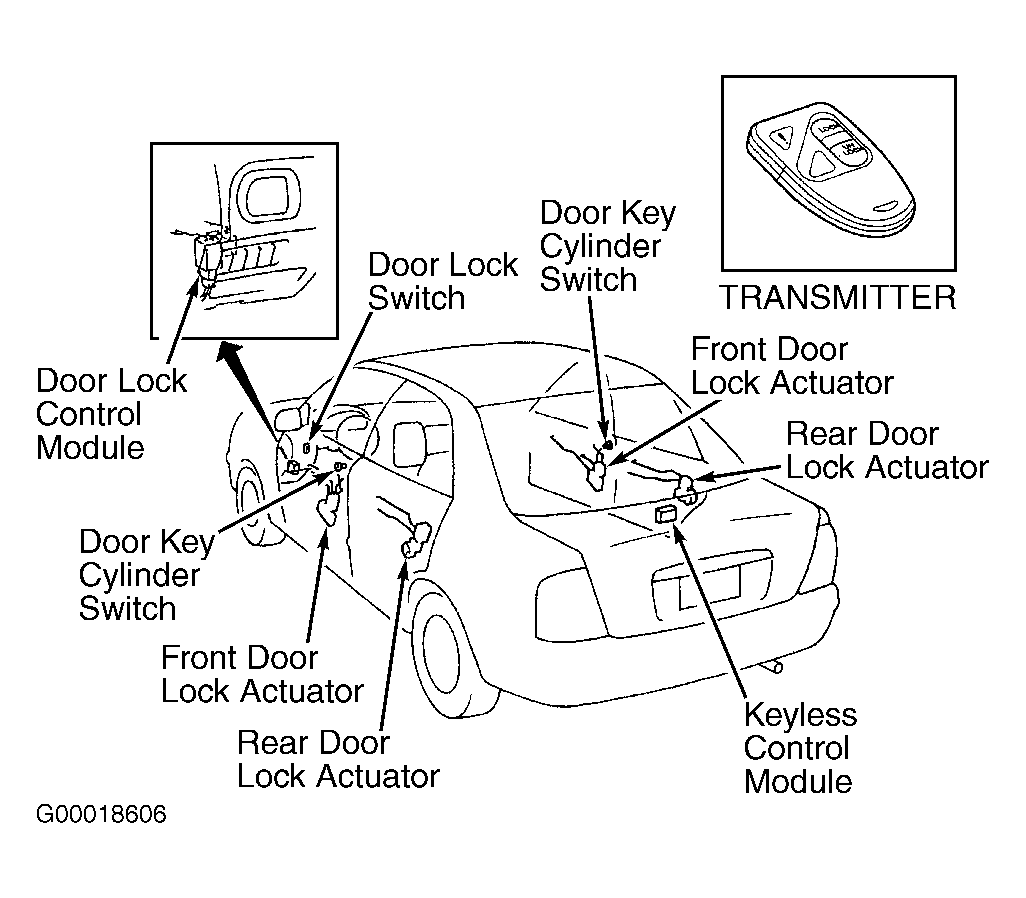

Disconnect negative battery cable. Remove rear package trim panel. Locate keyless control module. See Figure . Disconnect electrical connector. Remove bracket nut and bolt. Remove keyless control module. To install, reverse removal procedure.
