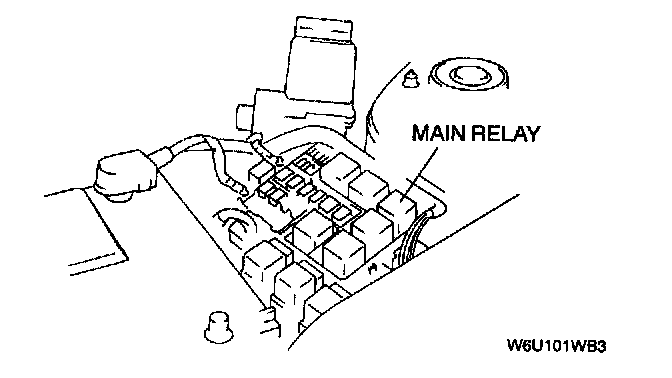

Main Relay Operation Inspection




1. Verify the main relay clicks when the ignition switch is turned to ON and OFF.

2. If there is no sound, inspect the following:
- Main relay.
- Harness and connector between ignition switch and main relay.
