Door Lock Control Module 1

NOTE: Disconnect the door lock control module 1 connector before checking for continuity at terminal F.

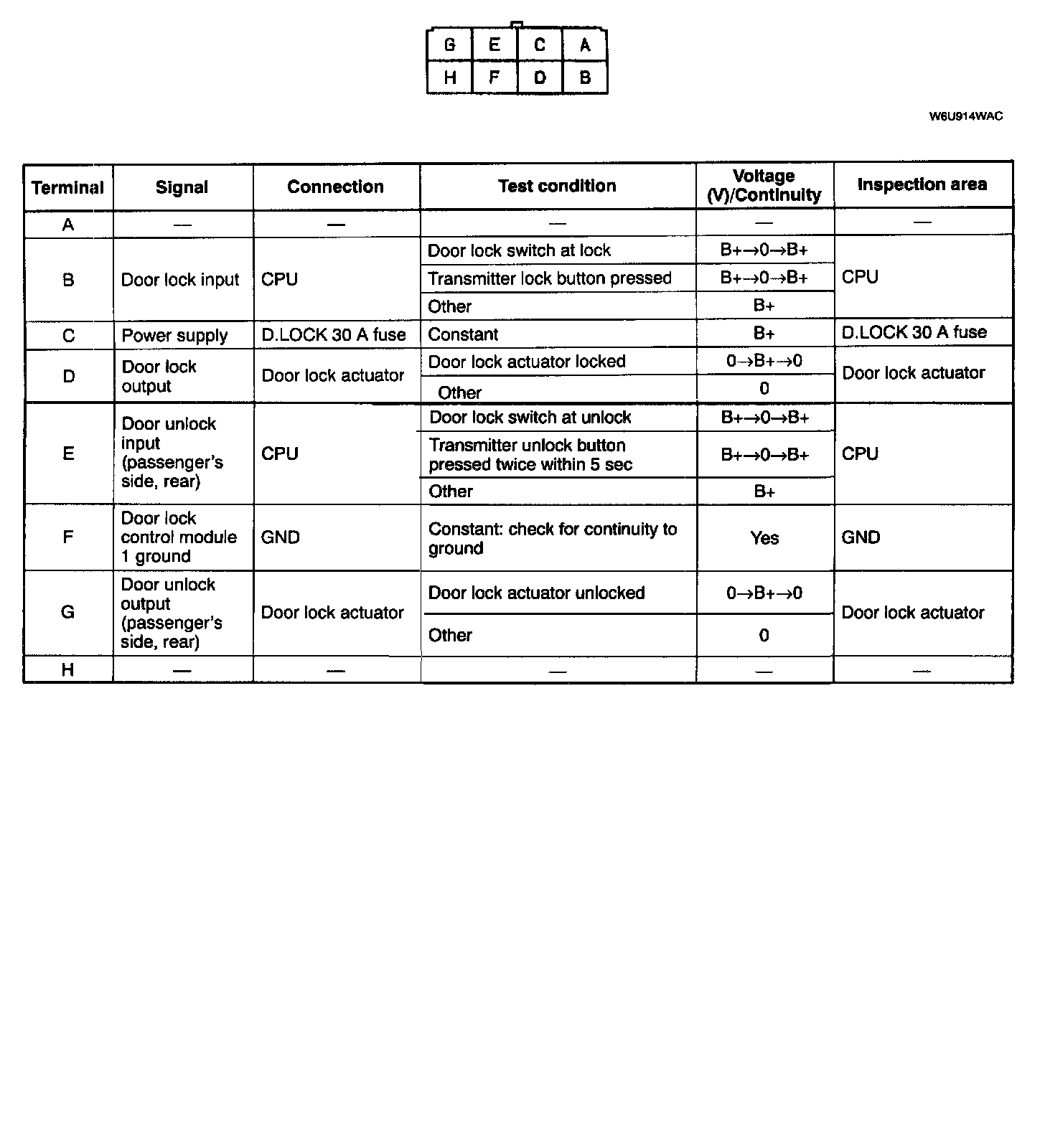

Terminal Voltage List (Reference):

1. Measure the voltage at the door lock control module 1 terminals as indicated.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the door lock control module 1.
