Basic Structural View

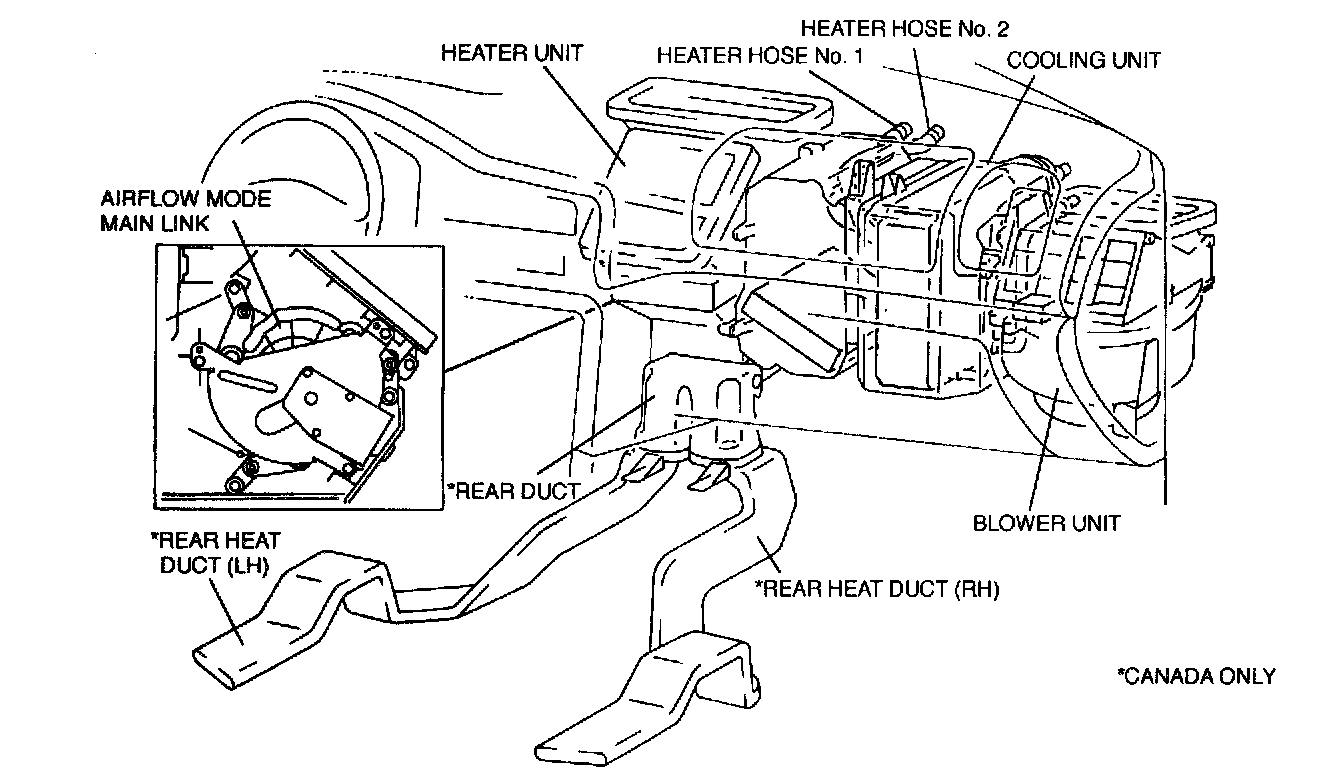

Basic System Structural View (Passenger Compartment):

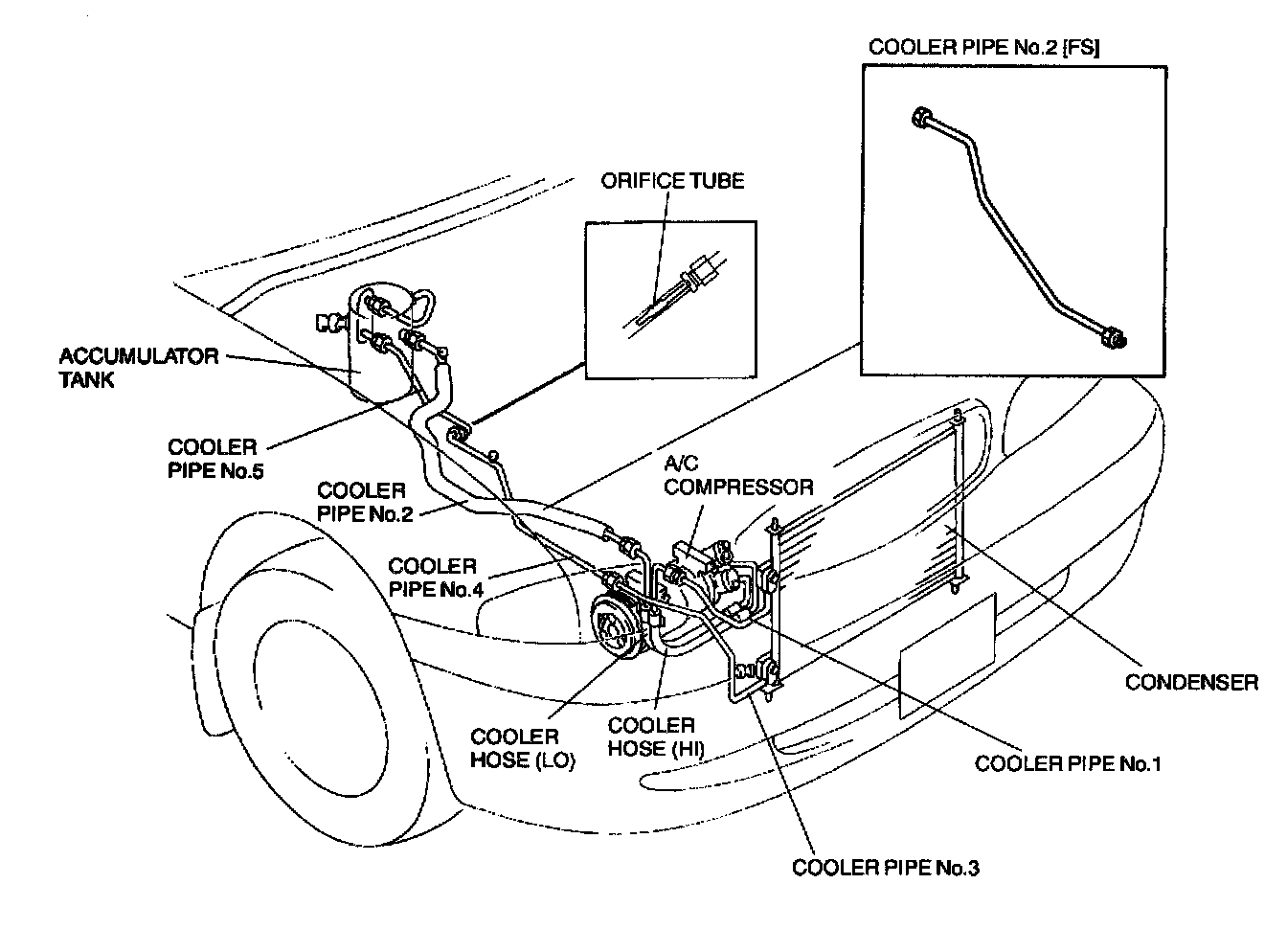

Basic System Structural View (Engine Room):

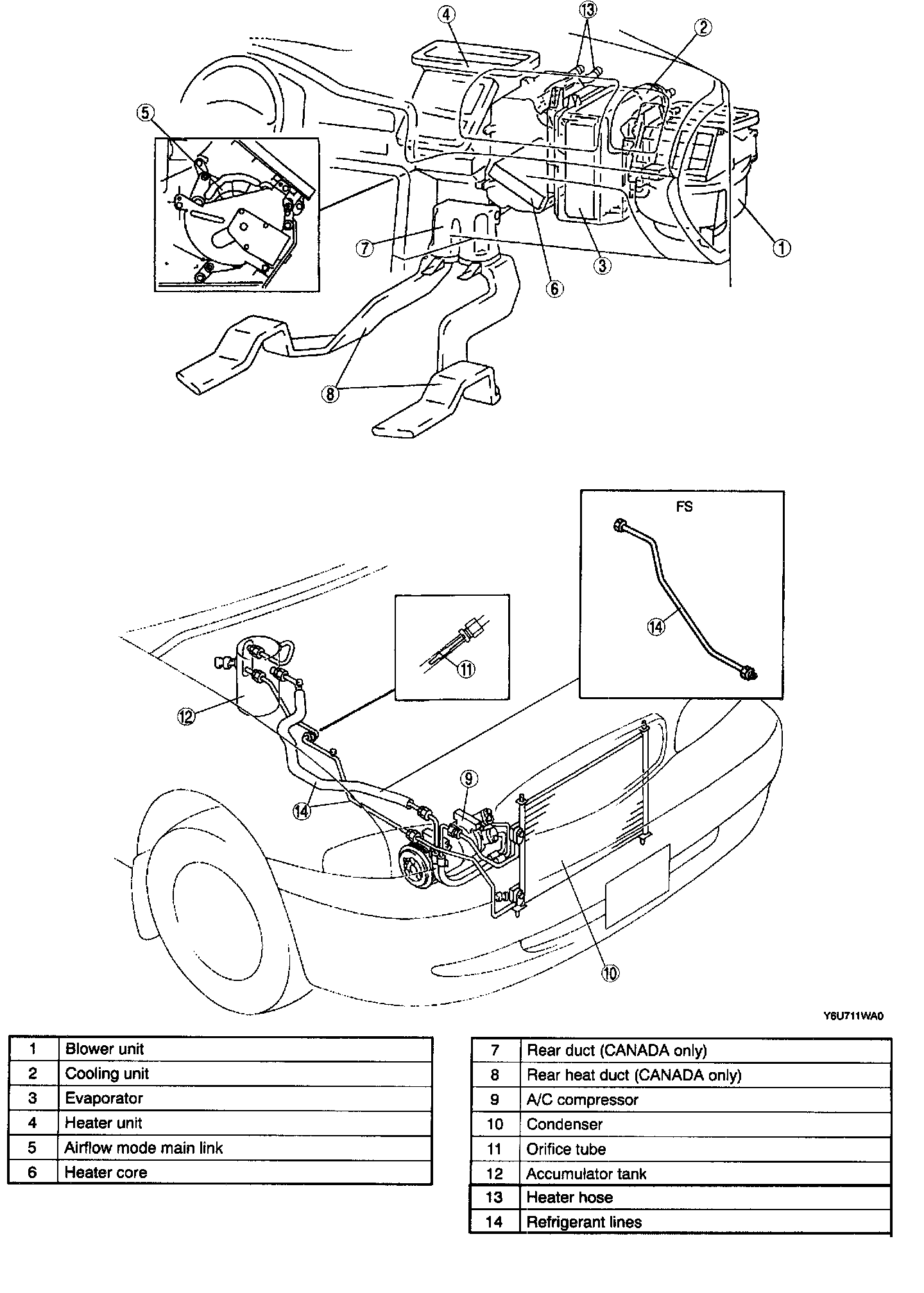

Basic System Structural View:
