Ignition System: Testing and Inspection

1. Disconnect the fuel pump relay connector.
2. Verify each high-tension lead and connector is connected properly.

Steps 1 - 5:

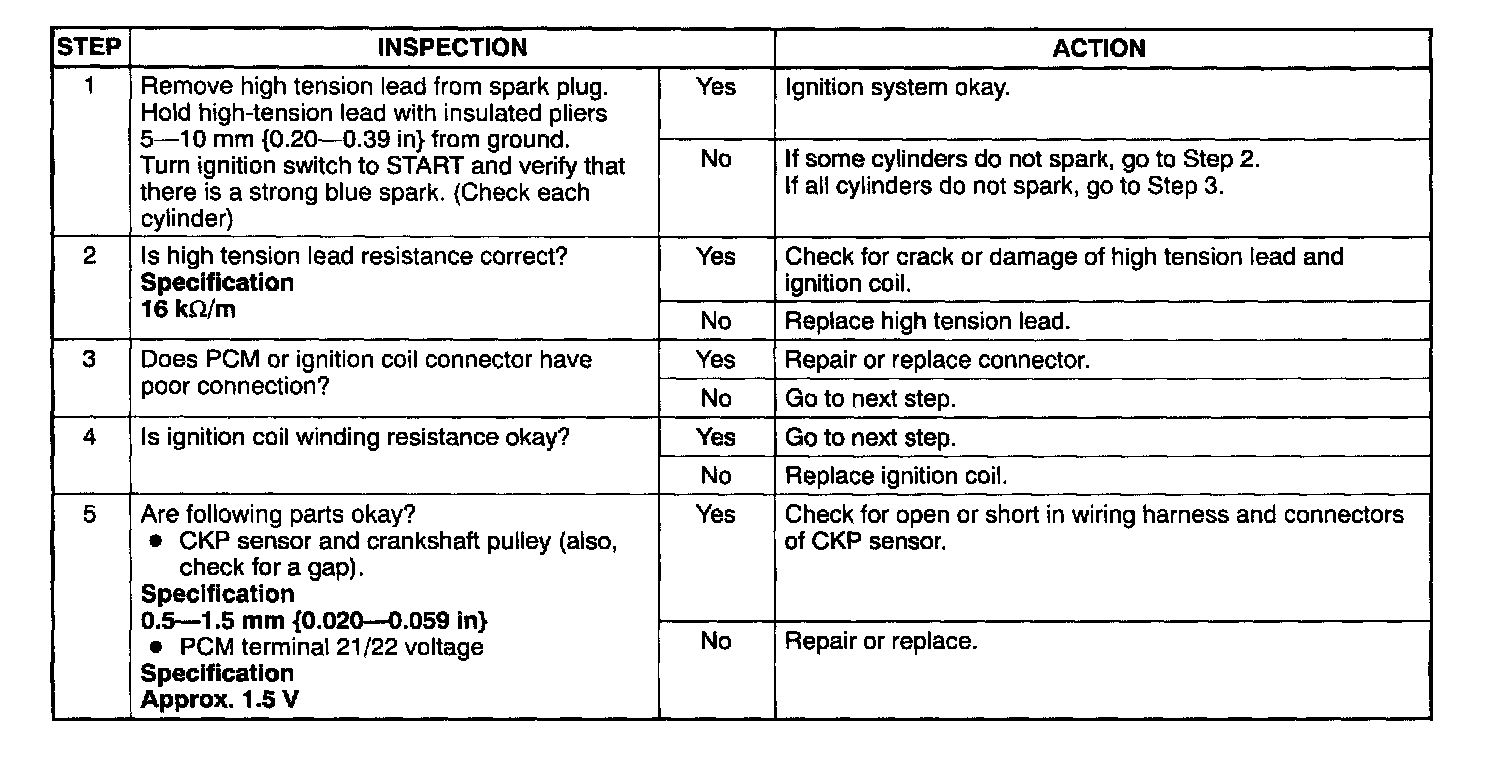

3. Inspect the ignition system using the procedure as given in the table.

WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the spark test.
