Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE [GF4A-EL]

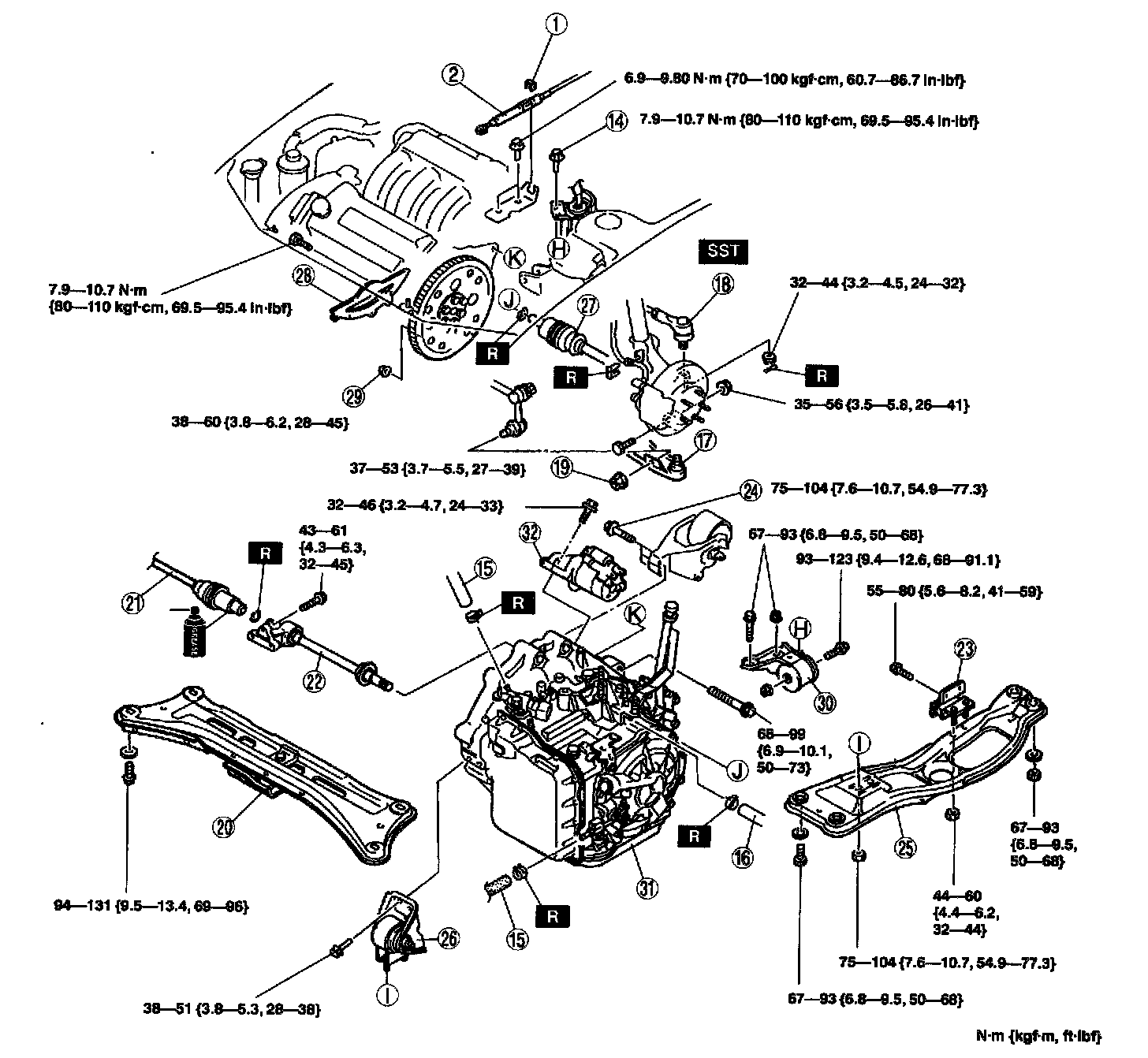

Exploded View

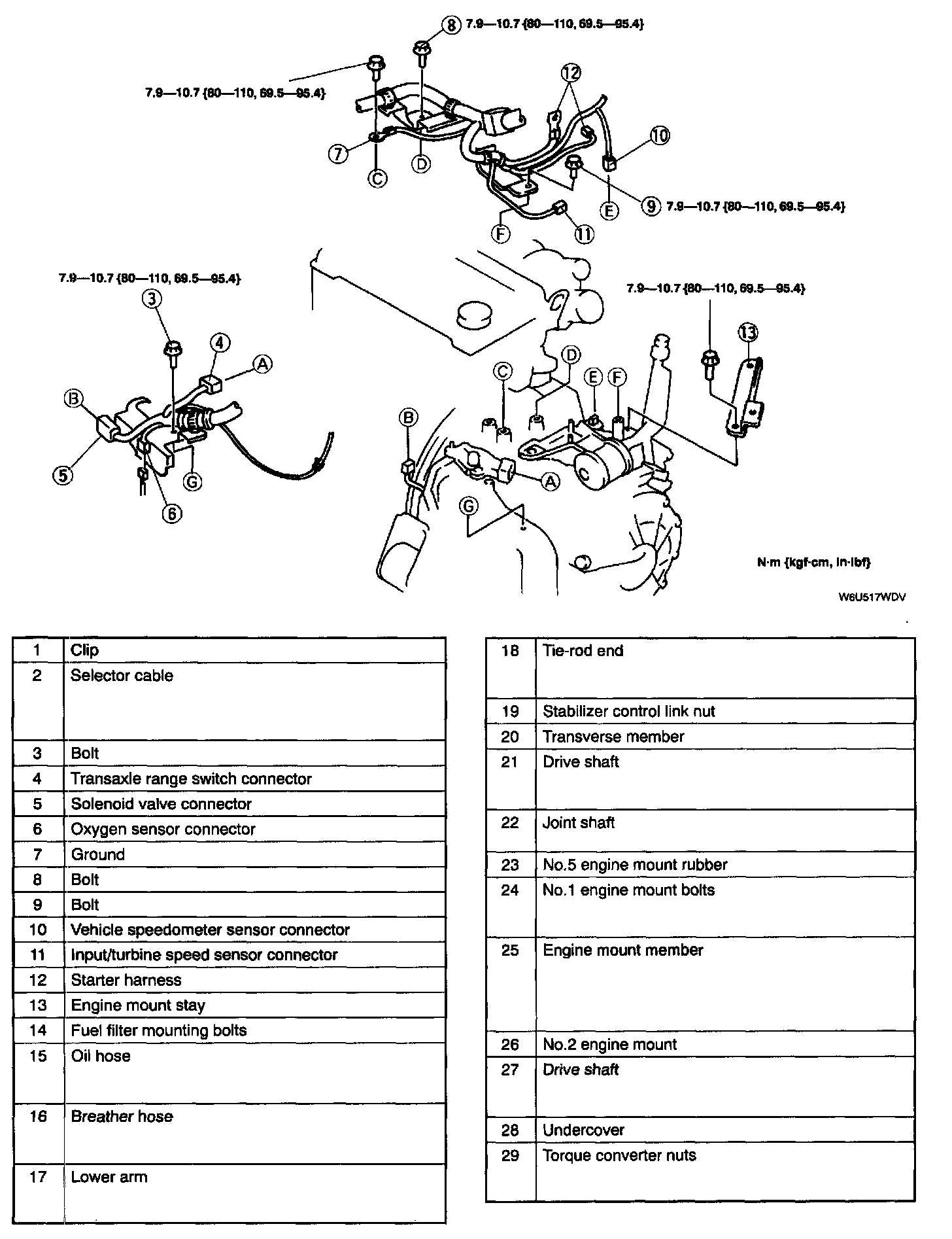

Exploded View and Legend





Legend
