Connector End Views
TRANSMISSION CONNECTOR LAYOUT

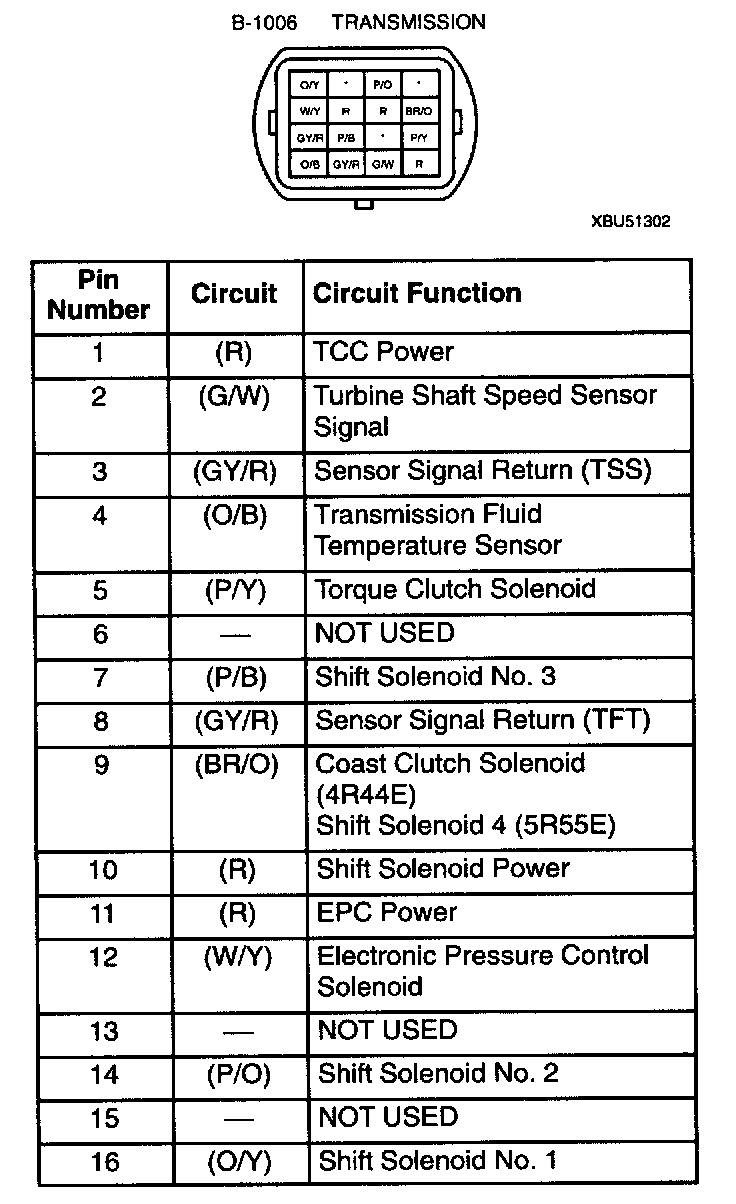

Transmission Vehicle Harness Connector
Digital Transmission Range (TR) Sensor Vehicle Harness Connector
Part 1 of 2
Part 1 of 2
Output Shaft Speed (OSS) Sensor Connector

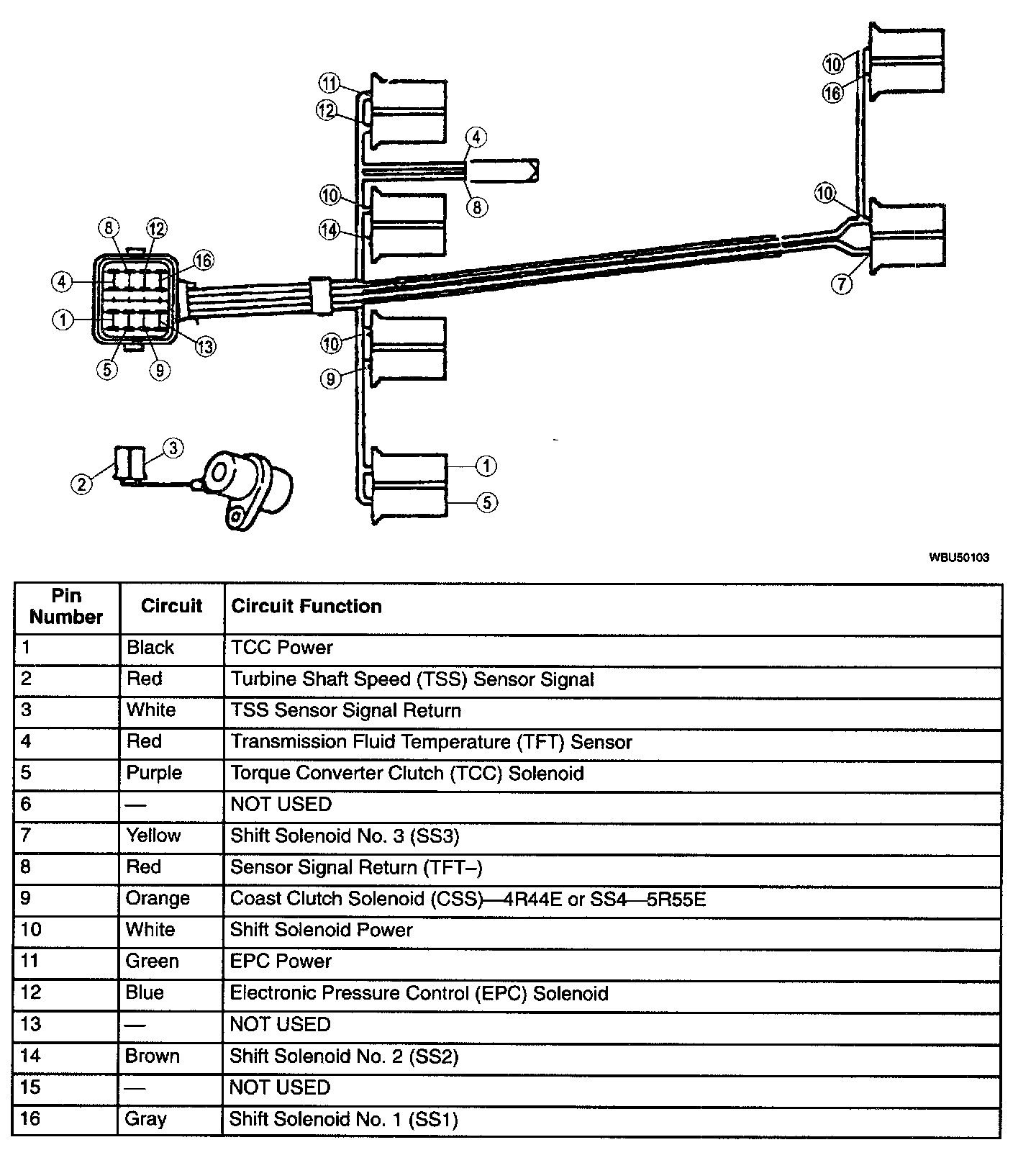

Control Valve Body Wire Harness Diagram
