Test 15: Differential Pressure Feedback EGR (DPFEGR) Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

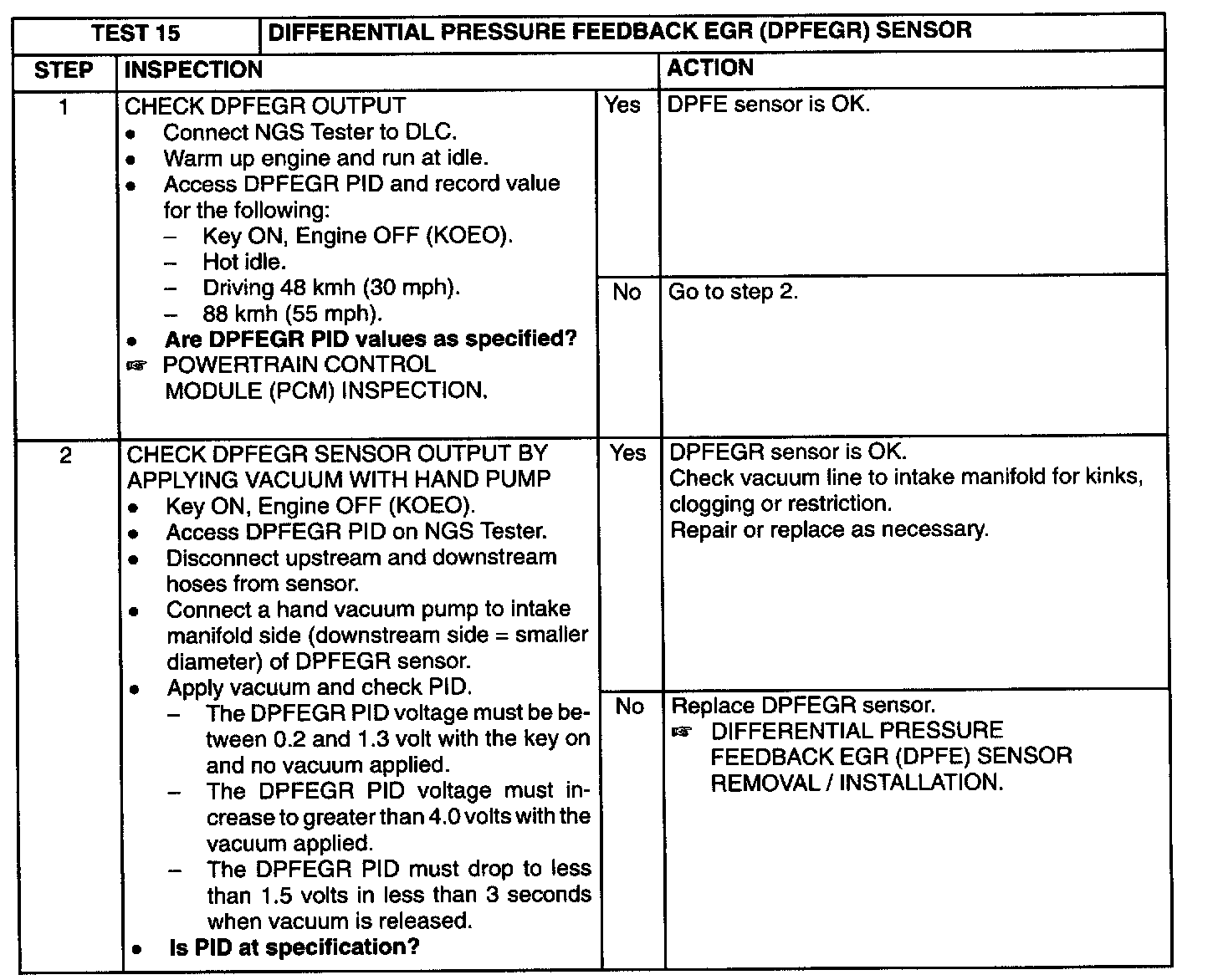

Test 15: Differential Pressure Feedback EGR (DPFEGR) Sensor
Steps 1 - 2:
