Power Door Lock Control Module: Testing and Inspection

DOOR LOCK CONTROL MODULE INSPECTION

1. Remove the passenger-side front side trim.

Terminal Voltage Table (Reference) - Connector View:

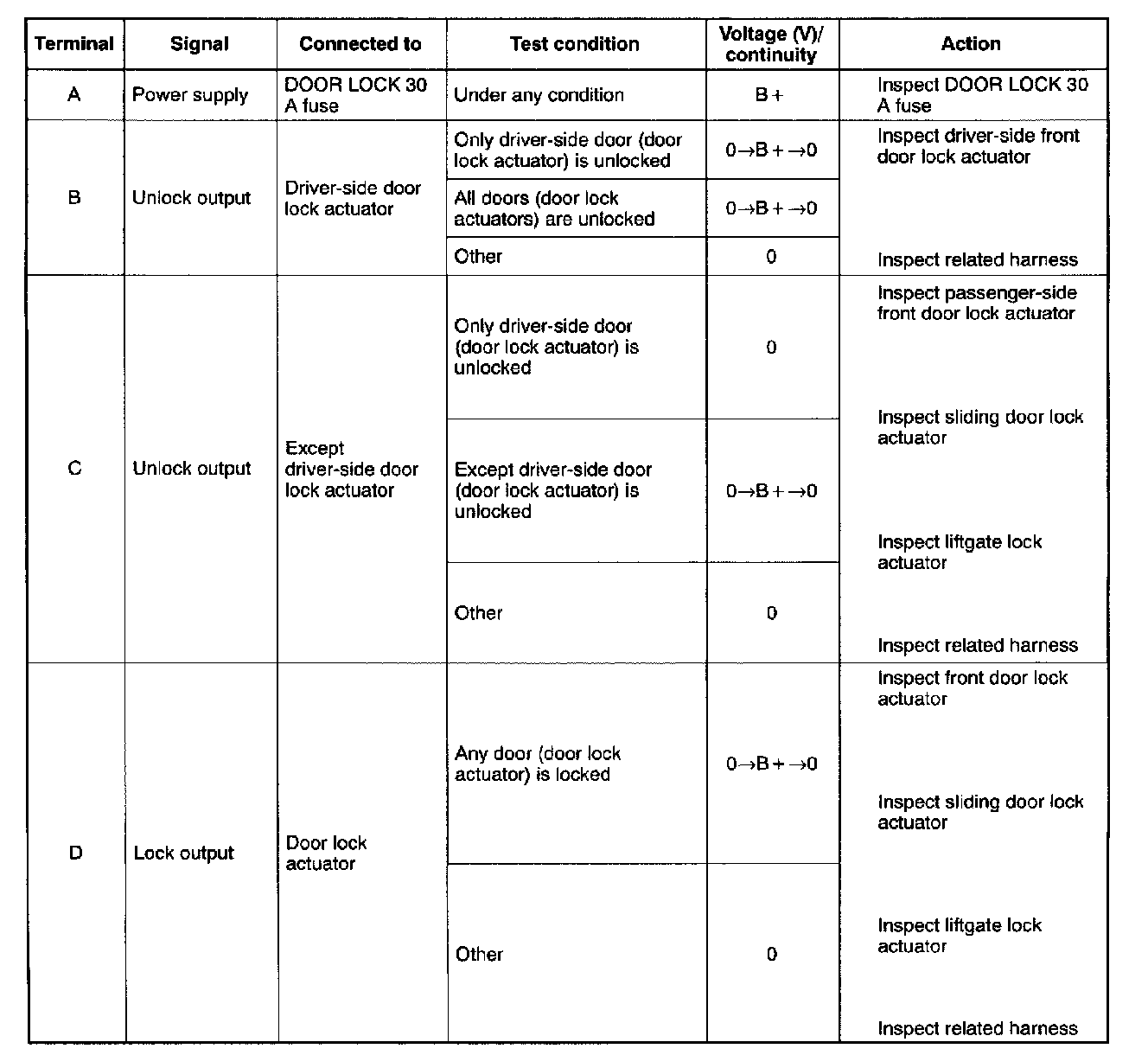

Terminal Voltage Table (Reference) - Pinouts (A - D):

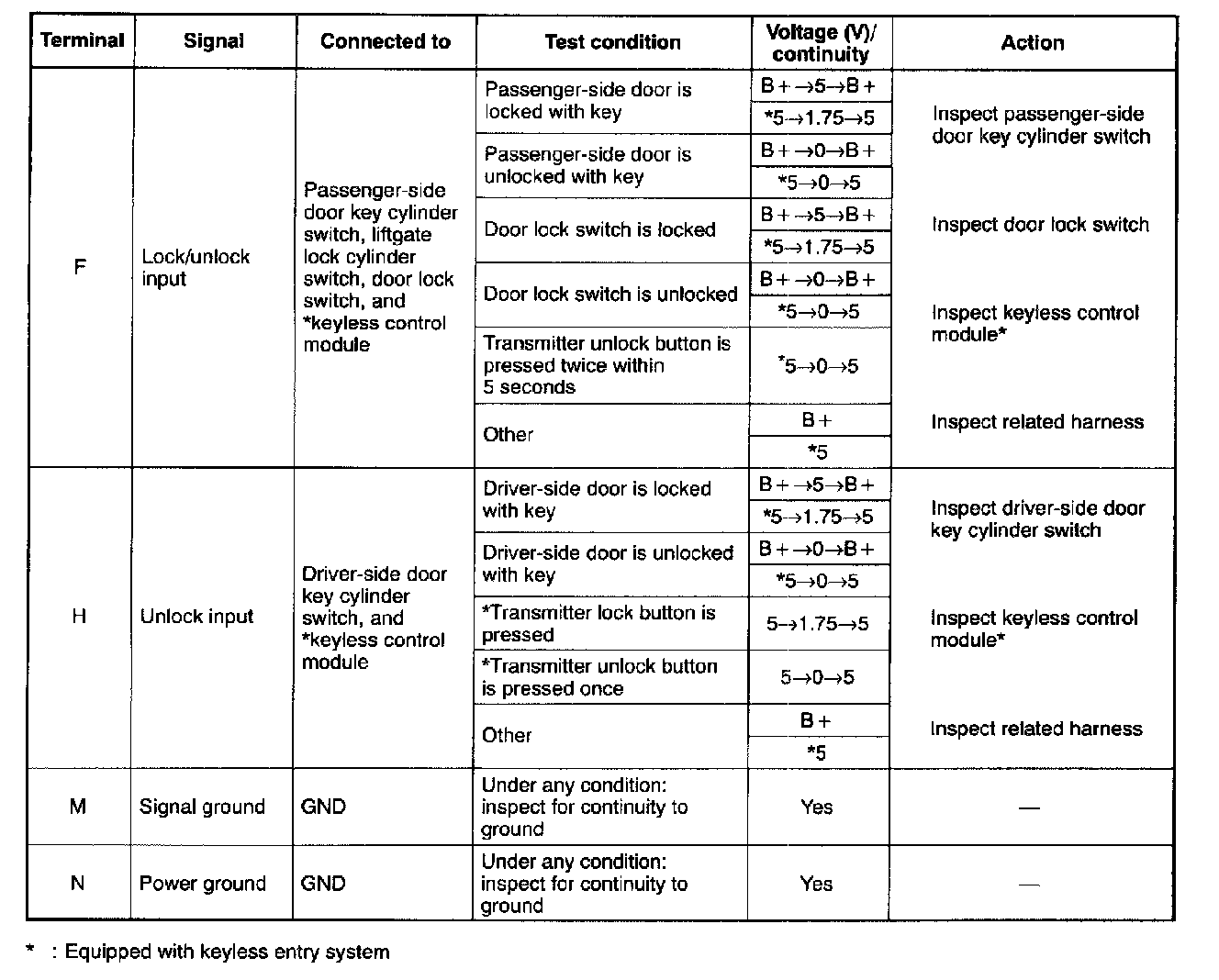

Terminal Voltage Table (Reference) - Pinouts (F - N):

2. Measure the voltage at the door lock control module terminals as indicated.
3. Disconnect the door lock control module connector before inspecting for continuity at terminals M, and N.
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the door lock control module.
