Toe Adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Mazda B4000, 2003 Mazda B3000, 2003 Mazda B2300, 2002 Mazda B4000, and 2002 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine and center the steering wheel.

Fig 1: Centering Steering Wheel
Courtesy of MAZDA MOTORS CORP.
Turn the engine off, and hold the steering wheel in the "straight forward" position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings. See WHEEL ALIGNMENT SPECIFICATIONS .

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.

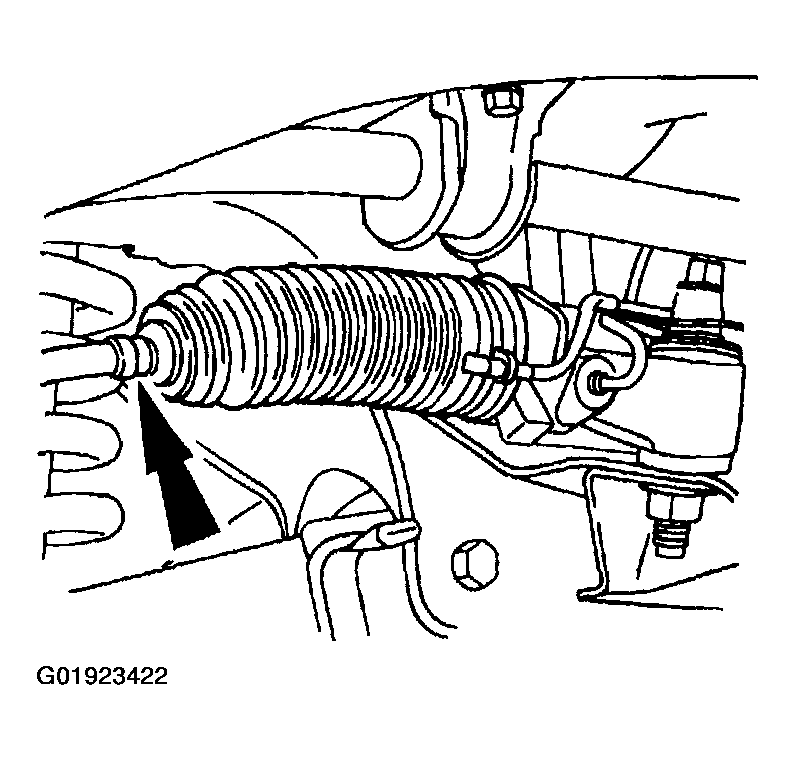

Fig 2: Removing Clamps

Courtesy of MAZDA MOTORS CORP.

Remove the clamps.
Loosen the nuts. Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

Fig 3: Loosening Front Wheel Spindle Tie Rod Lock Nuts
Courtesy of MAZDA MOTORS CORP.
Rotate the front wheel spindle tie rods.
Tighten the nuts.

Fig 4: Tightening Front Wheel Spindle Tie Rod Lock Nuts
Courtesy of MAZDA MOTORS CORP.
Install the clamps.
Recheck the toe settings. See WHEEL ALIGNMENT SPECIFICATIONS .
