Transverse Member Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

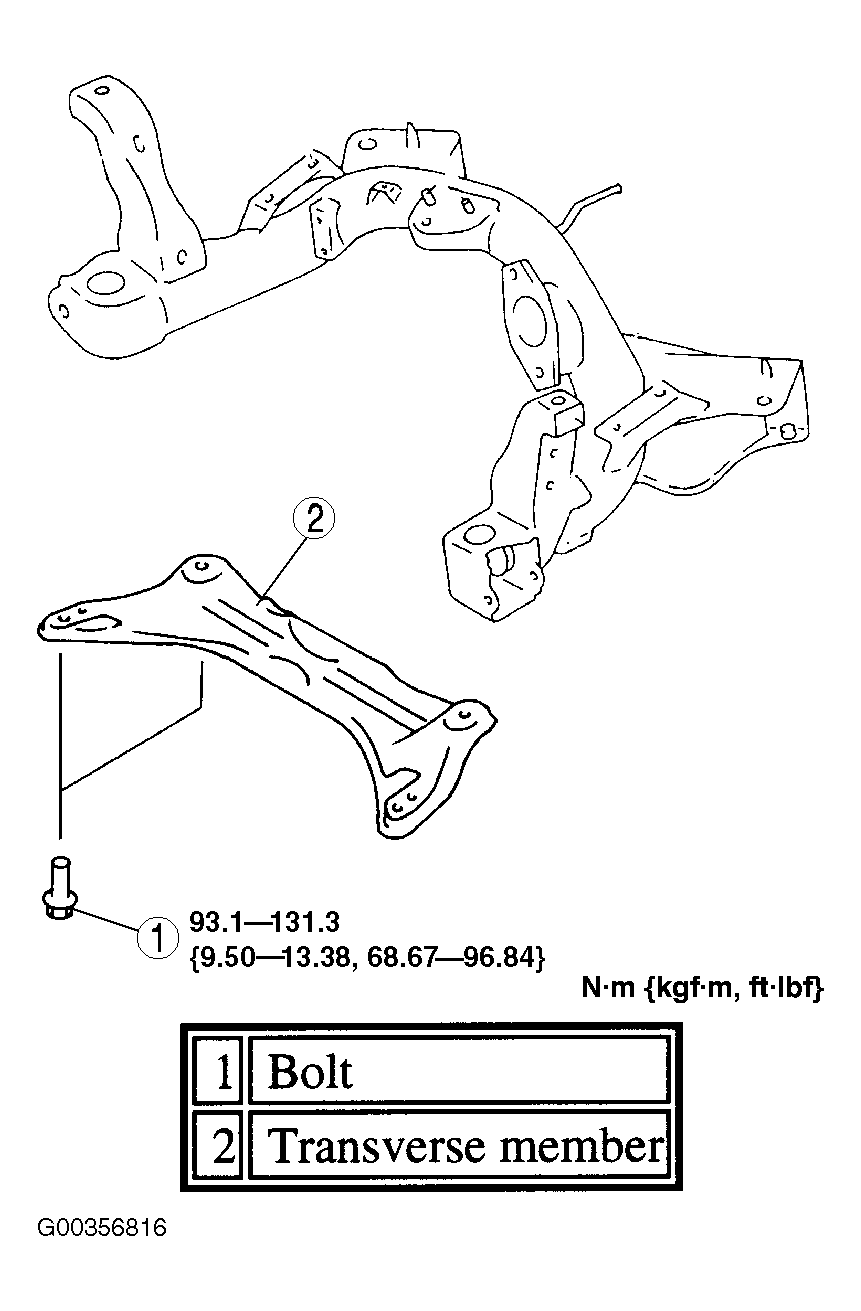

    Fig 1: Removing Transverse Member
    G00356816Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
