Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

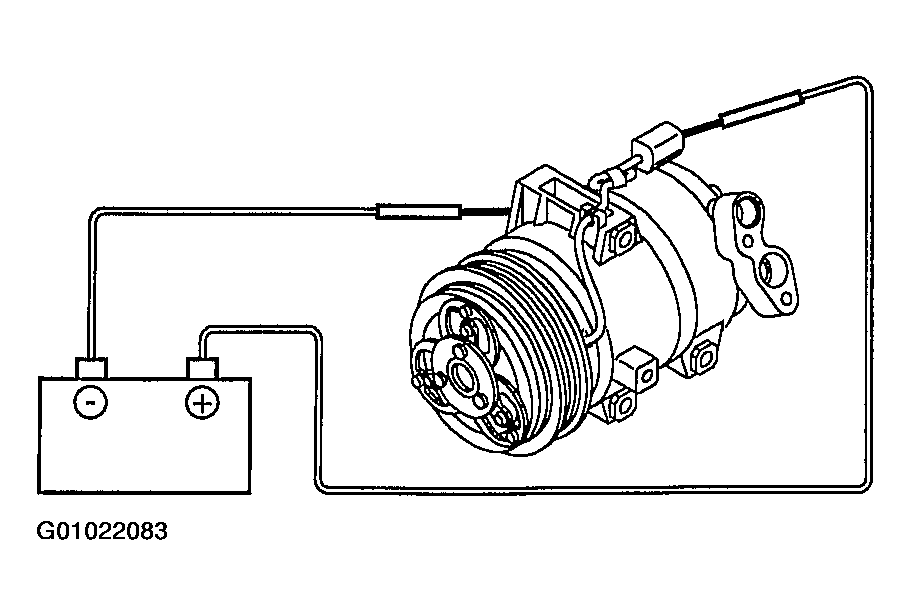

Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.

Fig 1: Testing A/C Compressor
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If not as specified, replace the stator.

  Fig 2: Identifying Magnetic Clutch Circuit
  Courtesy of MAZDA MOTORS CORP.
