DTC Table

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

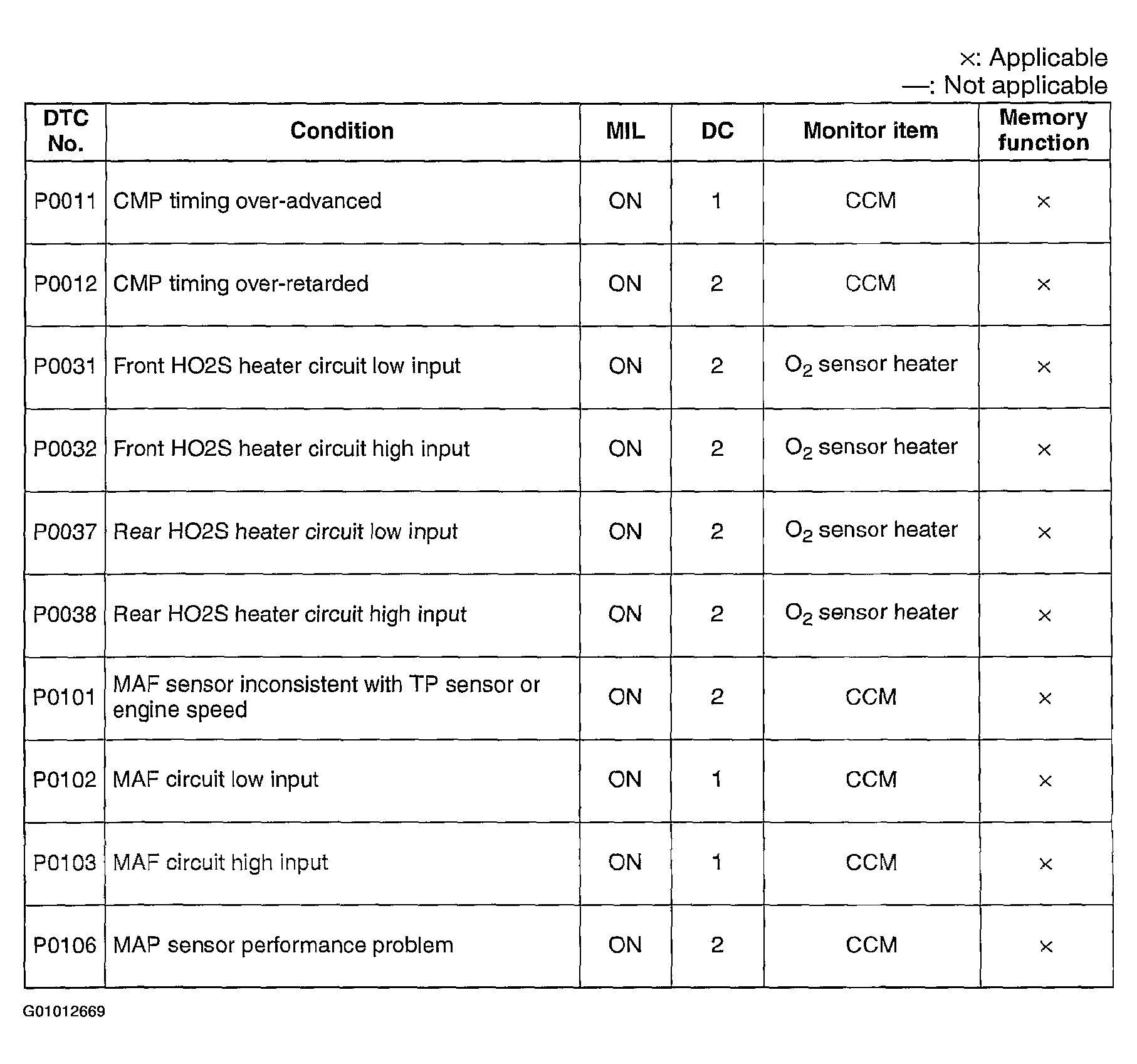

Fig 1: DTC P0011, P0012, P0031, P0032, P0037, P0038, P0101, P0102, P0103 & P0016 Definitions

Courtesy of MAZDA MOTORS CORP.

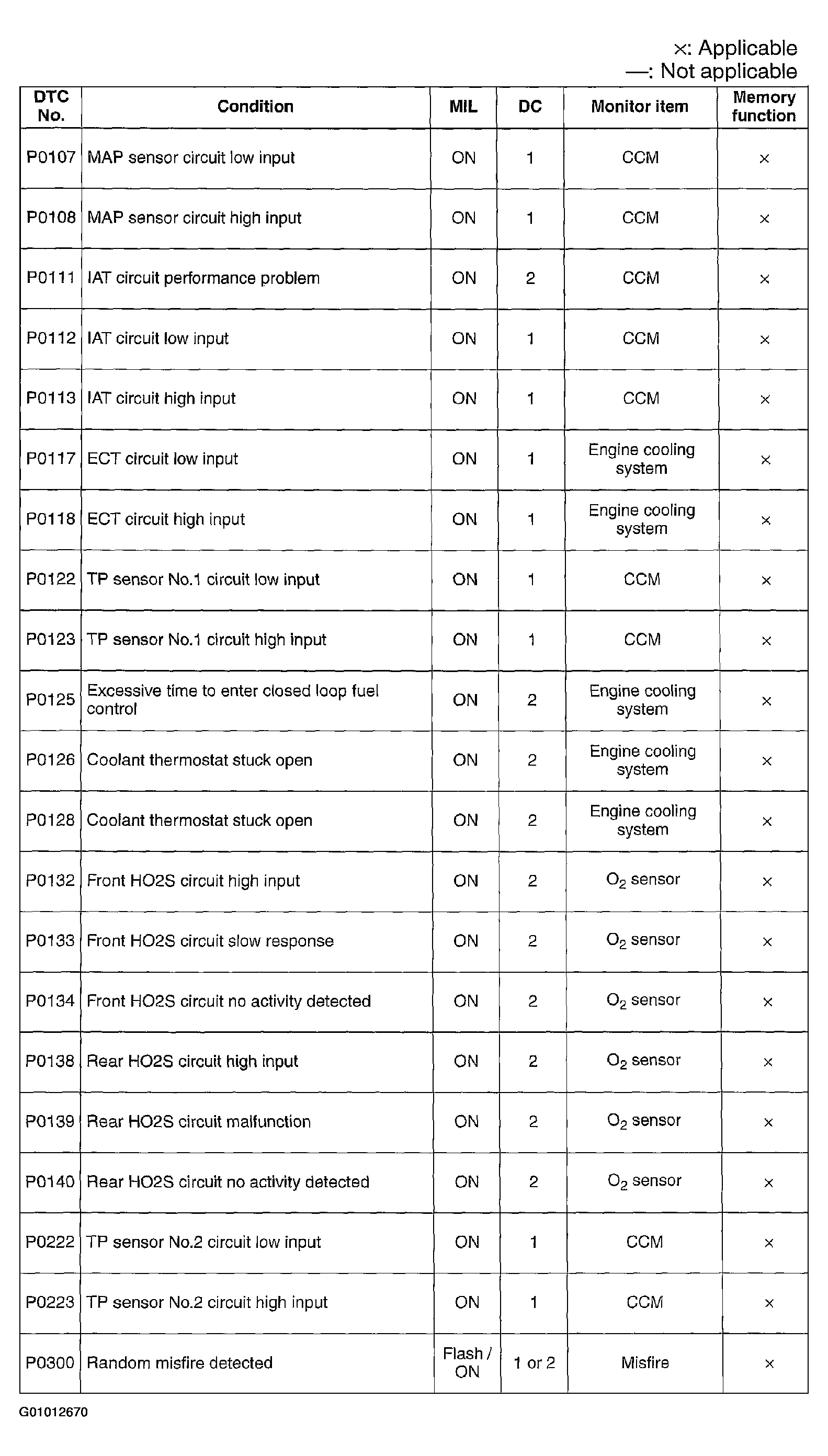

Fig 2: DTC P0107, P0108, P0111, P0112, P0113, P0117, P0118, P0122, P0123, P0125, P0126, P0128, P0132, P0133, P0134, P0138, P0139, P0140, P0222, P0223 & P0300 Definitions

Courtesy of MAZDA MOTORS CORP.

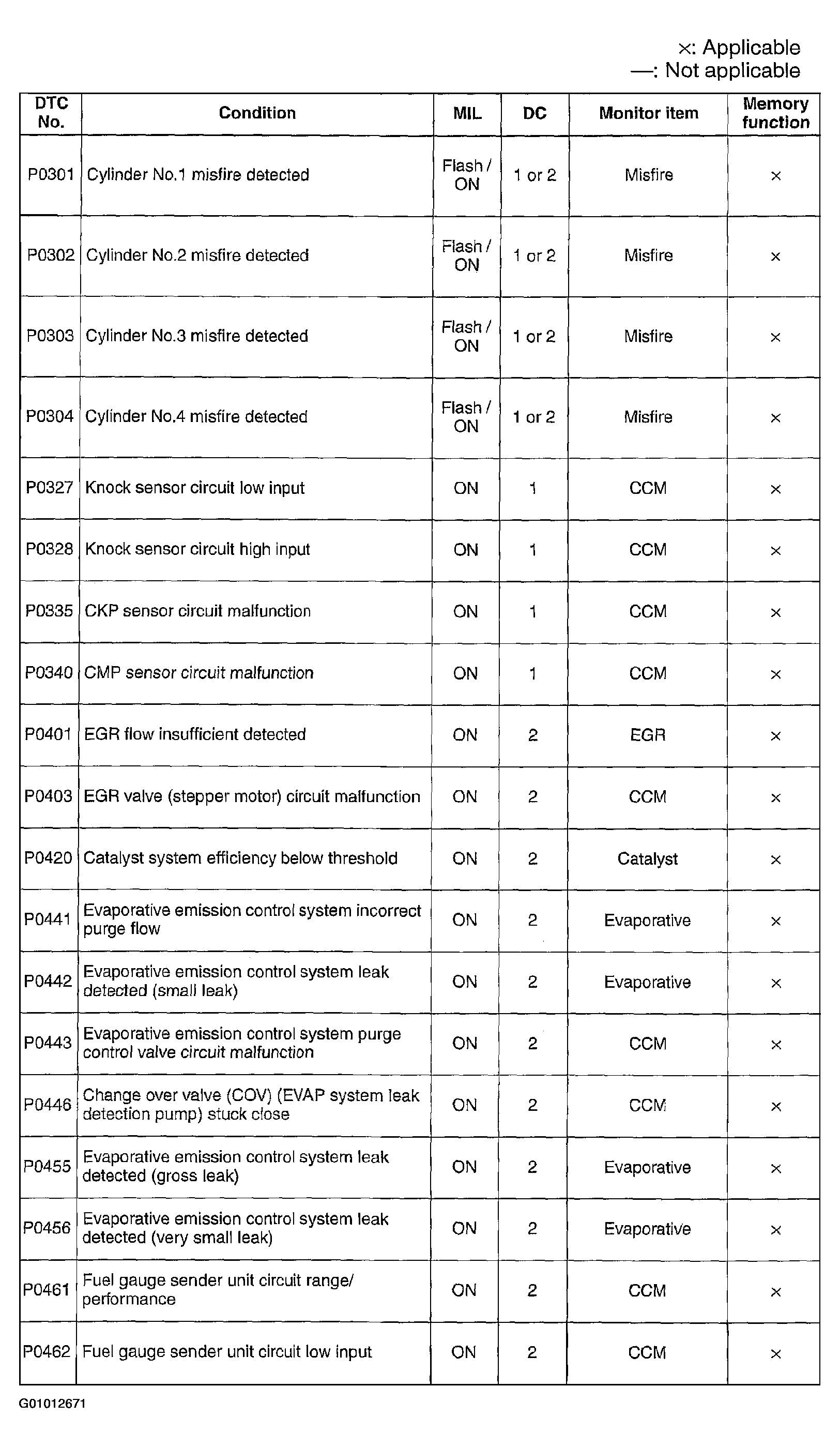

Fig 3: DTC P0301, P0302, P0303, P0304, P0327, P0328, P0335, P0340, P0401, P0403, P0420, P0441, P0442, P0443, P0446, P0455, P0456, P0461 & P0462 Definitions

Courtesy of MAZDA MOTORS CORP.

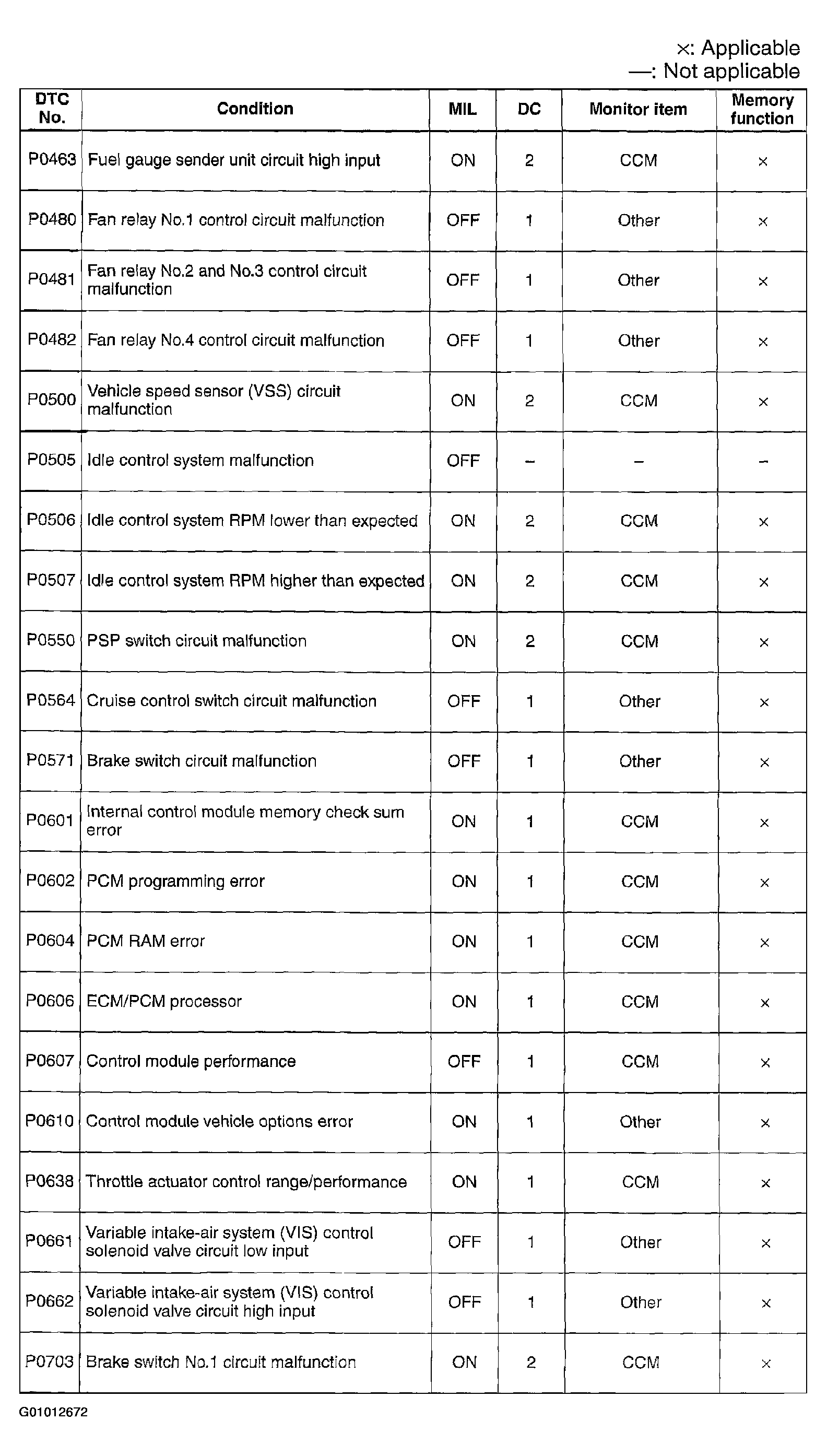

Fig 4: DTC P0463, P0480, P0482, P0500, P0505, P0506, P0507, P0550, P0564, P0571, P0601, P0602, P0604, P0606, P0607, P0610, P0638, P0661, P0662 & P0703 Definitions

Courtesy of MAZDA MOTORS CORP.

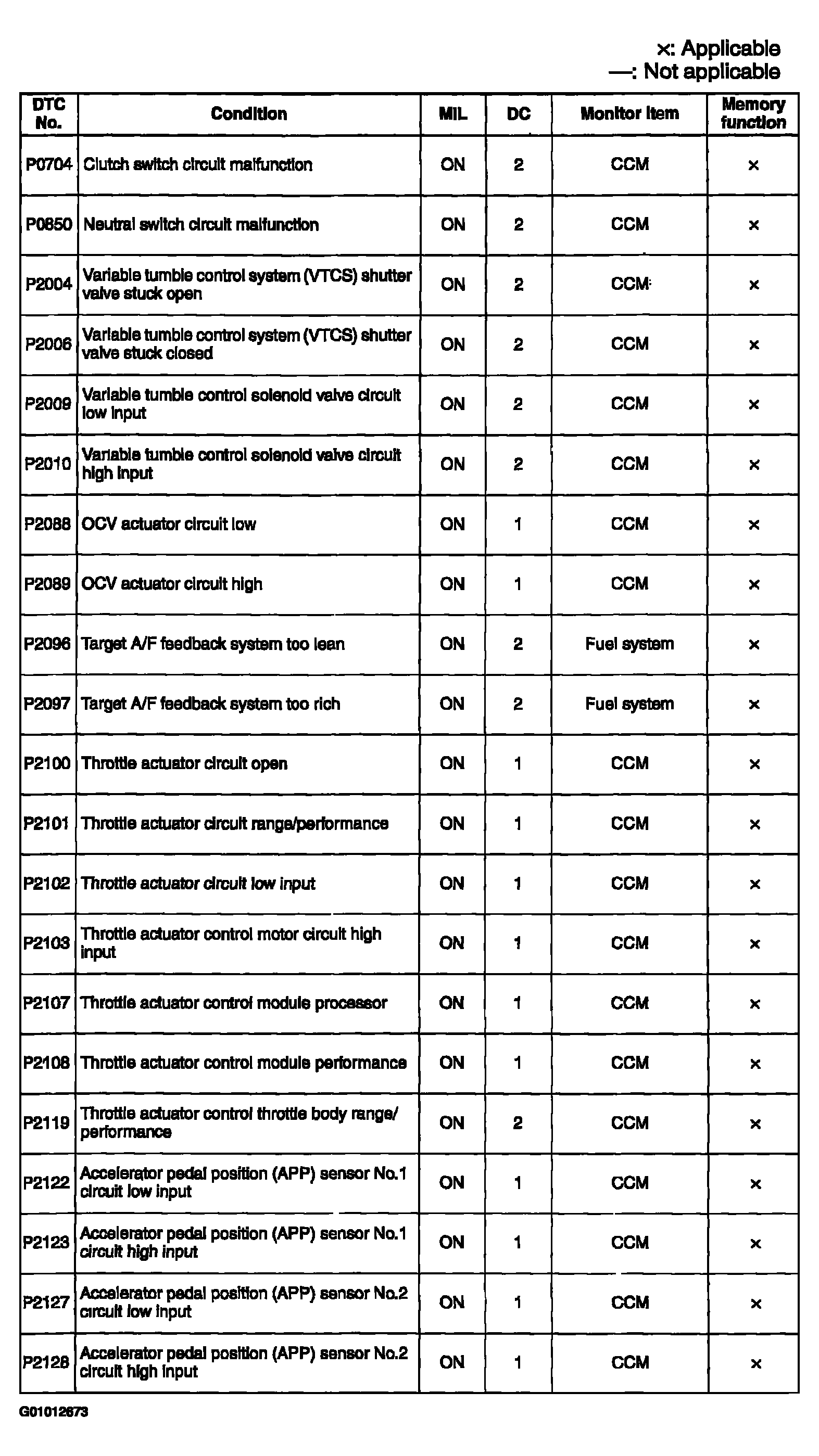

Fig 5: DTC P0704, P0850, P2004, P2006, P2009, P2010, P2088, P2089, P2096, P2097, P2100, P2101, P2102, P2103, P2107, P2108, P2119, P2122, P2123, P2127 & P2128 Definitions

Courtesy of MAZDA MOTORS CORP.

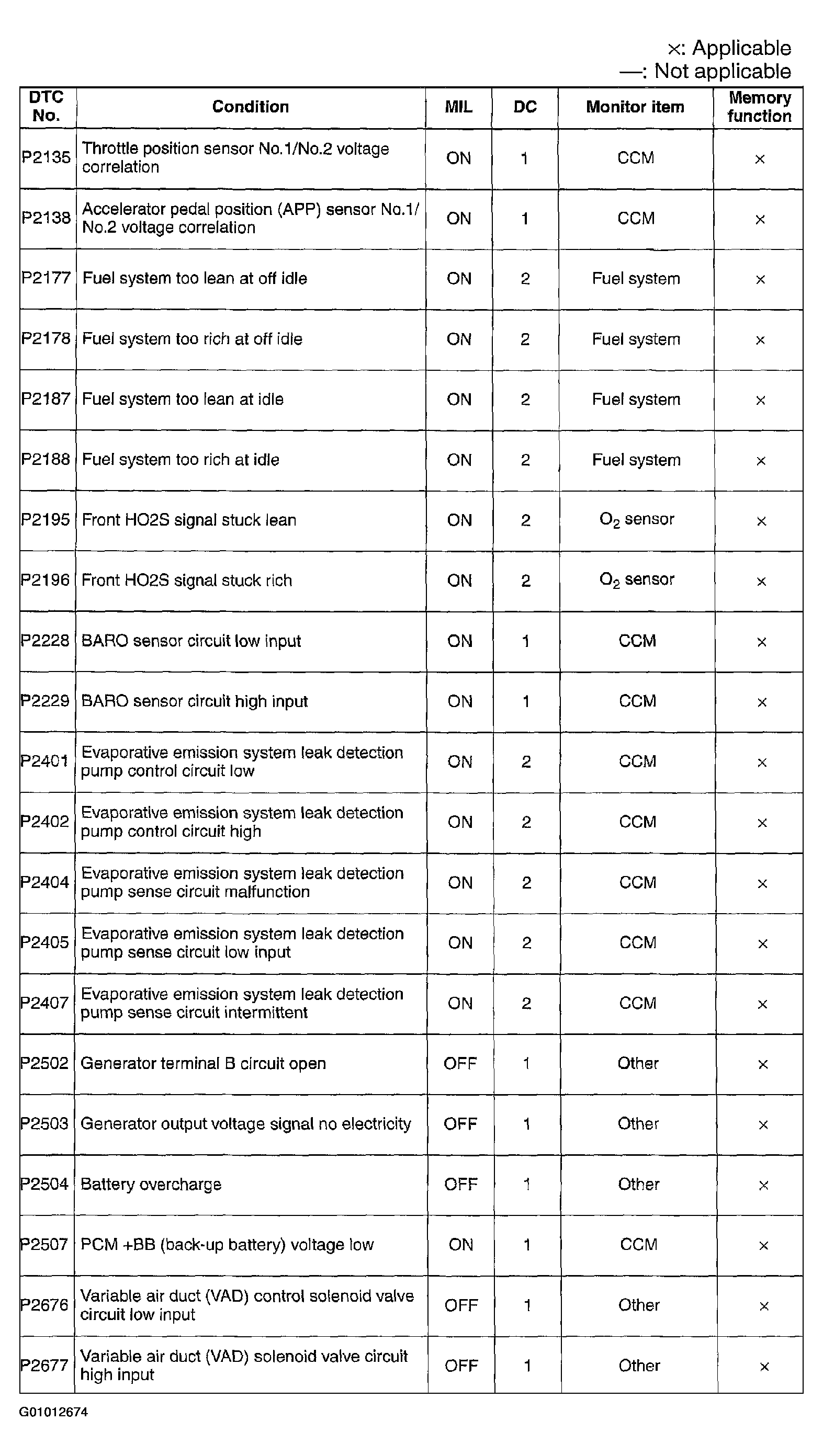

Fig 6: DTC P2136, P2138, P2177, P2178, P2187, P2188, P2195, P2196, P2228, P2229, P2401, P2402, P2404, P2405, P2407, P2502, P2503, P2504, P2507, P2676 & P2677 Definitions

Courtesy of MAZDA MOTORS CORP.
