Water Pump Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery and battery tray.
Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (see ENGINE COOLANT REPLACEMENT .)
Remove the water pump drive pulley.
Remove in the order indicated in the table.

Fig 1: Removing/Installing Order Of Water Pump
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

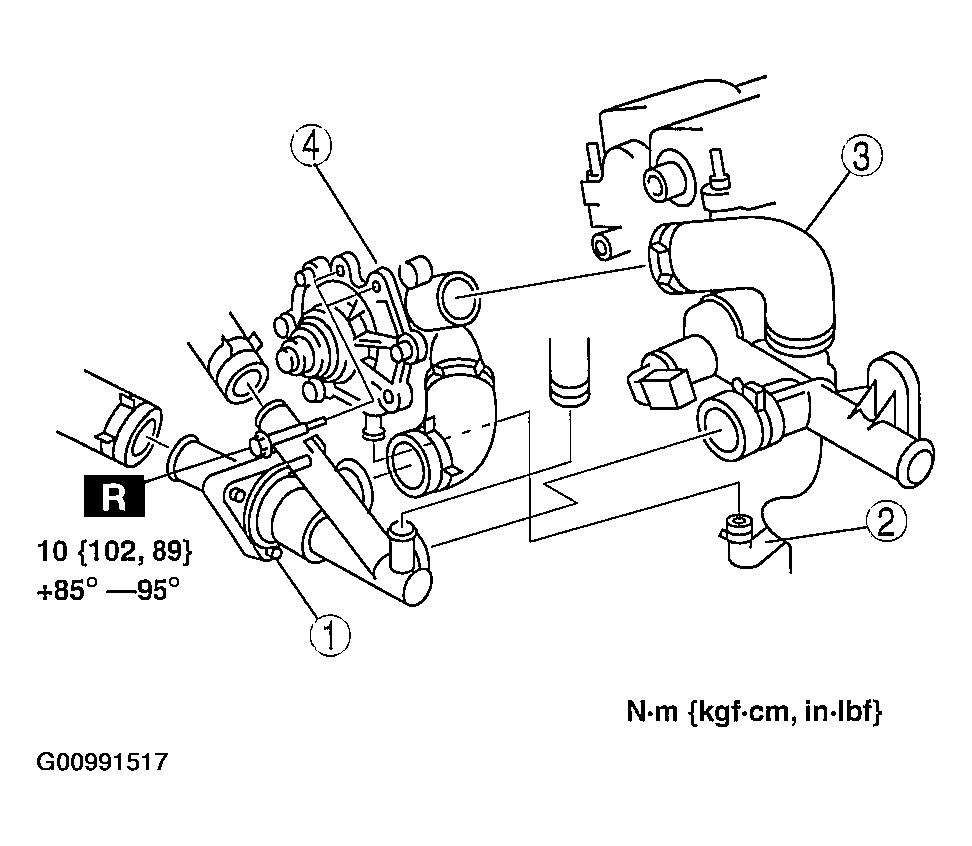

Fig 2: Removing/Installing Water Pump
Courtesy of MAZDA MOTORS CORP.
