Radiator Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Remove the air cleaner. (See L3: INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] , AJ: INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
  4. Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION .)
  5. Remove the cooling fan. (See COOLING FAN REMOVAL/INSTALLATION .)
  6. Disconnect the upper radiator hose from the radiator. (L3 engine model)
  7. Disconnect the oil hose from the radiator. (ATX)
  8. Remove the coolant reservoir hose. (AJ engine model)
  9. Remove in the order indicated in Fig 1.

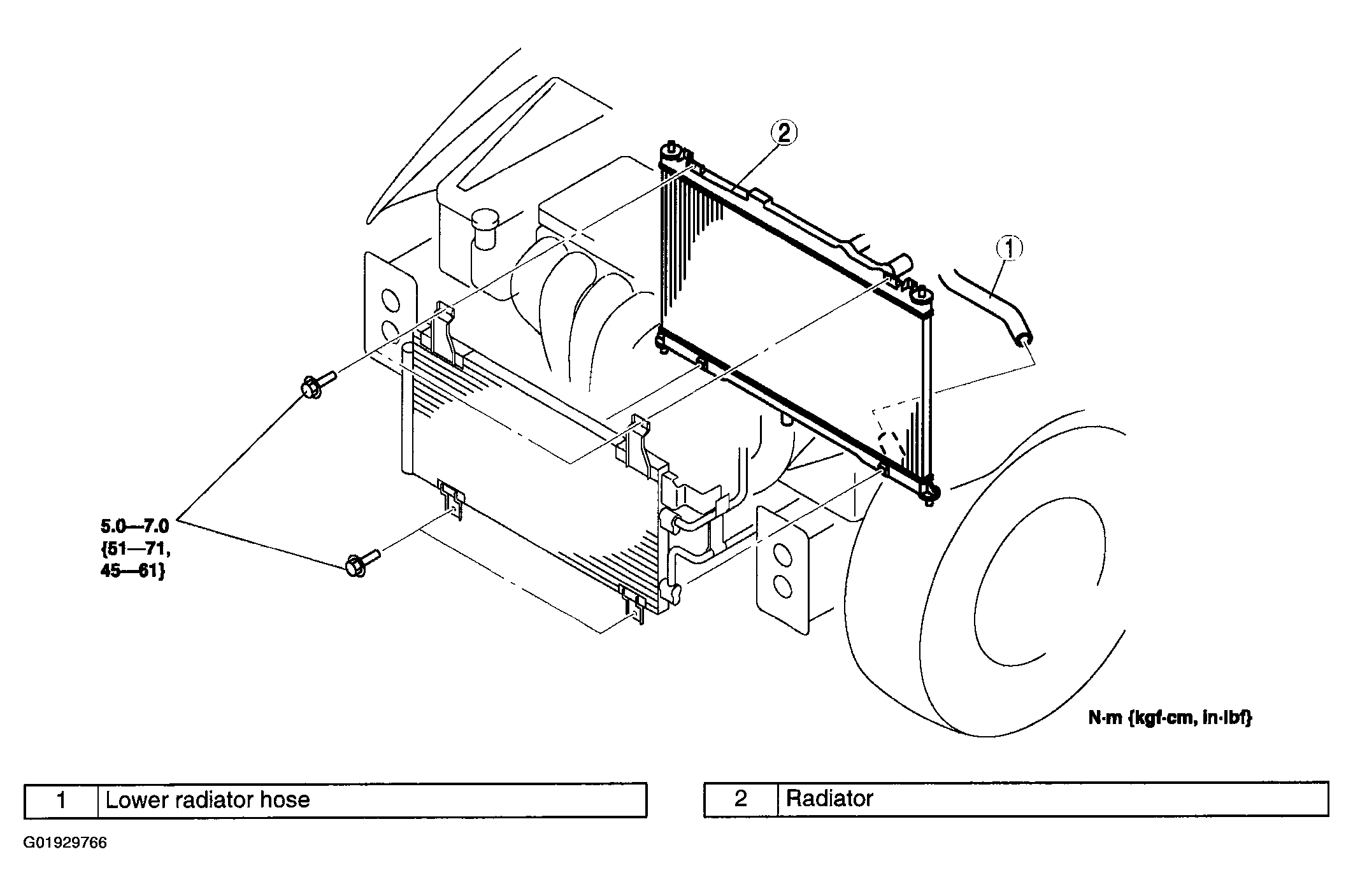

    Fig 1: Removing/Installing Radiator
    G01929766Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of the removal.
  11. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  12. Inspect the engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
