Climate Control Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the tables.

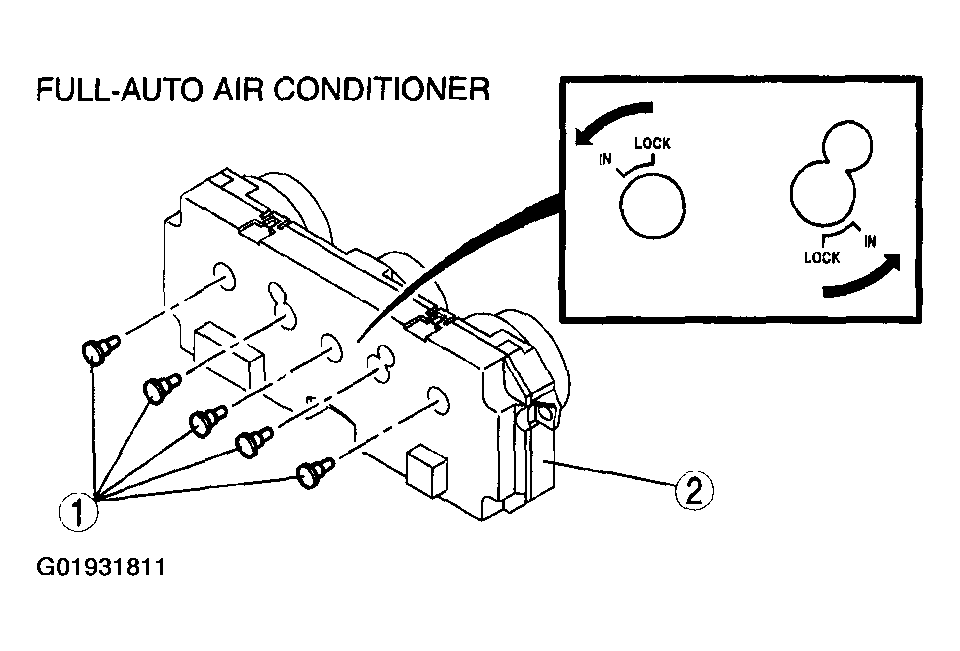

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY- FULL-AUTO AIR


1	Illumination Bulb
2	Body

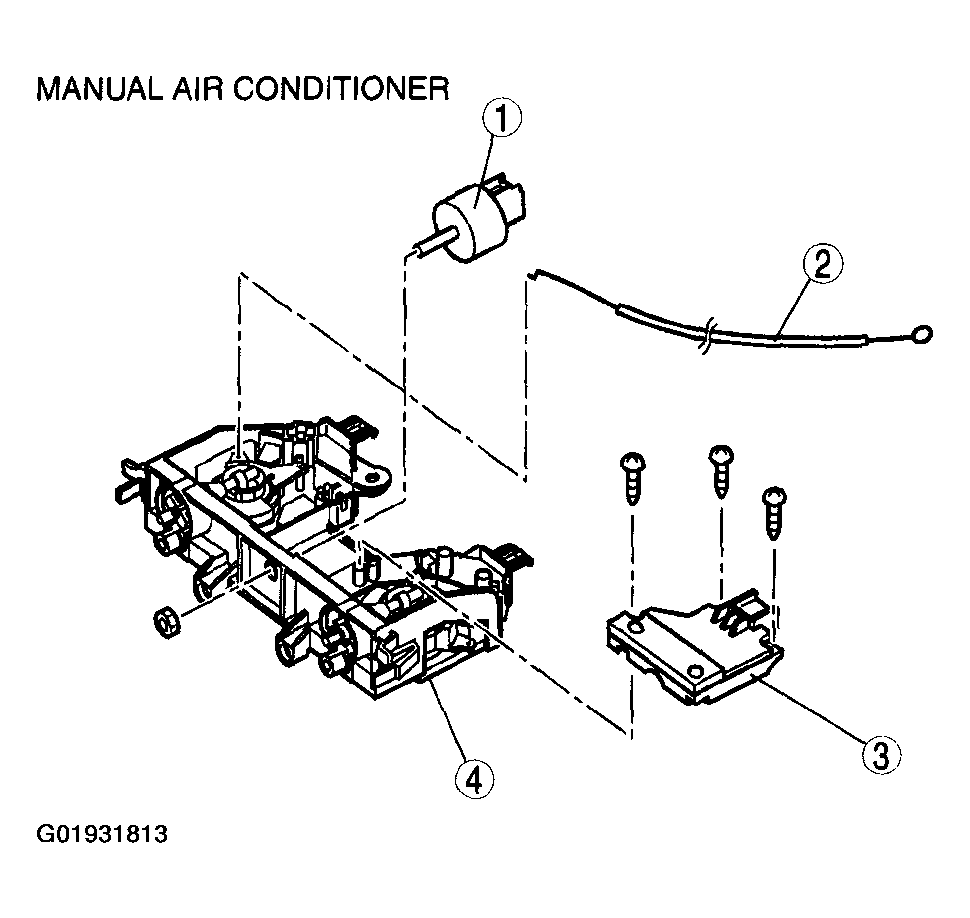

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY- MANUAL AIR


1	Fan Switch
2	Air Mix Wire
	(See WIRE DISASSEMBLY NOTE .)
	(See WIRE ASSEMBLY NOTE .)
3	Mode Switch
4	Body

Assemble in the reverse order of disassembly.
