Control System Location Index

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

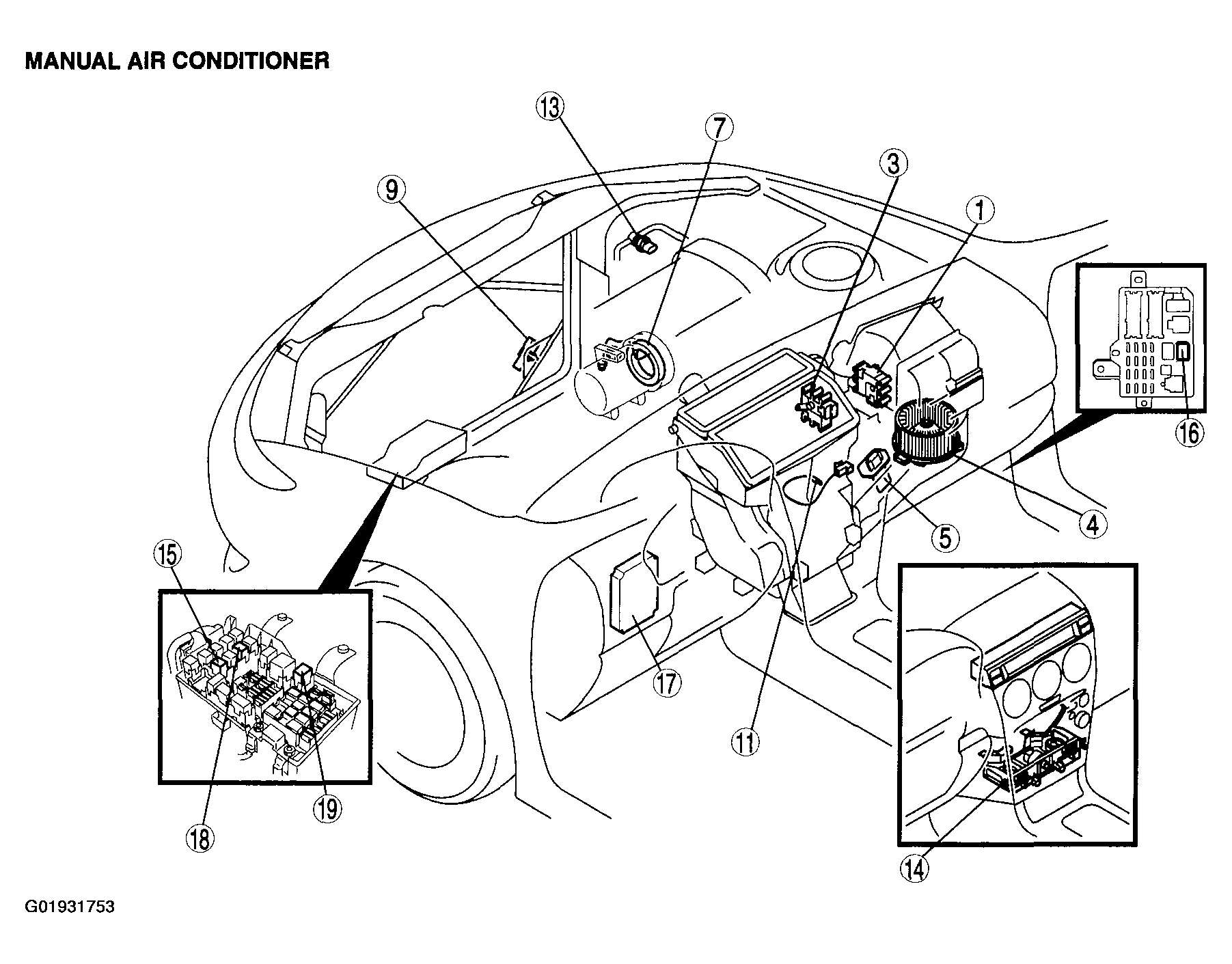

Fig 1: Control System Location Index - Manual Air

Courtesy of MAZDA MOTORS CORP.

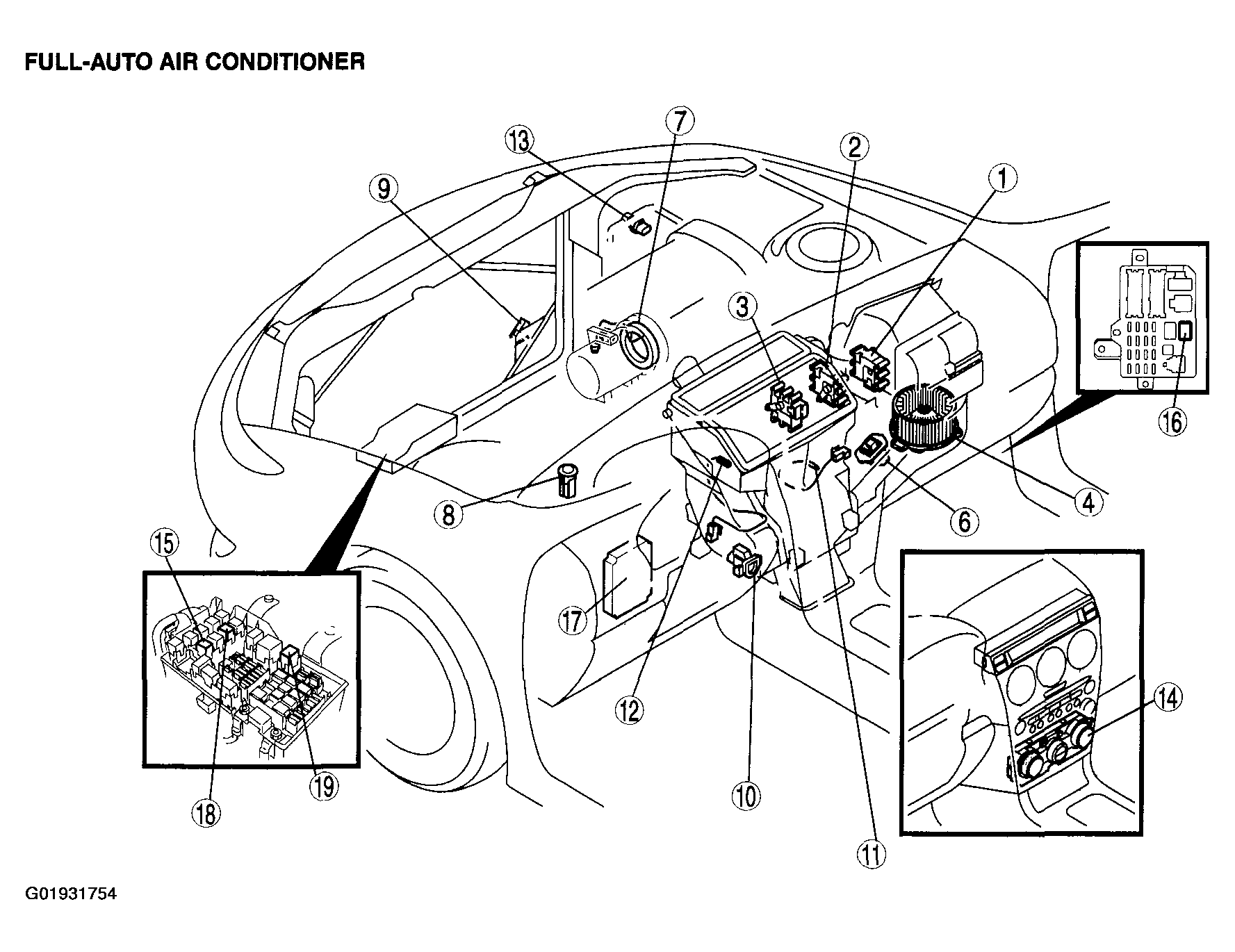

Fig 2: Control System Location Index - Full Auto Air

Courtesy of MAZDA MOTORS CORP.

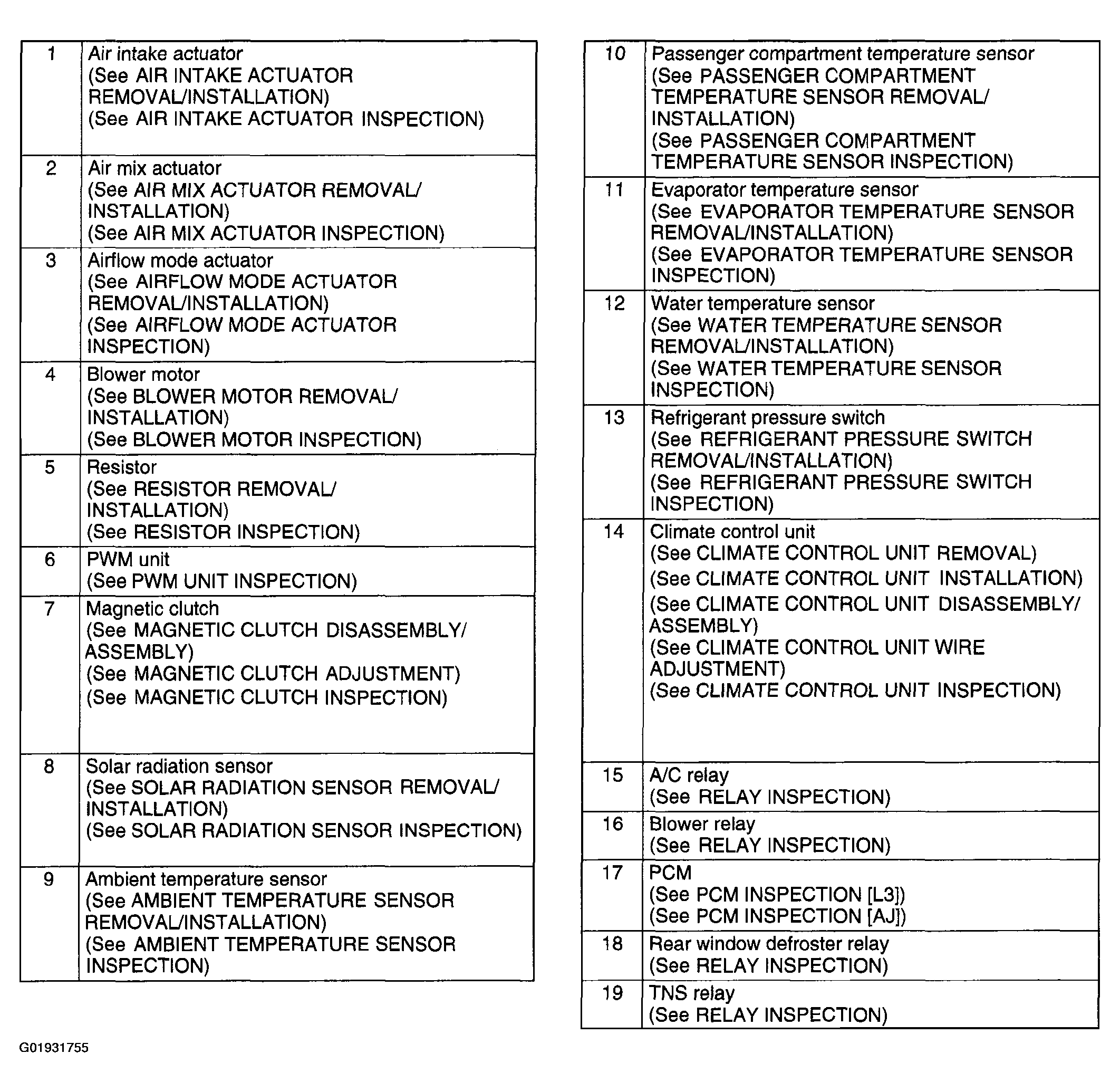

Fig 3: Control System Location Index - Legend

Courtesy of MAZDA MOTORS CORP.
