Customer Spare Key Programming Without Using SST (WDS) Set-up

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

With this function, With this function, enabling and disabling of the "When the customer has two or more valid keys" function can be set using the SST (WDS). This function is provided to prohibit drivers from performing the reprogram procedure on vehicles owned by rental car companies or other large vehicle fleet owners.

Connect the SST (WDS).
Using valid or new key, turn ignition switch to the ON position.
Perform security access approval. (See SECURITY ACCESS PROCEDURE .)
Select "Customer Spare Key Programming Enable/Disable".
The following chart indicates setting of the customer spare key programming.

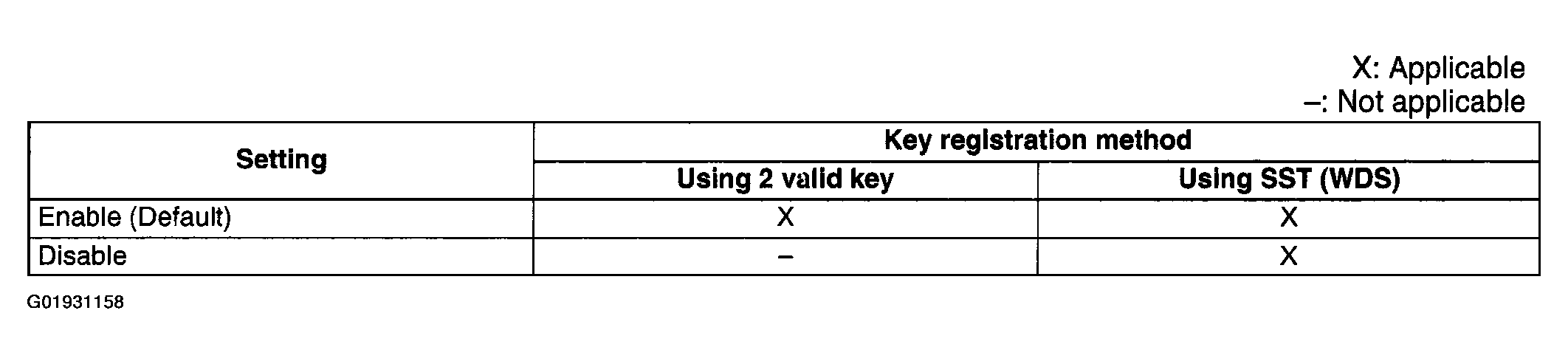

Fig 1: Customer Spare Key Programming Setting And Key Registration Method Chart
Courtesy of MAZDA MOTORS CORP.
NOTE:
- At the time of new vehicle delivery, the function is set on "Enable".
