Key registration using SST (WDS)

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Additional keys can be registered without having to erase the key codes already registered.
If 8 keys have already been registered, this procedure cannot be used to register a key. To register a key under this condition, it is necessary to first erase all the key codes. (See KEY REPLACEMENT )

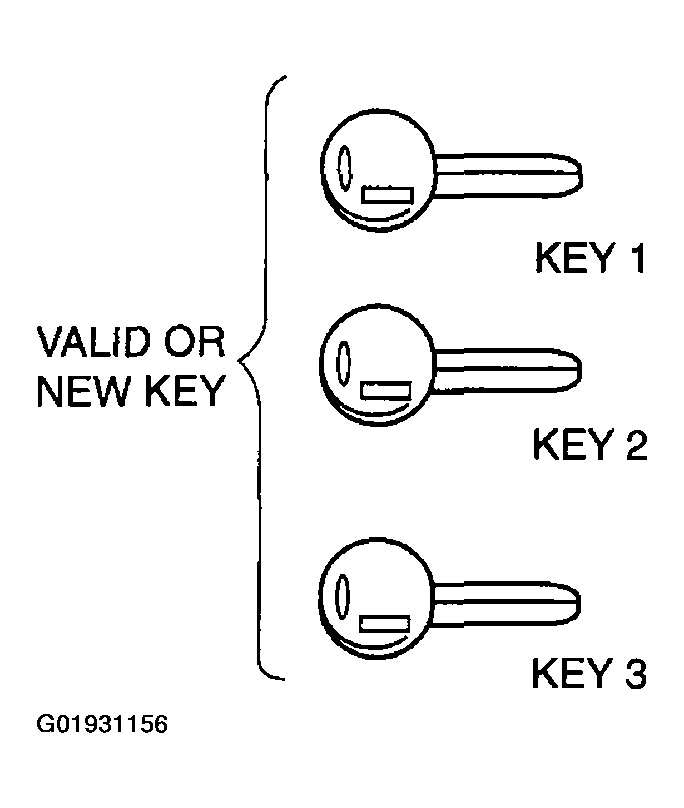

Fig 1: Identifying Valid Or New Keys For Registration

Courtesy of MAZDA MOTORS CORP.

Cut new transponder equipped key(s) if necessary.
Connect the SST (WDS).
Using key 1, turn ignition switch to the ON position.
- Valid key: The security light illuminates, then turns off after approx. 3 seconds.
- New key: The security light flashes rapidly for approx. 1 minute and start displaying the DTC 15 (WDS: DTC B1601).
1. Perform security access approval. (See SECURITY ACCESS PROCEDURE .)
2. Select "Program additional ignition key".
3. Turn key 1 to the LOCK position and remove from the steering lock.
Using key 2, turn ignition switch to the ON position.
1. Select "Program additional ignition key".
2. Turn key 2 to the LOCK position and remove from the steering lock.
If there are 3-8 keys (new keys), repeat Step 4.
Verify that the engine starts using the registered key.
