Console Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figures.

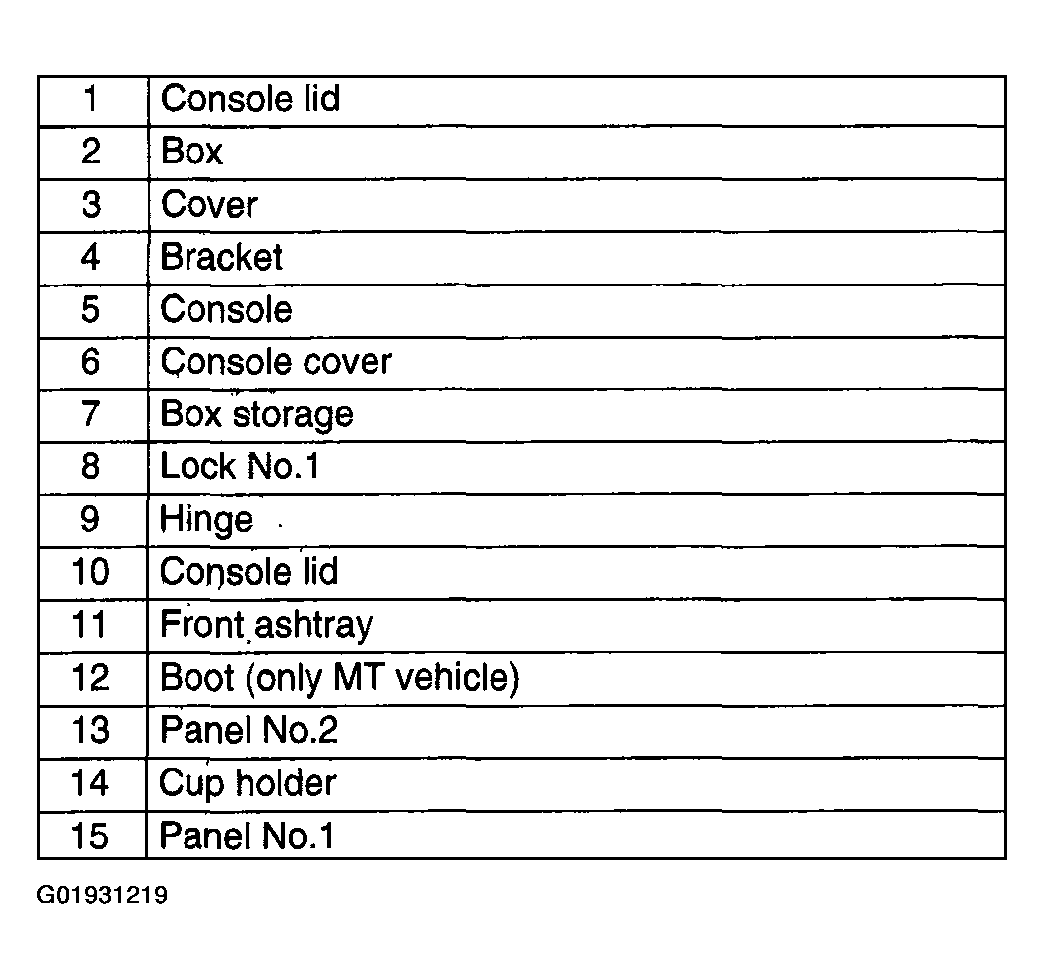

Fig 1: Disassembling Console (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

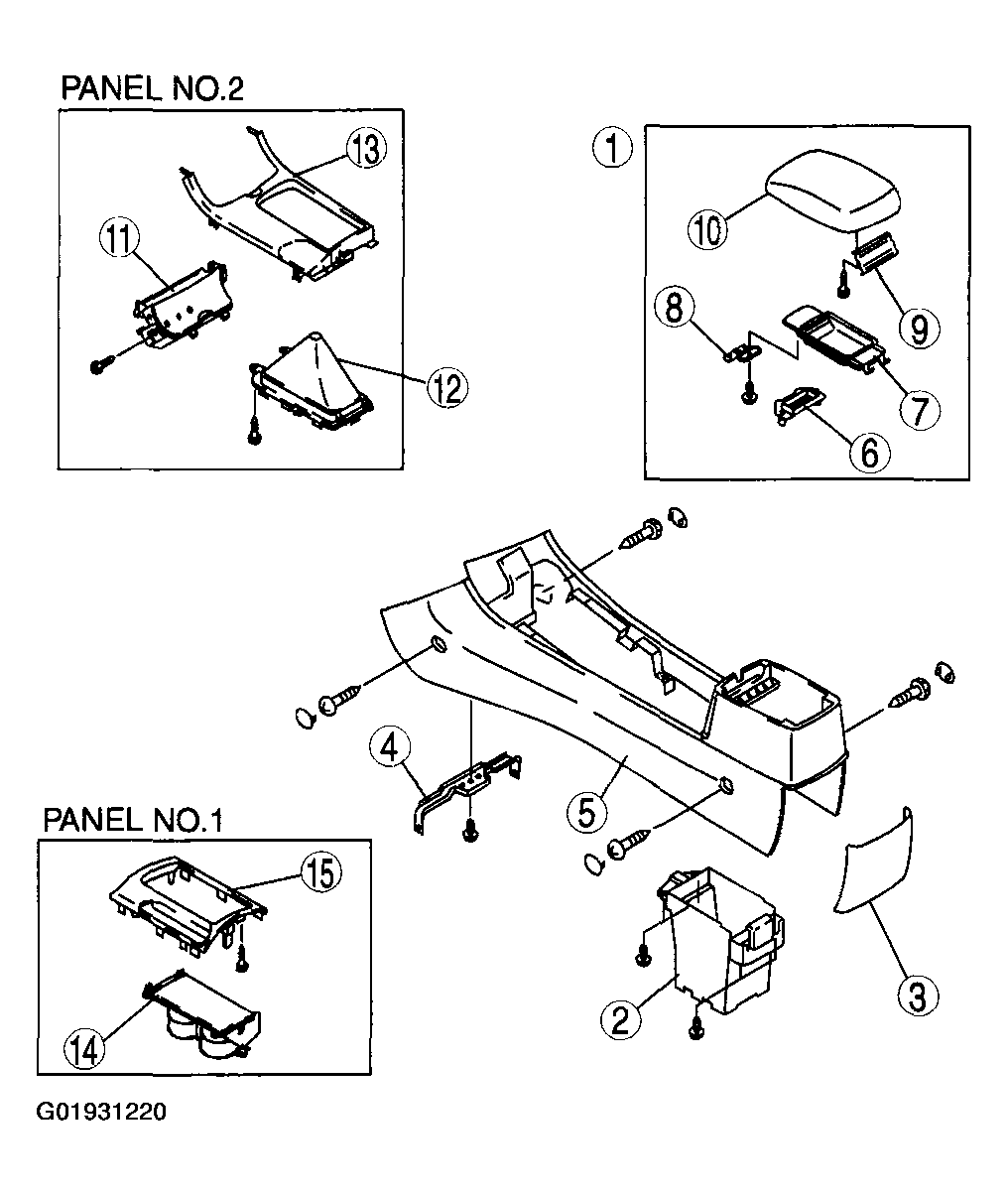

Fig 2: Disassembling Console (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
