Console Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
For MTX vehicle, remove the shift lever knob.
Remove the panel No. 1 using a tape-wrapped screwdriver. See Fig 1 .
Remove the panel No. 2 using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and remove the front ashtray illumination. See Fig 1 .
Remove the bolts.
Disconnect the accessory socket connector.

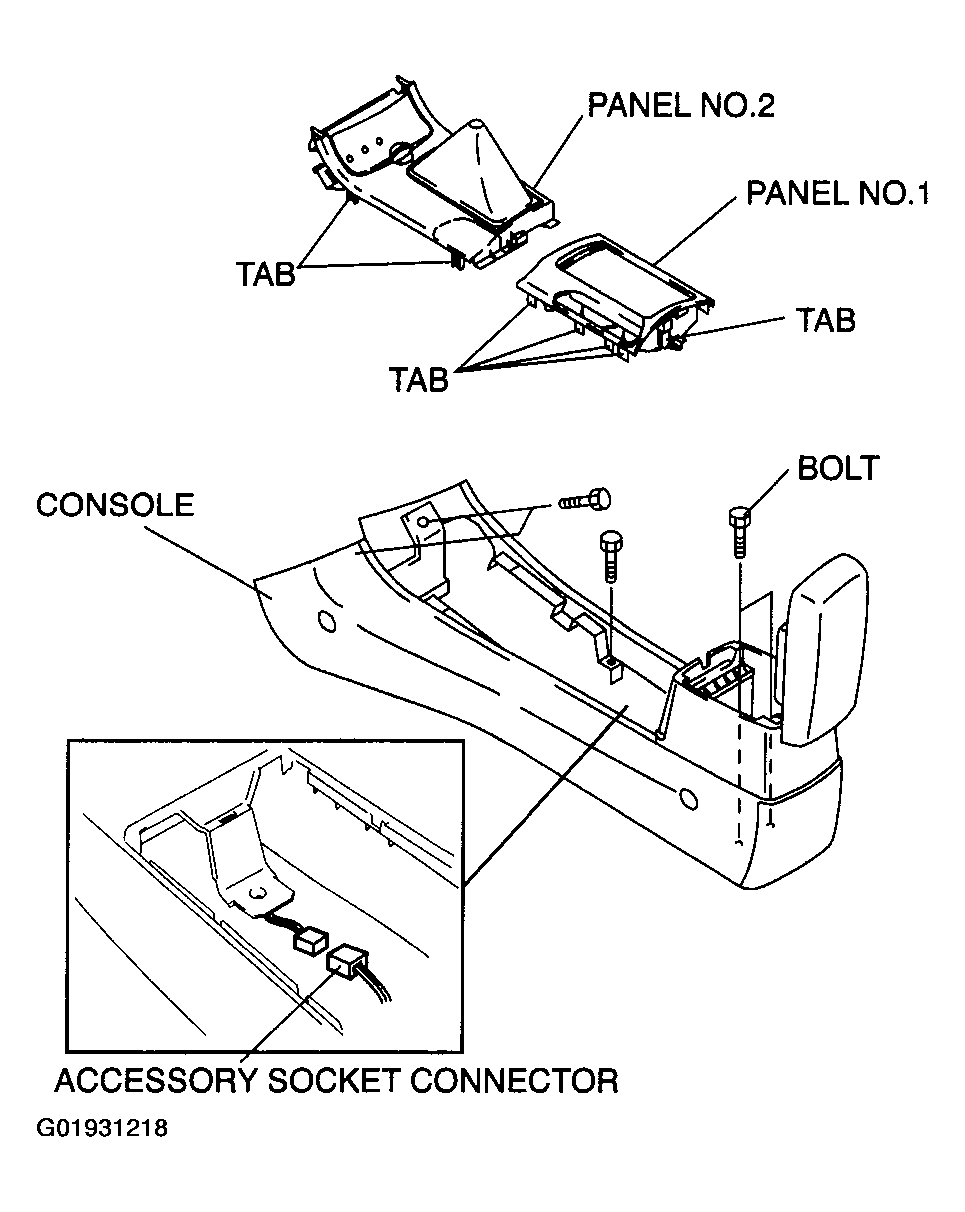

Fig 1: Disconnecting Accessory Socket Connector And Removing Console
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
