Instrument Cluster Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. If the configuration procedure is not performed before removing the instrument cluster, it is possible that the instrument cluster will not operate normally.
  1. Configure the instrument cluster (only when replacing it). (See INSTRUMENT CLUSTER CONFIGURATION  .)
  2. Disconnect the negative battery cable.
  3. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
  4. Pull the steering wheel toward you.
  5. Remove the meter hood.
  6. Remove in the order indicated in the figure below.
    Fig 1: Instrument Cluster Removal Order Table
    G01931458Courtesy of MAZDA MOTORS CORP.

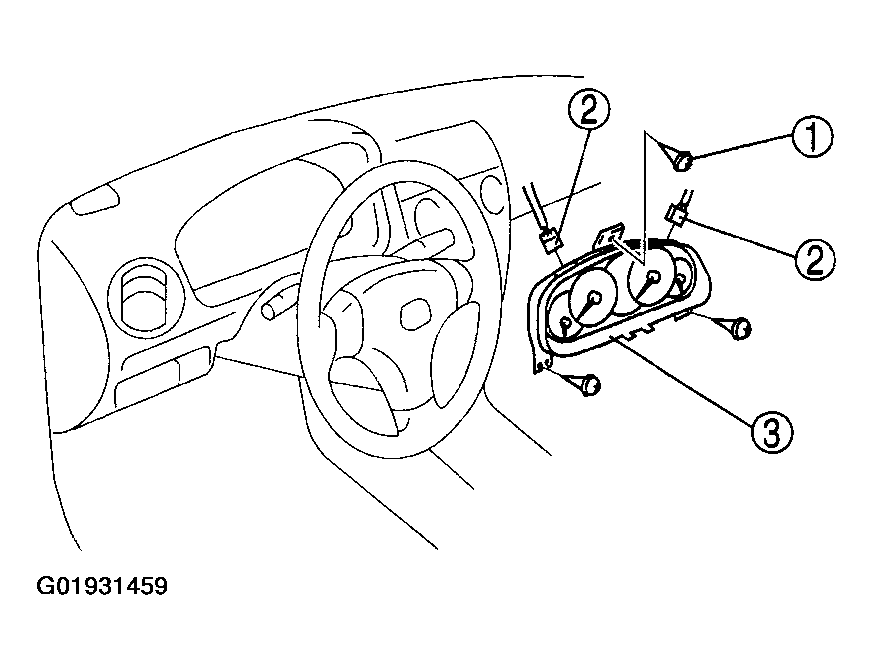

    Fig 2: Removing Instrument Cluster
    G01931459Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
