PID/Data Monitor And Record Procedure: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Connect the SST (WDS or equivalent) to the vehicle DLC-2 16-pin connector.
Access and monitor PIDs using the SST (WDS or equivalent).

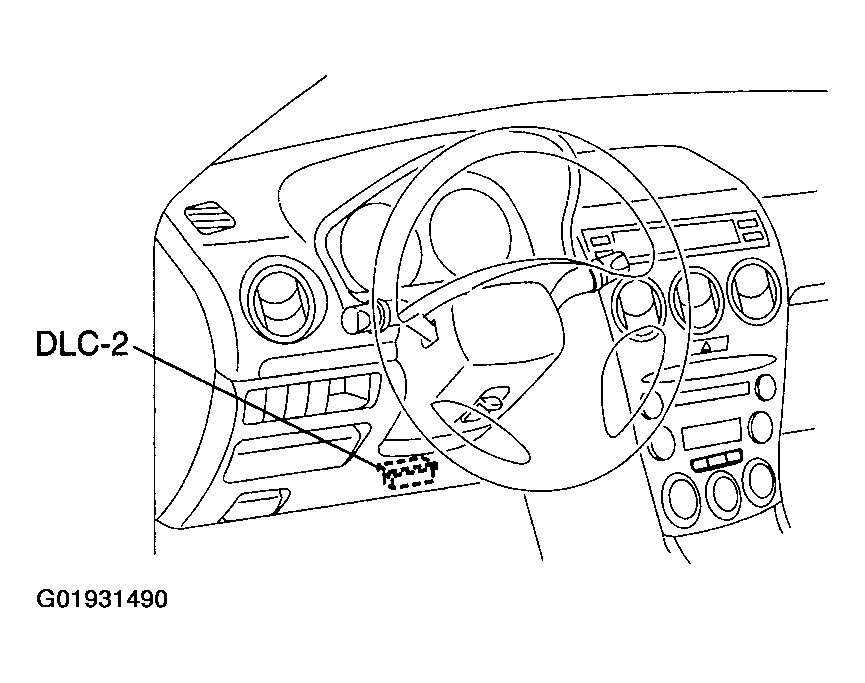

Fig 1: Locating DLC-2 16-Pin Connector
Courtesy of MAZDA MOTORS CORP.
