Front Crossmember Bushing Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Set the bushings as shown in the figure.
NOTE:
- The bushings must be installed with correct orientation as shown below, or increased noise and vibration may result.

  Fig 1: Installing Front Crossmember Bushing (Front)
  Courtesy of MAZDA MOTORS CORP.

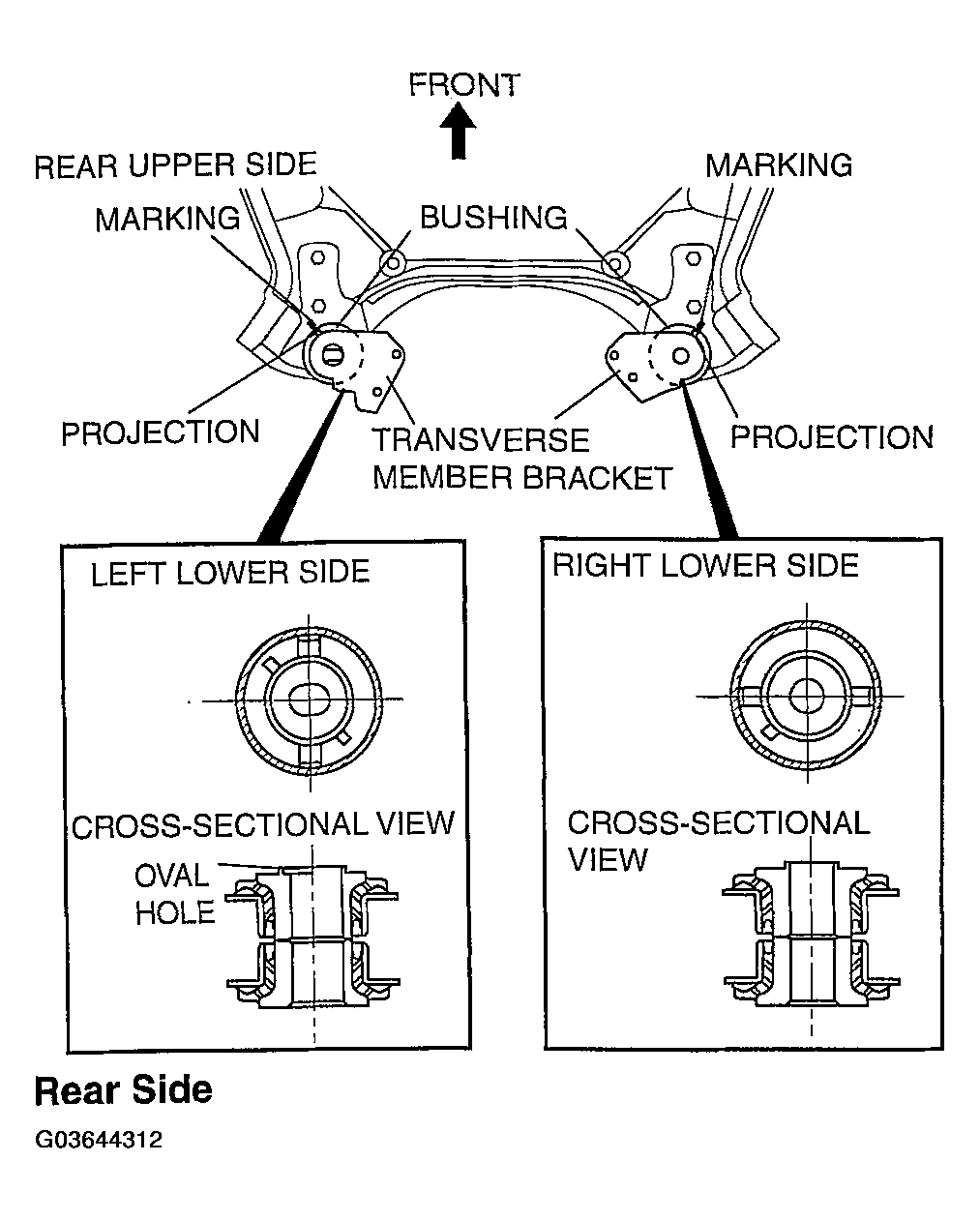

  Fig 2: Installing Front Crossmember Bushing (Rear)
  Courtesy of MAZDA MOTORS CORP.
Install the bushing onto the crossmember using the SSTs.

Fig 3: Installing Bushing Onto Crossmember
Courtesy of MAZDA MOTORS CORP.
