Front Lower Arm (Front) Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the TWC (AJ) (only when removing/installing the right side front lower arm (front)). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [AJ] .)
Remove in the order indicated in the table.

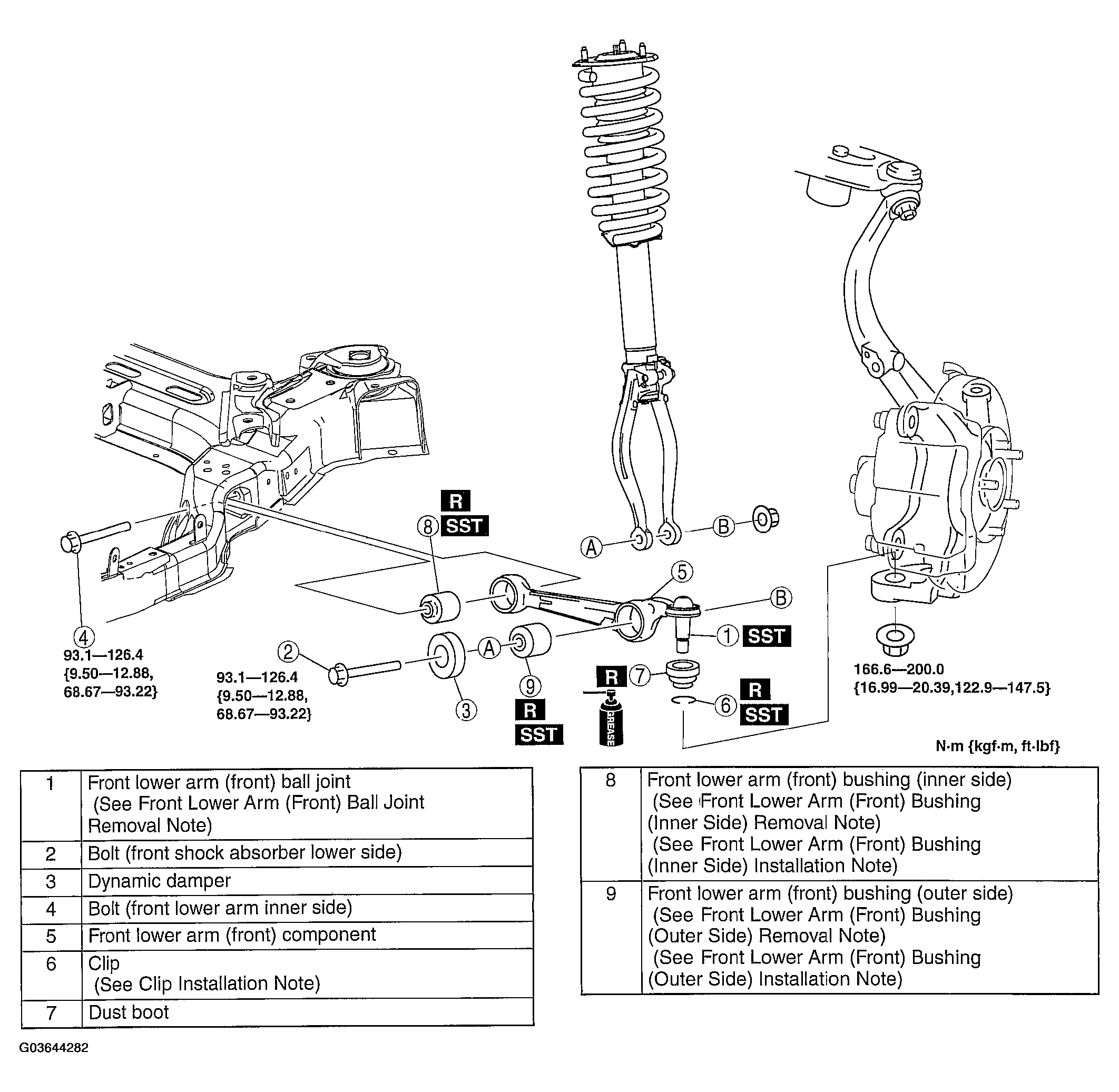

Fig 1: Removing/Installing Front Lower Arm (Front) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
