Power Brake Unit Function Check (Inspection Using The Testers): Notes
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

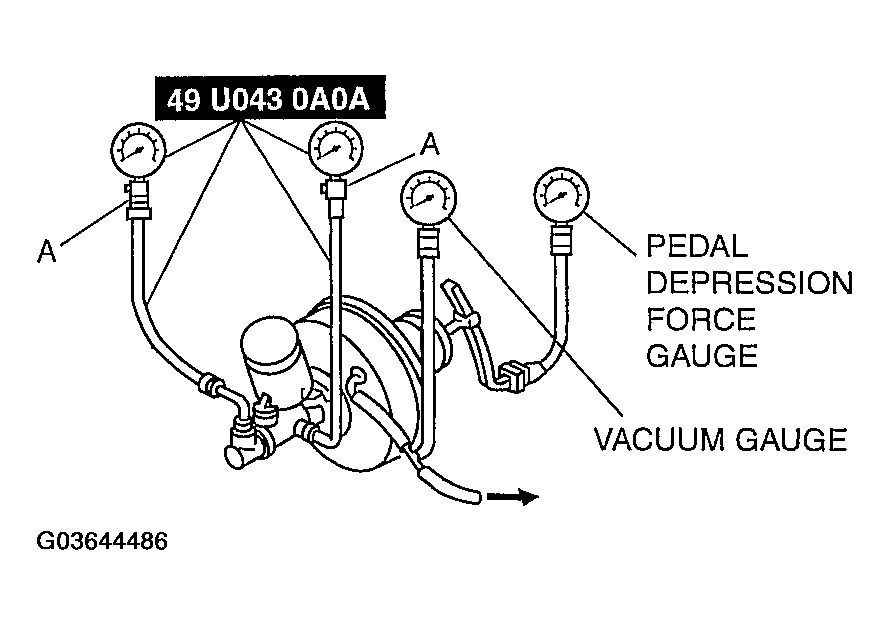

- Connect the SSTs,
vacuum gauge, and pedal depression force gauge as shown in the figure to bleed the air from the SSTs
and brake line. (Bleed the air from the SSTs
using a air bleed valve A.)
Courtesy of MAZDA MOTORS CORP.
