Resistor Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the resistance between the terminals of the resistor is as shown in the table.
- If not as specified, replace the resistor.

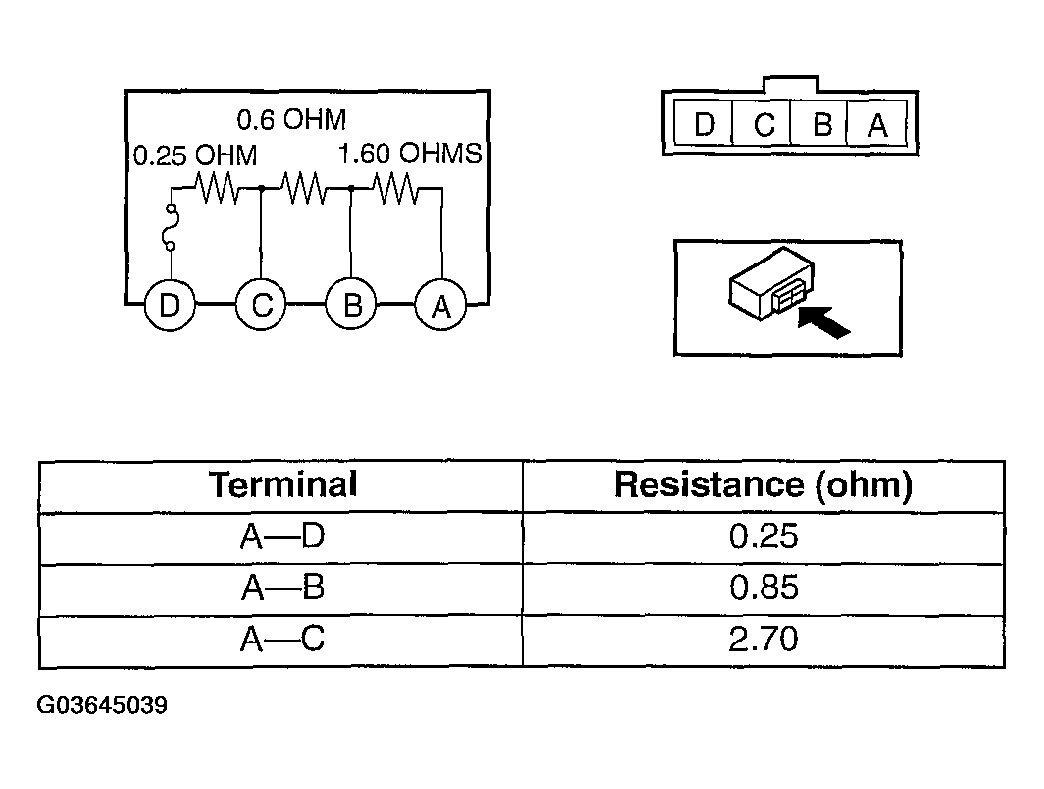

  Fig 1: Circuit Diagram Of Resistor
  Courtesy of MAZDA MOTORS CORP.
