Door Lock Control Module Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the voltage at the door lock control module terminals (other than terminals 1E, 2G, 2K and 2W) as indicated below.
- If not as specified, inspect the parts listed under "Action."
Disconnect the negative battery cable.
Disconnect the door lock control module connector and inspect for continuity between terminal 1E or 2W and the bracket.
Inspect for continuity at terminals 1E, 2G, 2K and 2W as indicated below.
If the parts and wiring harnesses are okay but the system still does not work properly, perform the troubleshooting.

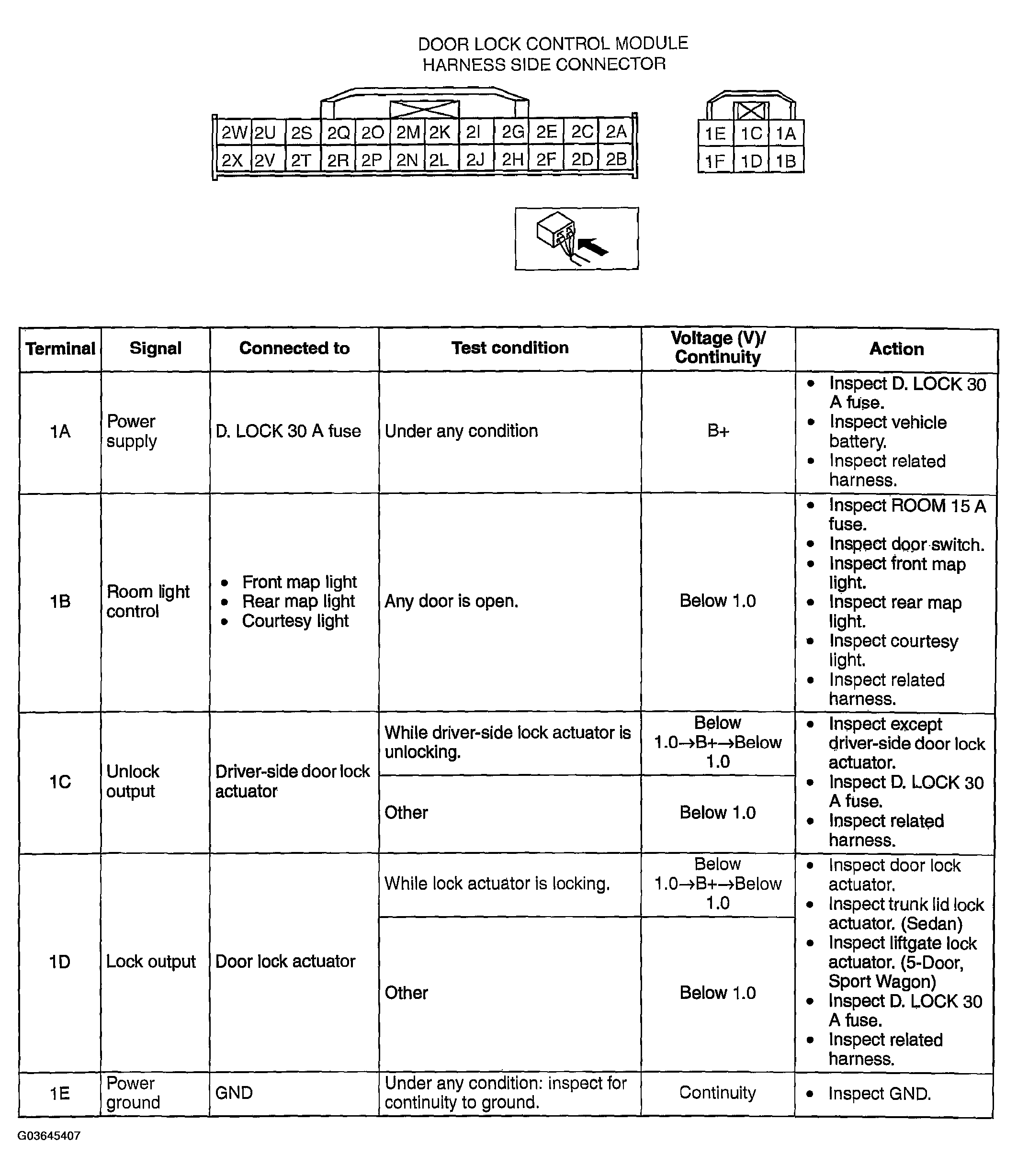

Fig 1: Door Lock Control Module Terminal voltage list (Reference) (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

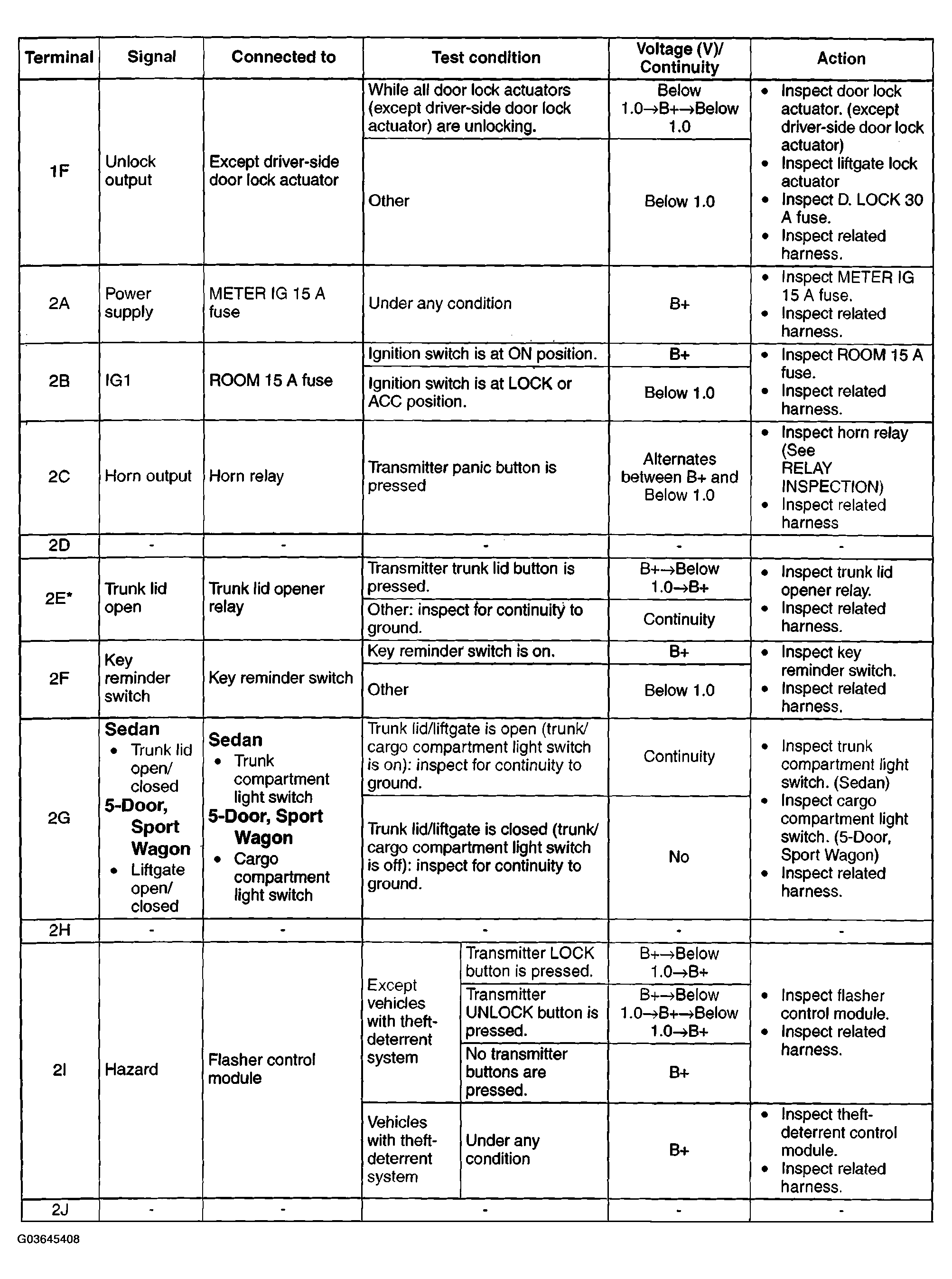

Fig 2: Door Lock Control Module Terminal voltage list (Reference) (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

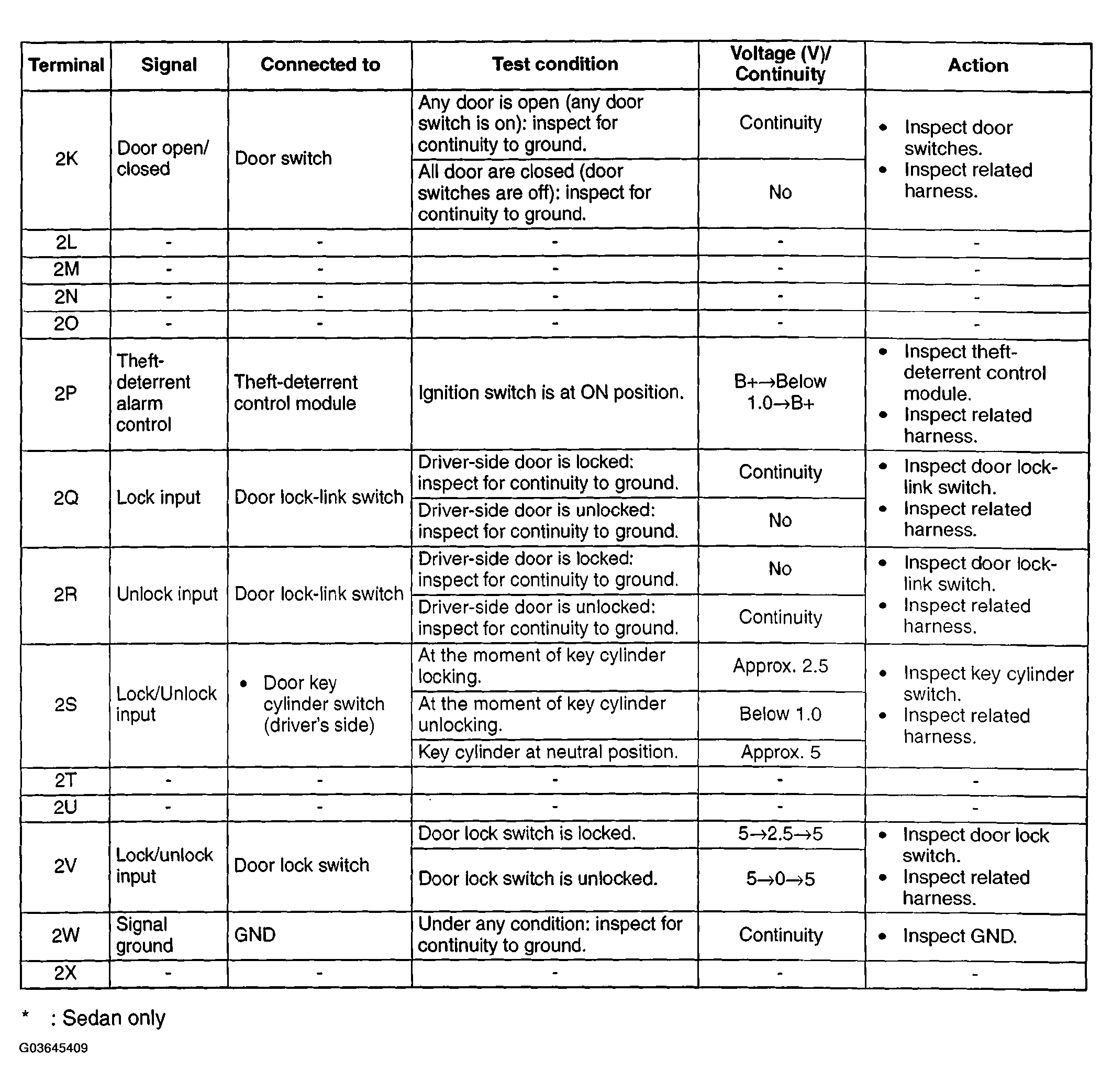

Fig 3: Door Lock Control Module Terminal voltage list (Reference) (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
