Theft-Deterrent Control Module Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

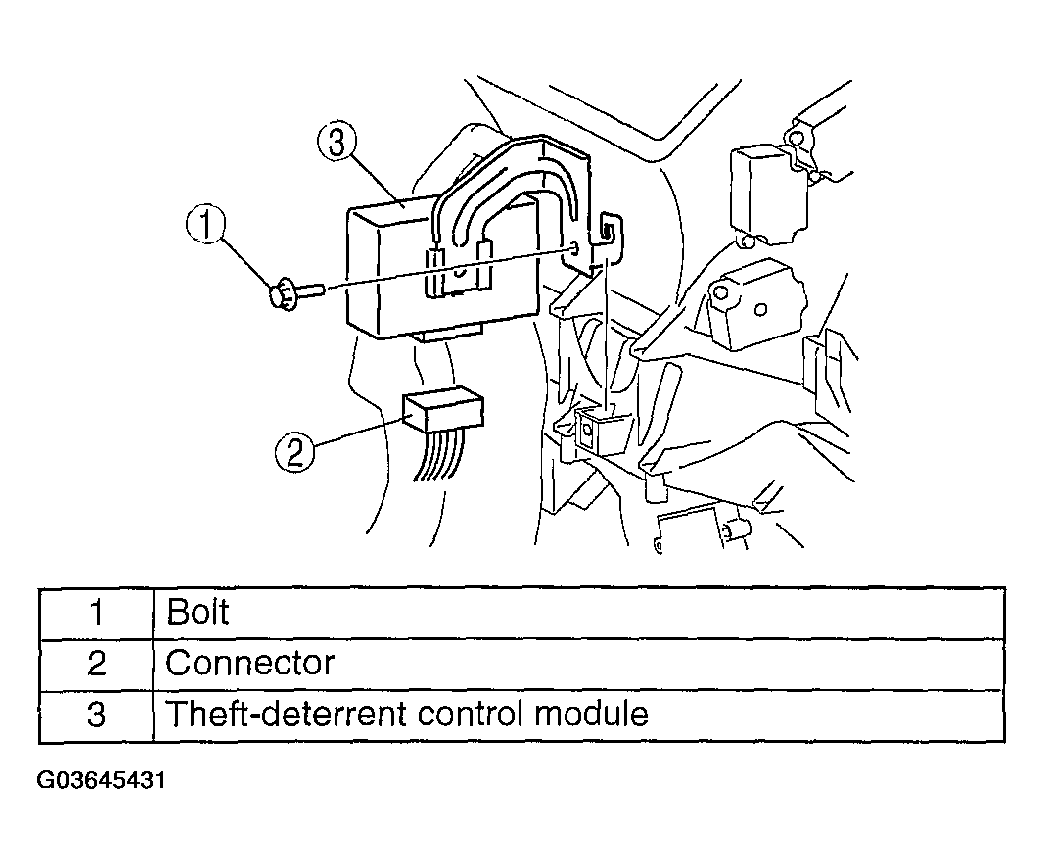

    Fig 1: Theft-Deterrent Control Module Removal Sequence
    G03645431Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
