Disc Pad (Front) Replacement

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

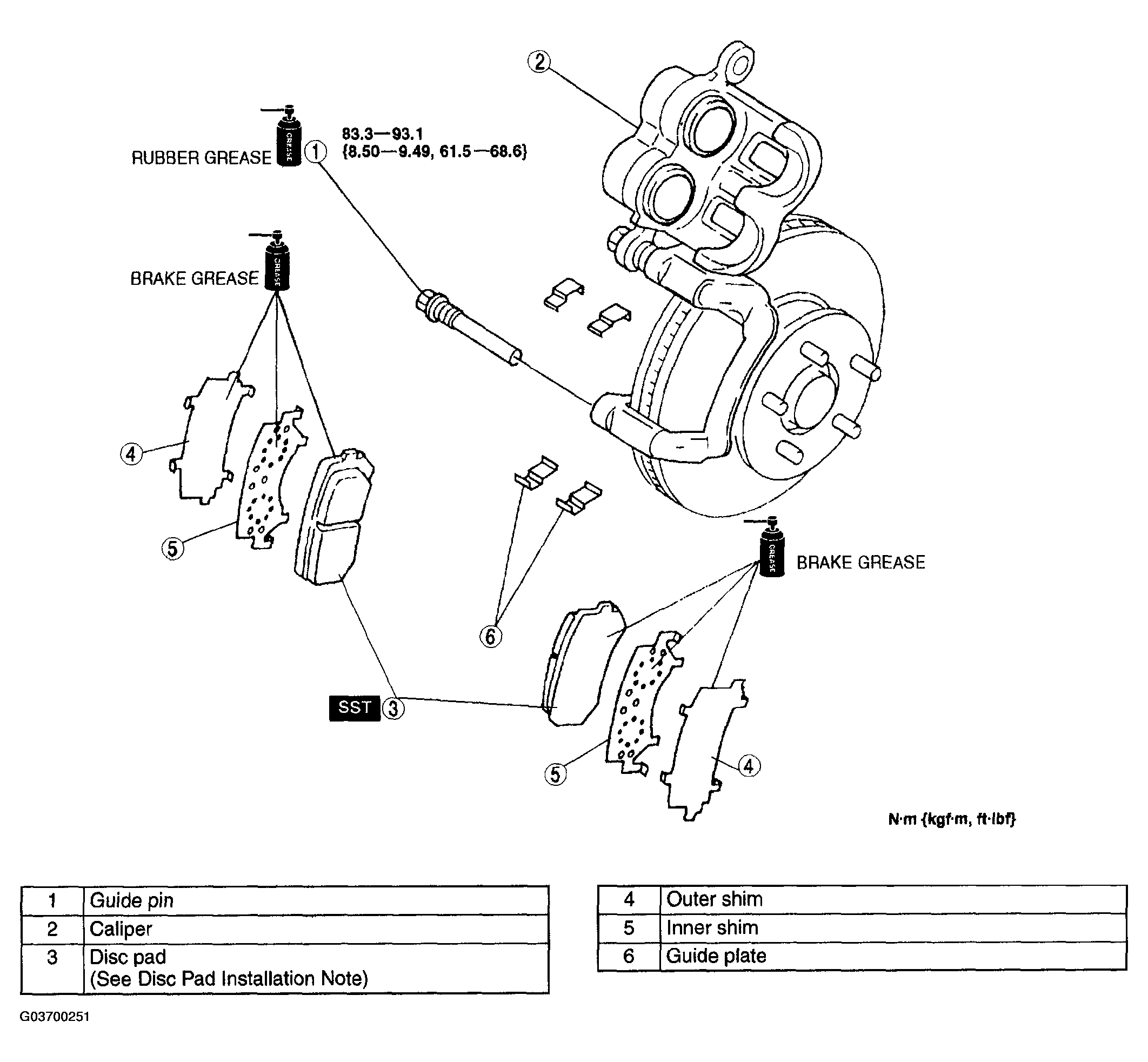

Fig 1: Removing Disc Pad (Front) - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
