Master Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  2. Remove the air filter. (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

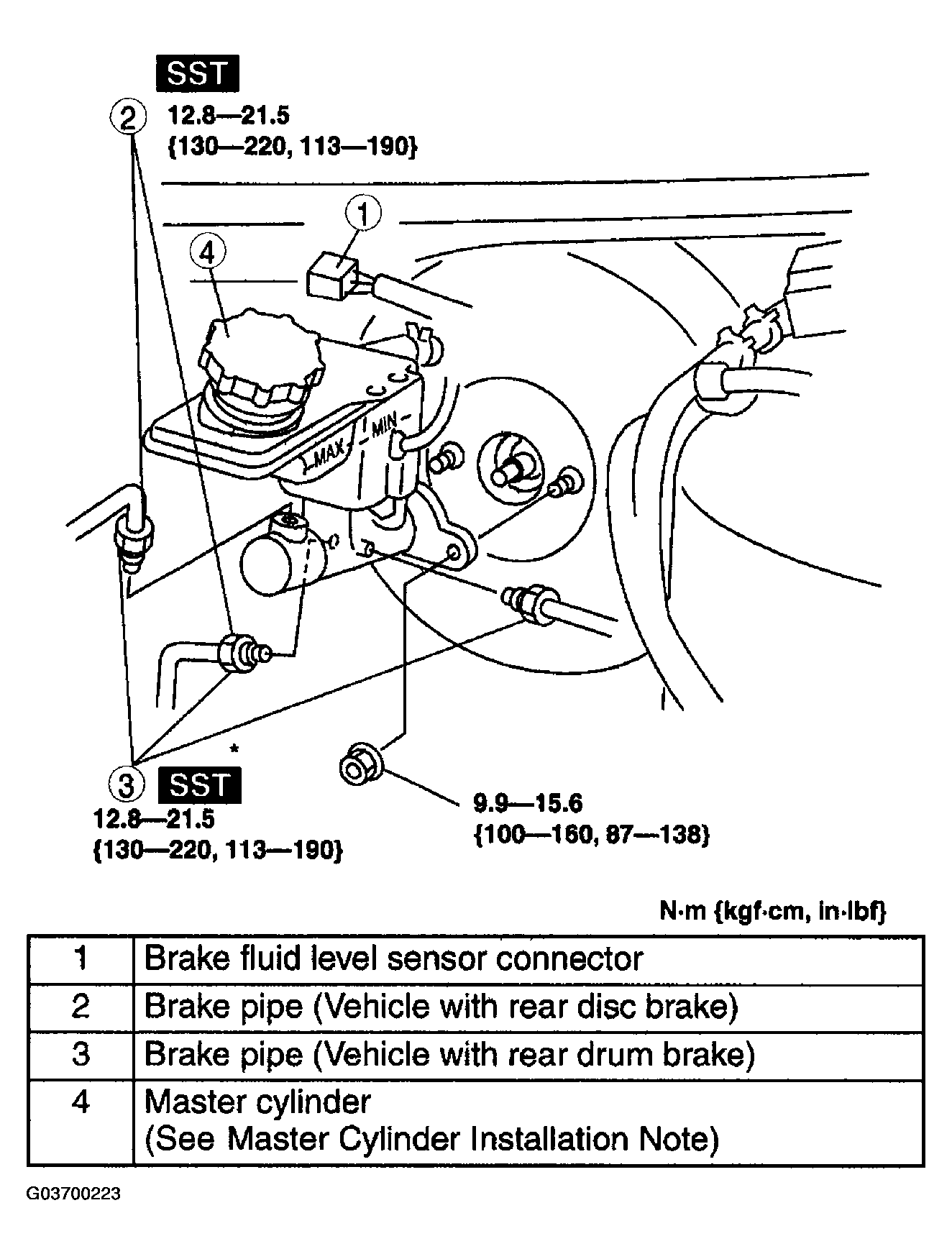

    Fig 1: Removing Master Cylinder Components In Order - With Torque Specifications
    G03700223Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
