Power Brake Unit Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
  2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

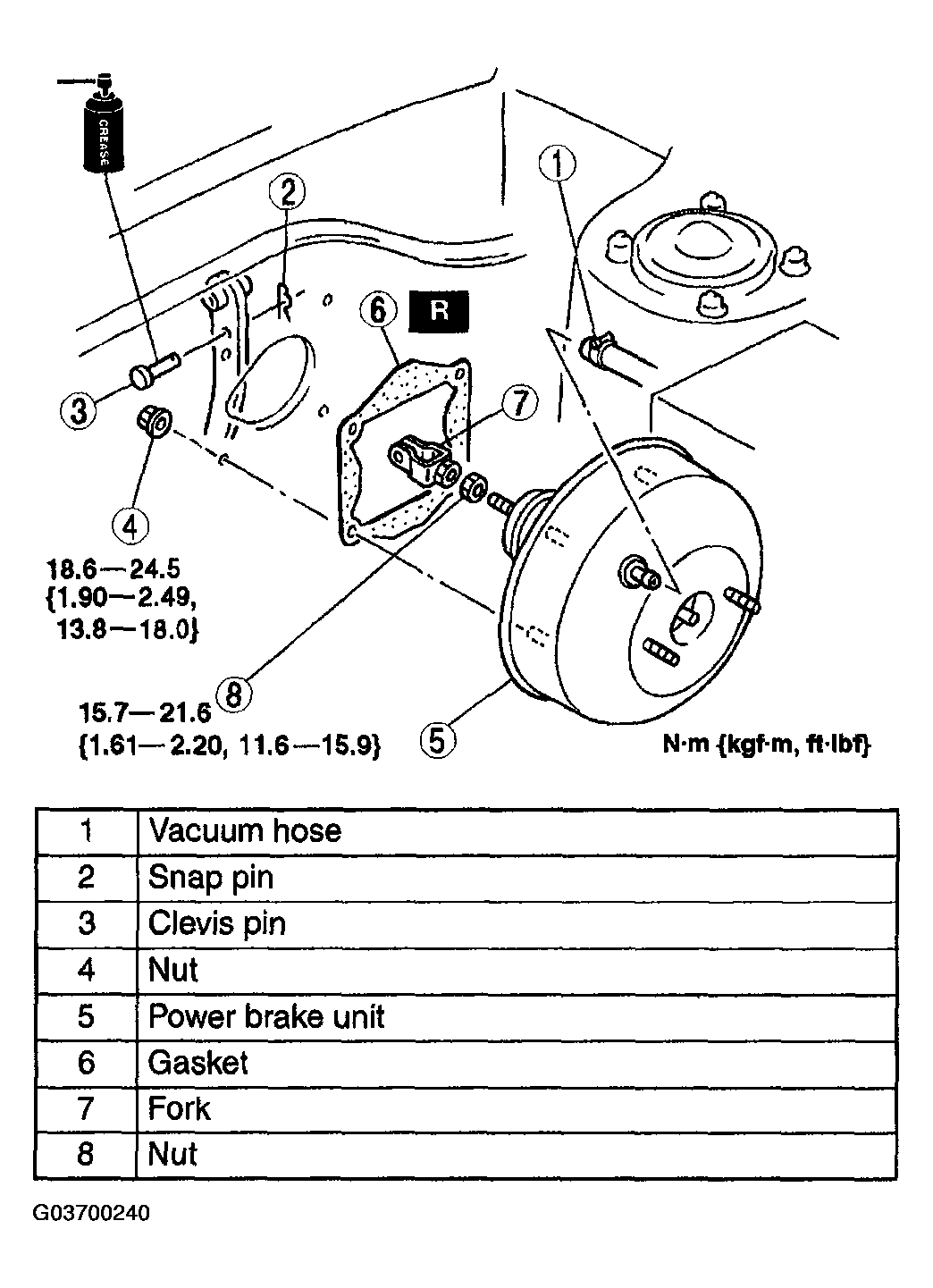

    Fig 1: Removing Power Brake Unit Components - With Torque Specifications
    G03700240Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
