Rear Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

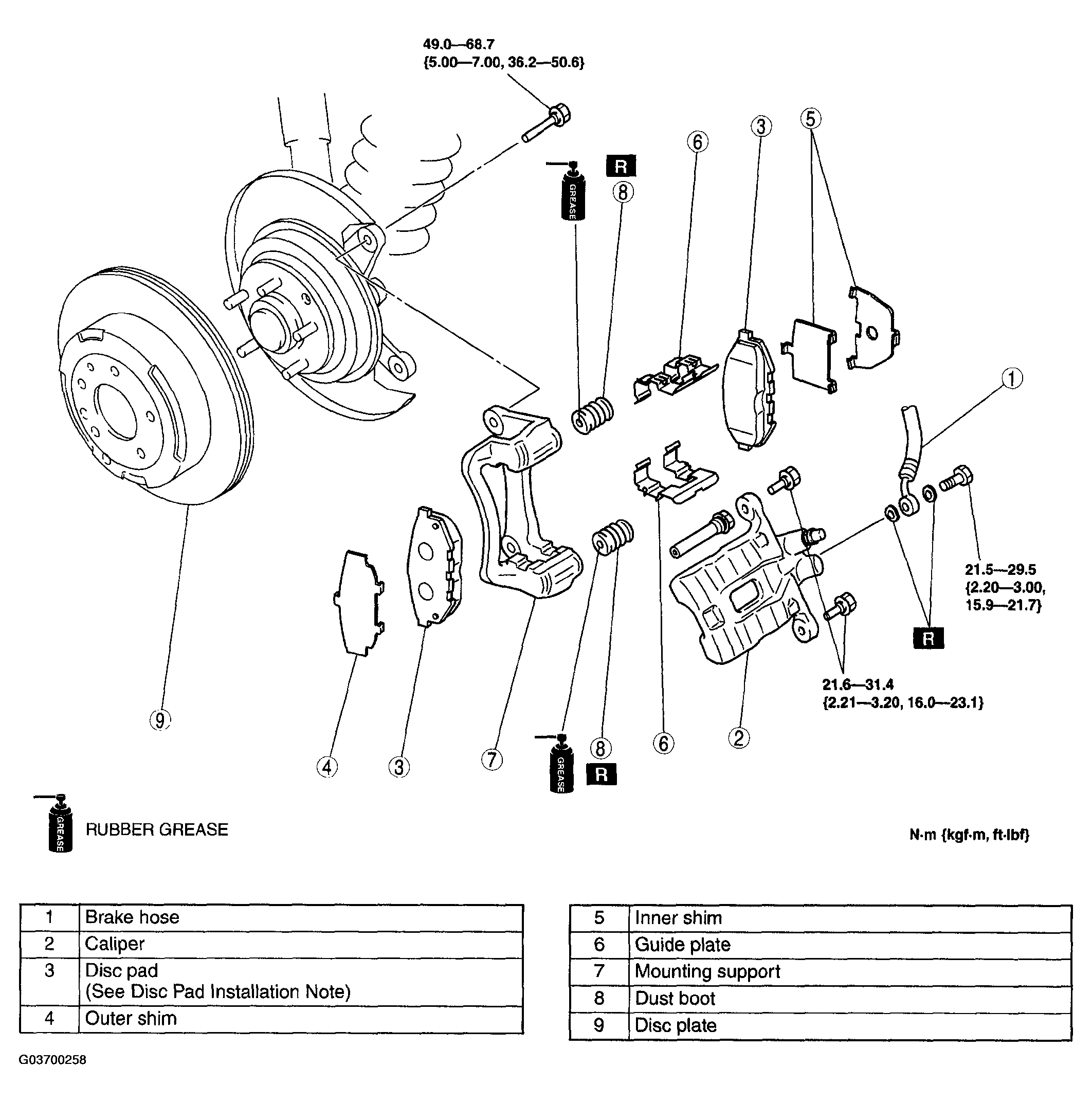

Fig 1: Removing Rear Brake (Disc) - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, do the following.
1. Depress the brake pedal a few times. Then verify that the brakes do not drag.
2. Inspect the pedal-to-floor clearance.
3. Inspect the parking brake lever stroke.
