Resistor Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the resistance between the resistor terminals is as indicated in the table.
    • If there is any malfunction, replace the resistor.

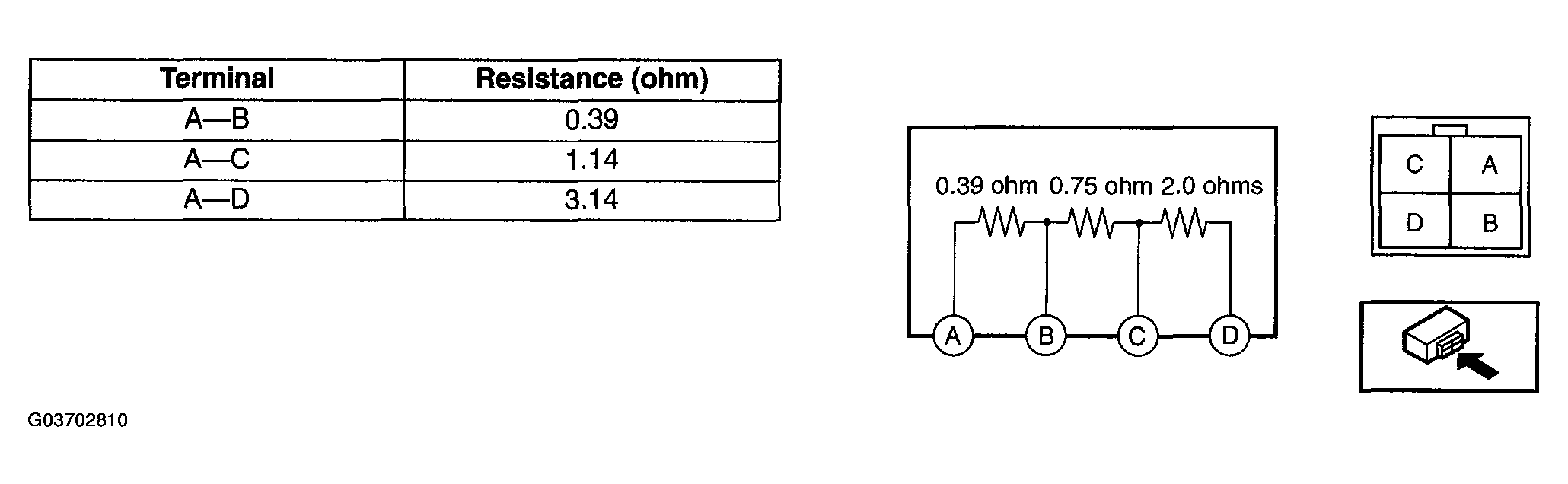

    Fig 1: Identifying Resistor Terminals
    G03702810Courtesy of MAZDA MOTORS CORP.
