Center Panel Module Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated in the table.

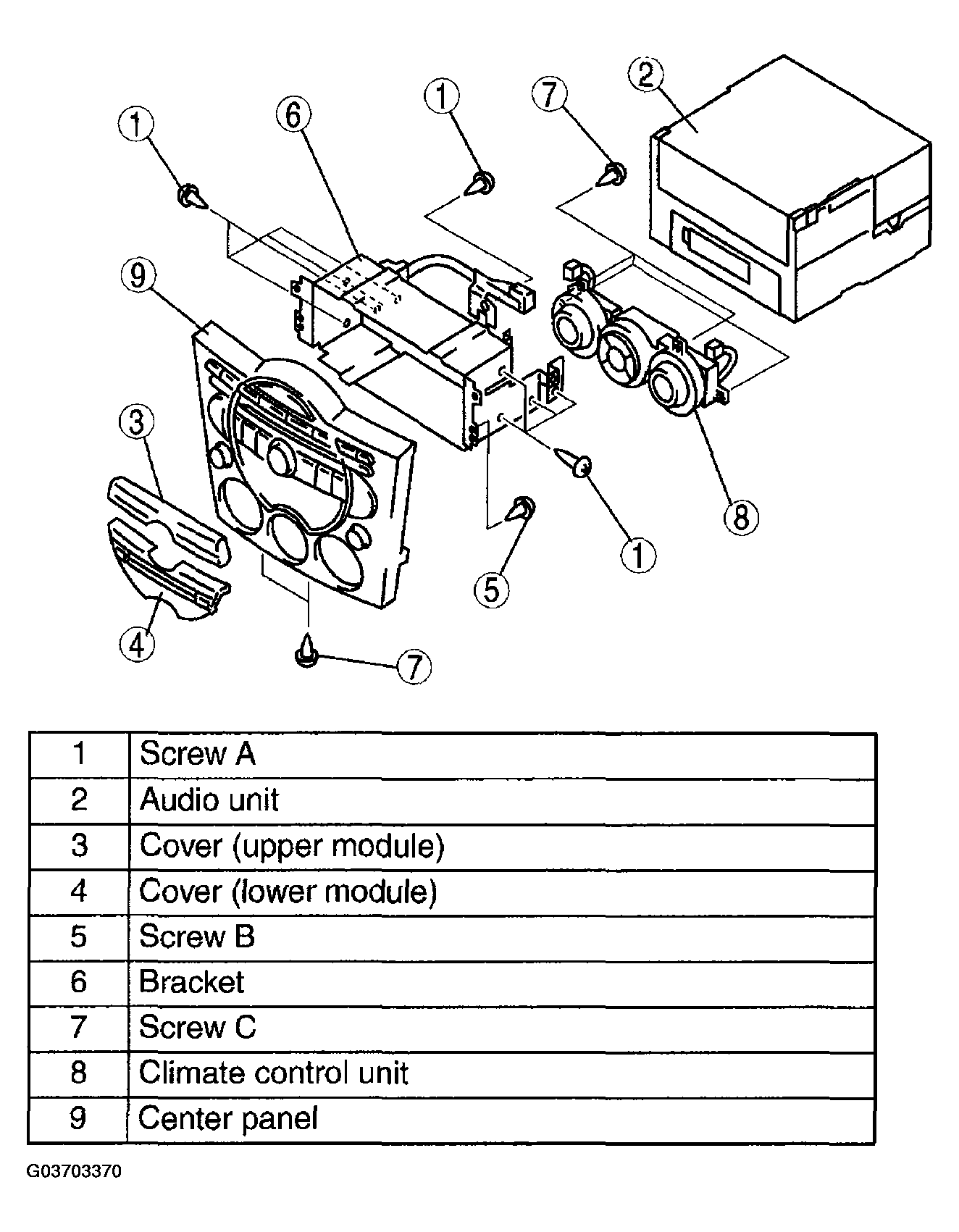

Fig 1: Identifying Center Panel Module Disassembly/Assembly
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
